Convertible Top Control (As of 09/01)

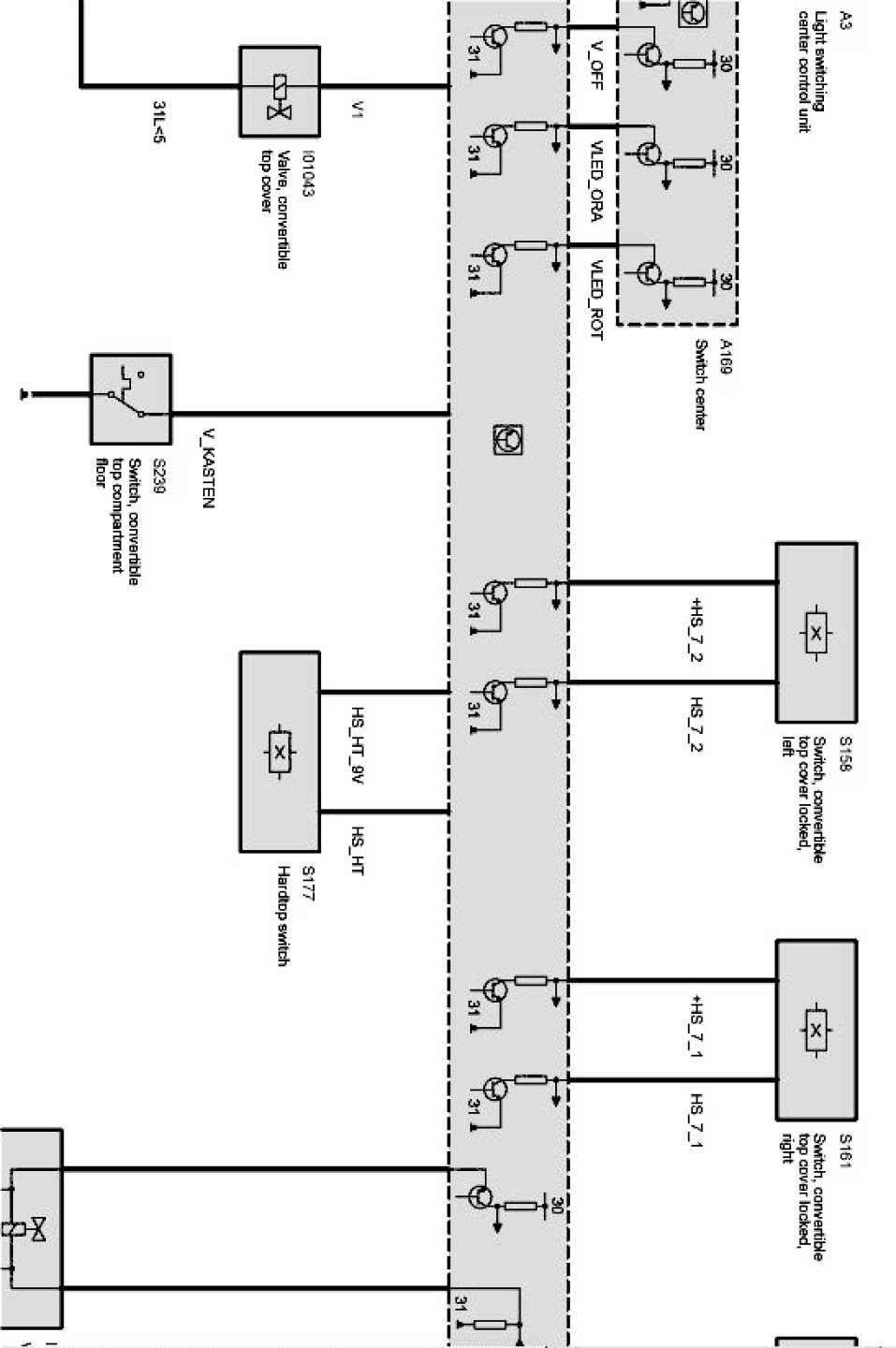

Convertible top control Part 1:

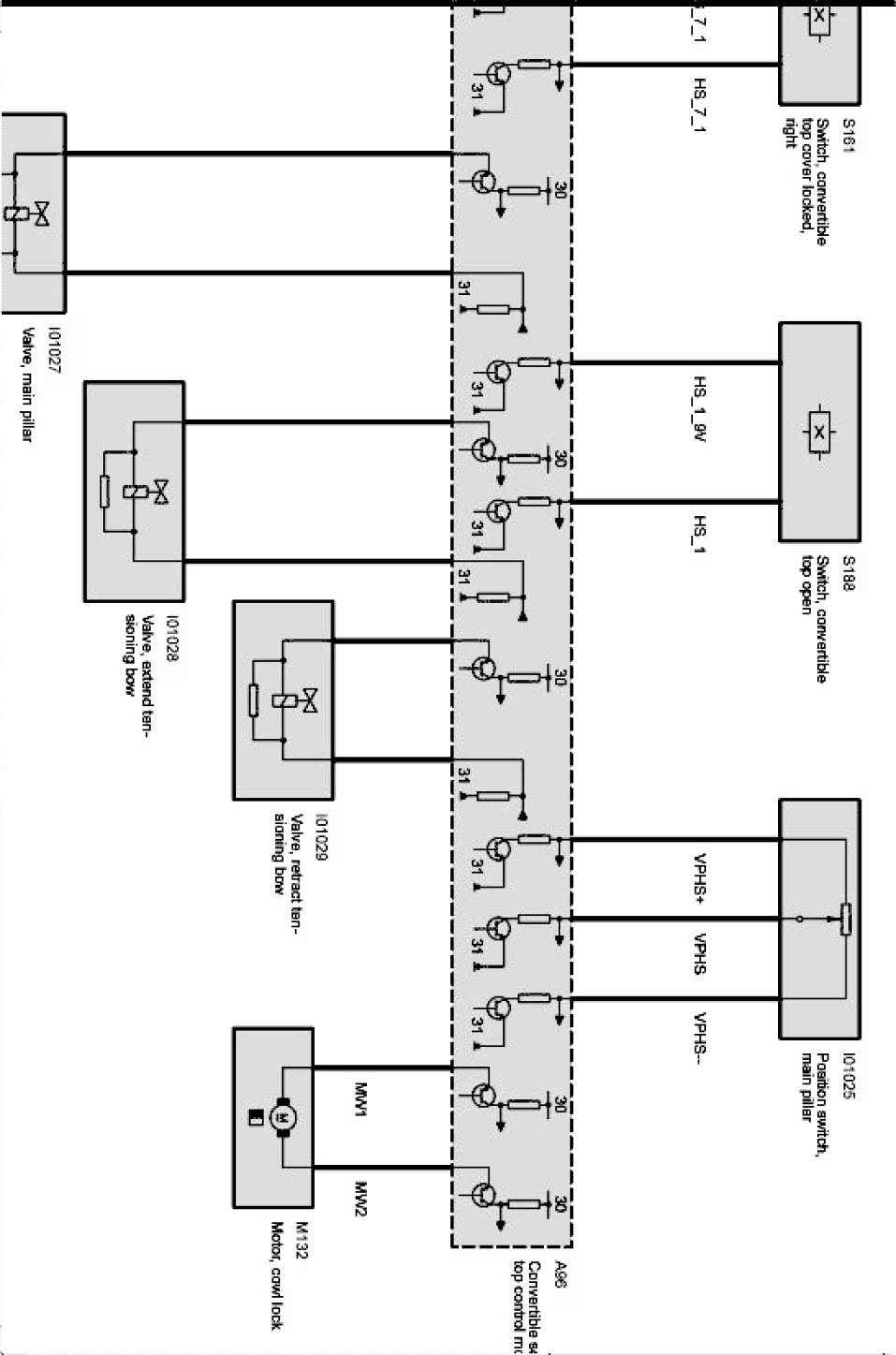

Convertible top control Part 2:

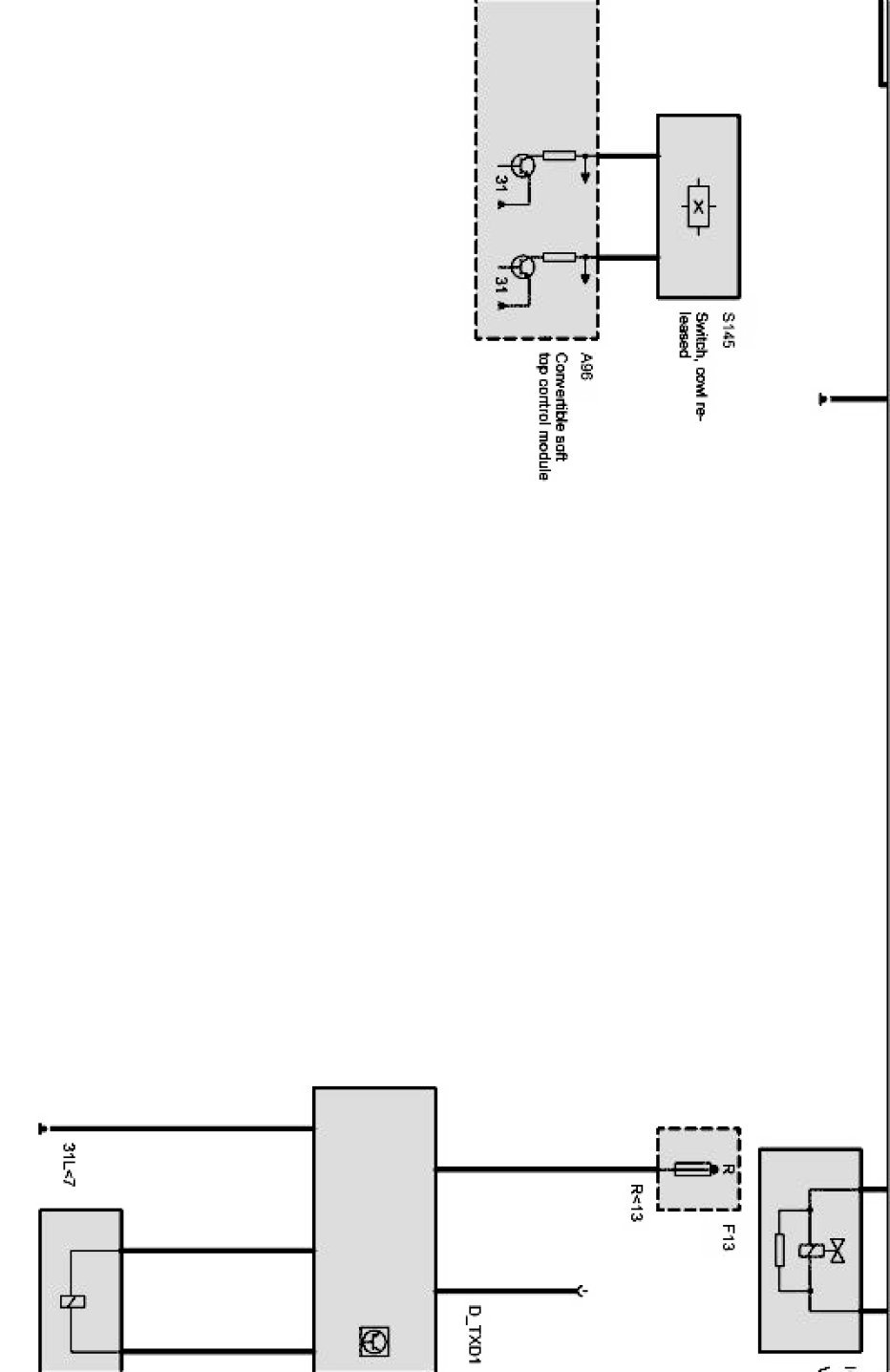

Convertible top control Part 3:

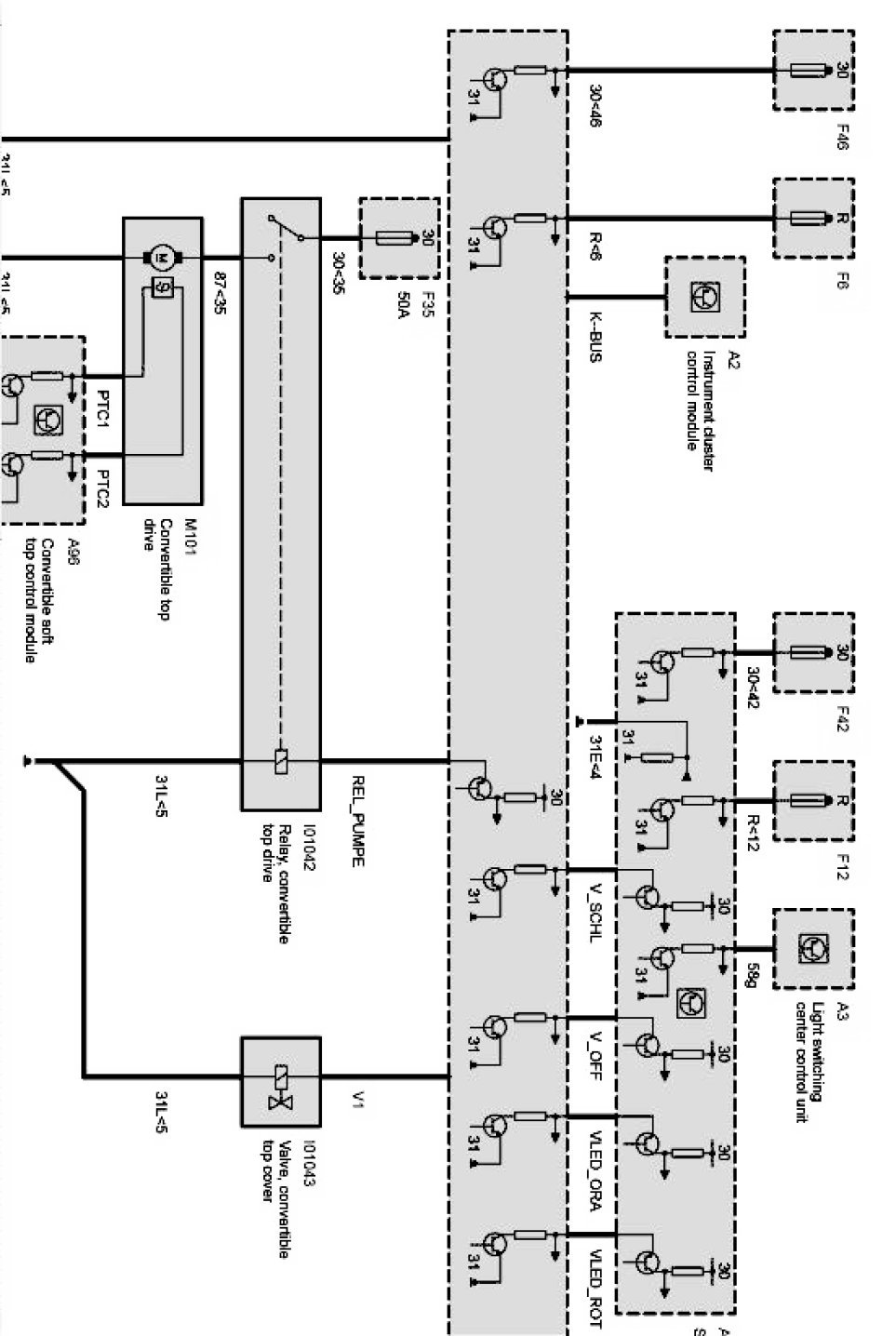

Convertible top control Part 4:

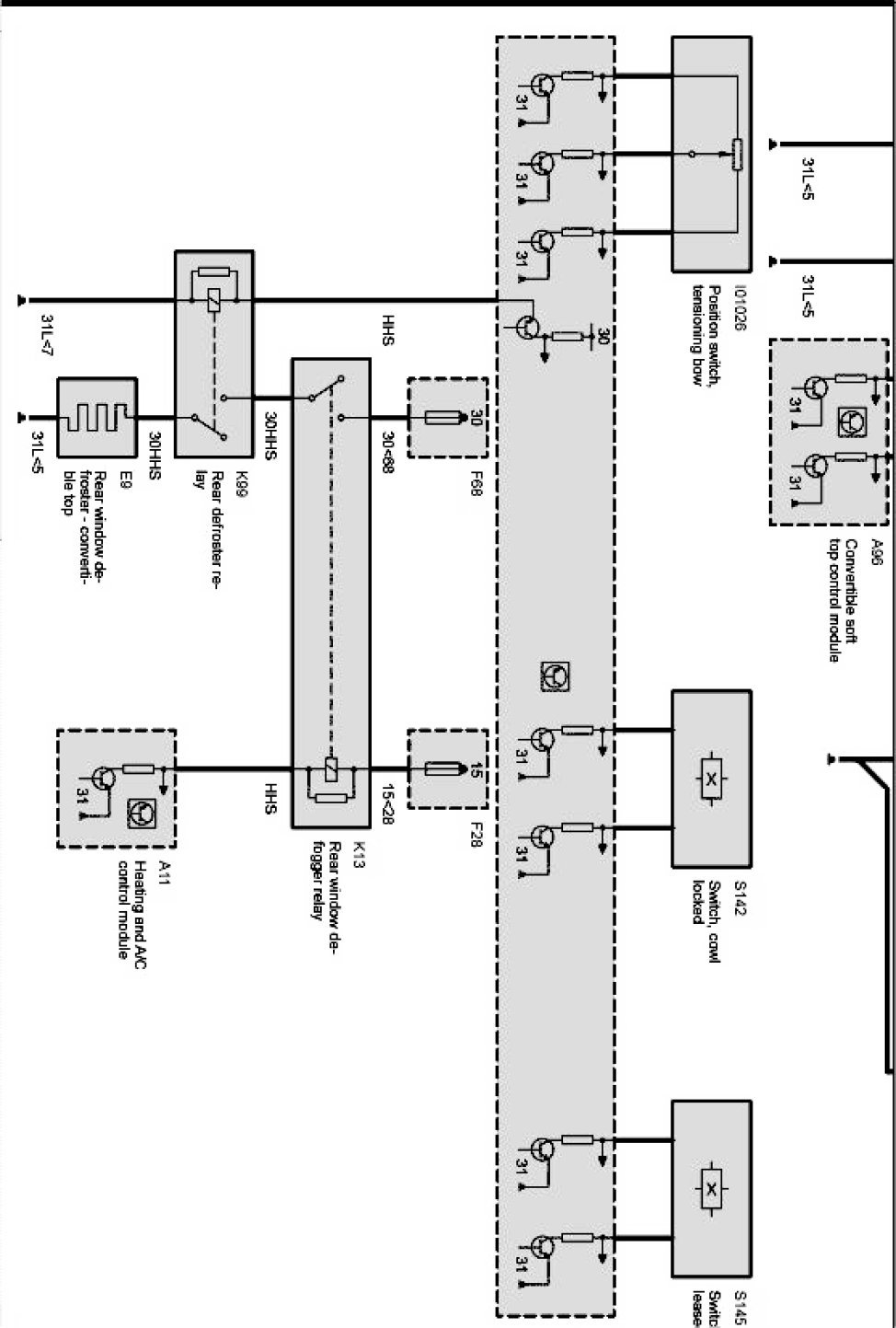

Convertible top control Part 5:

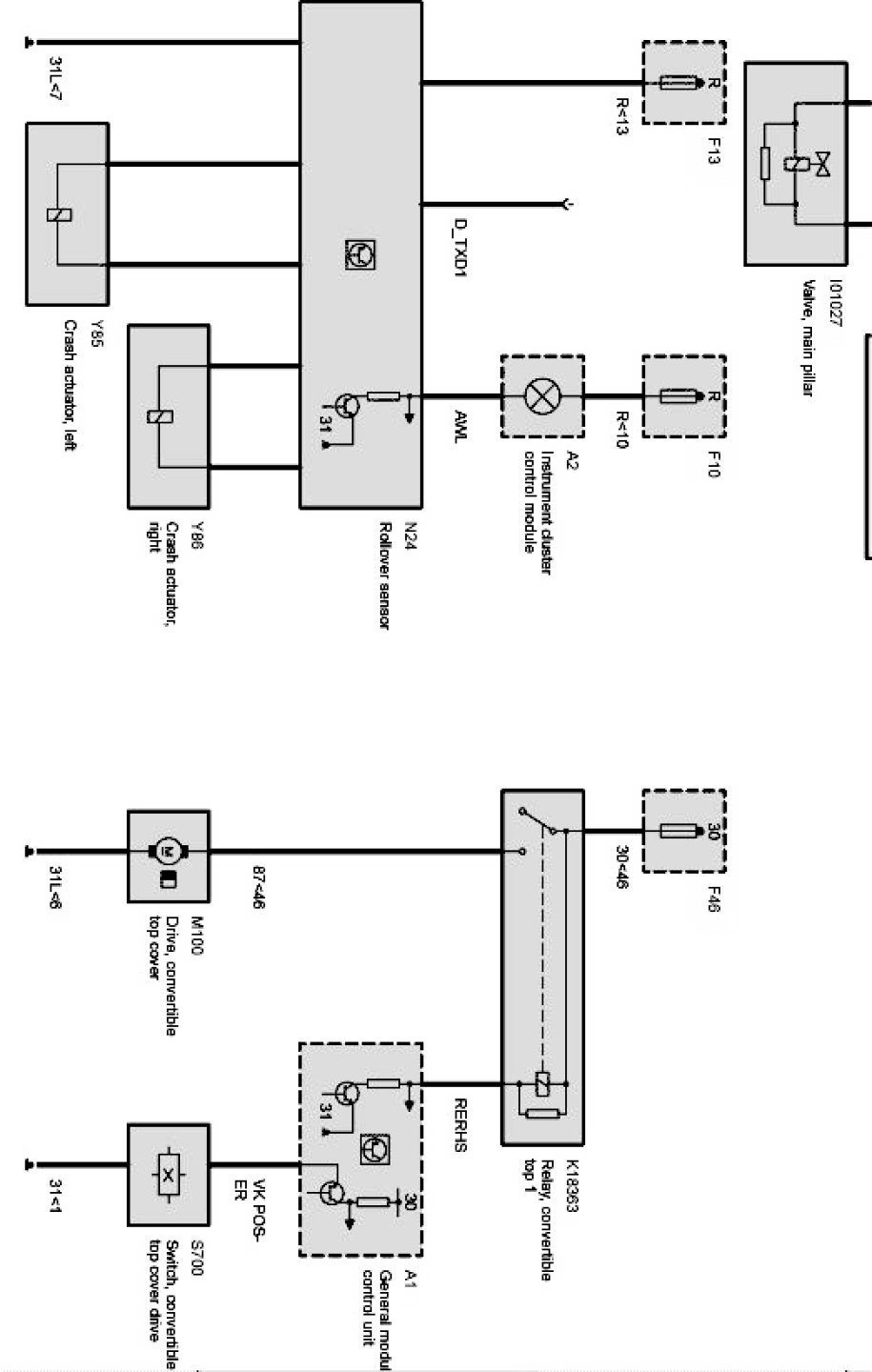

Convertible top control Part 6:
