Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Antitheft Alarm System >> Siren >> Antitheft Alarm System (Convertible)

Antitheft Alarm System (Convertible)

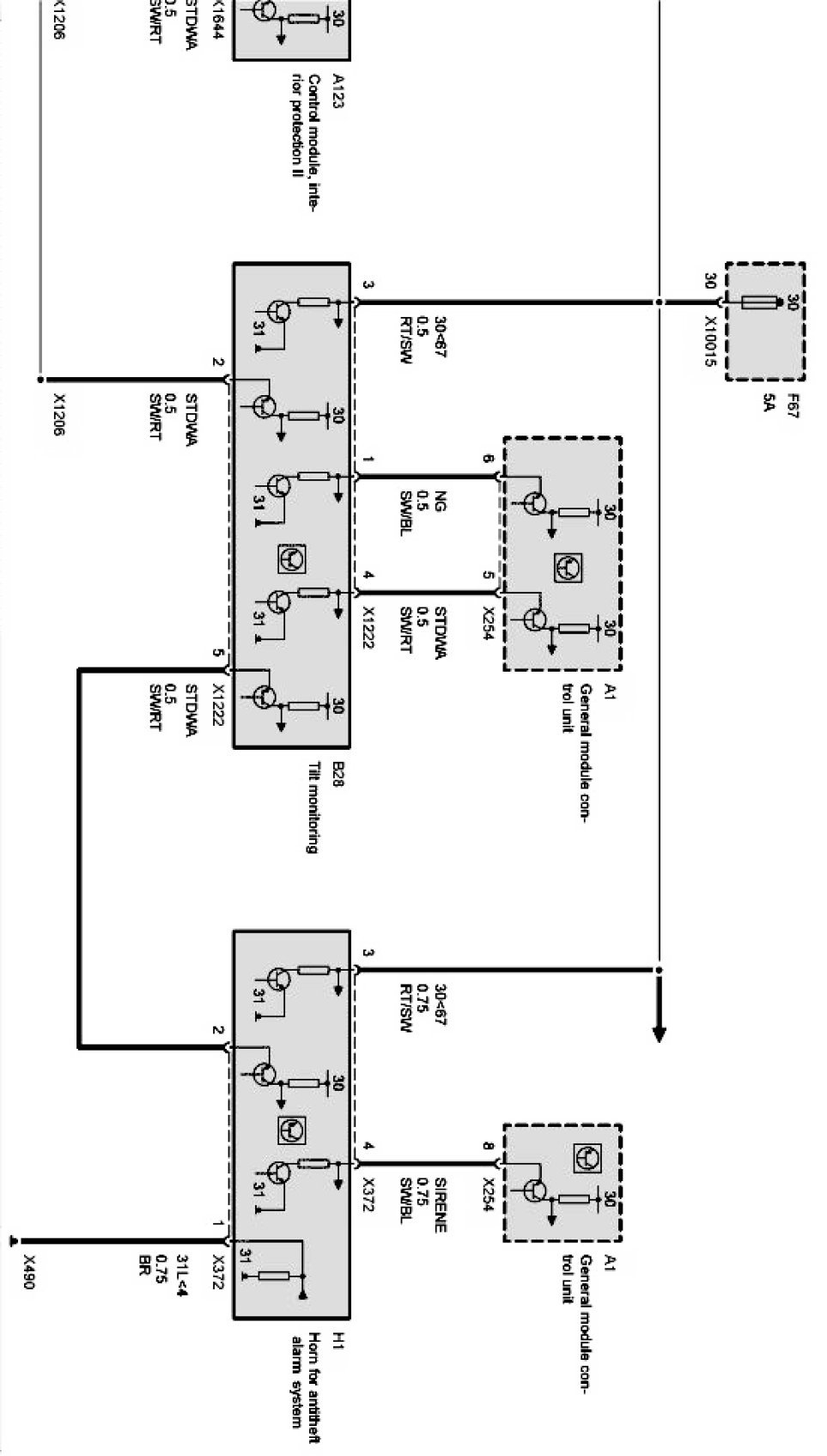

Burglar-alarm system Part 1:



Burglar-alarm system Part 2:
