Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Interior Lights >> Interior Lights/Vehicle Interior (Convertible)

Interior Lights/Vehicle Interior (Convertible)

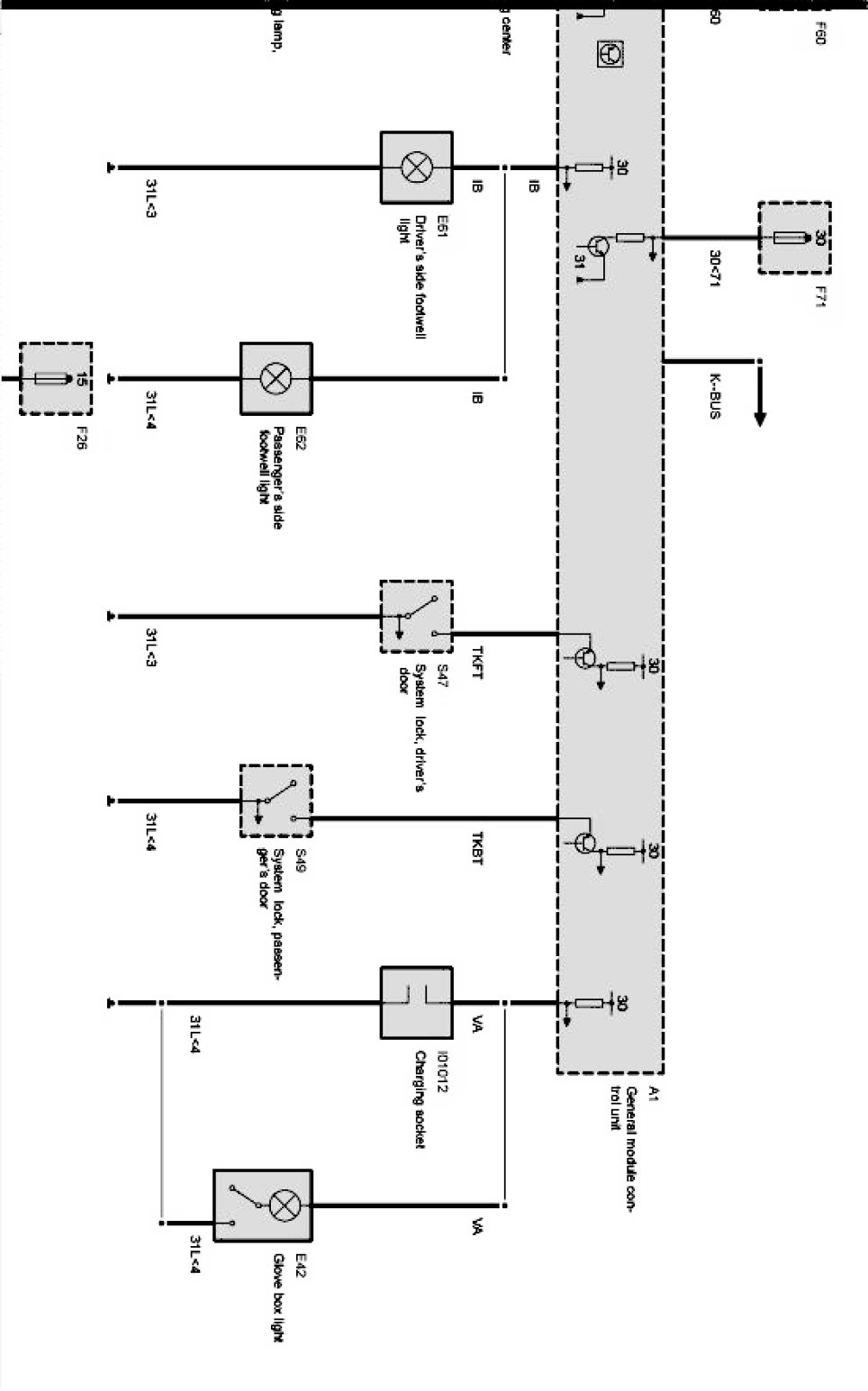

Interior lights/vehicle interior Part 1:

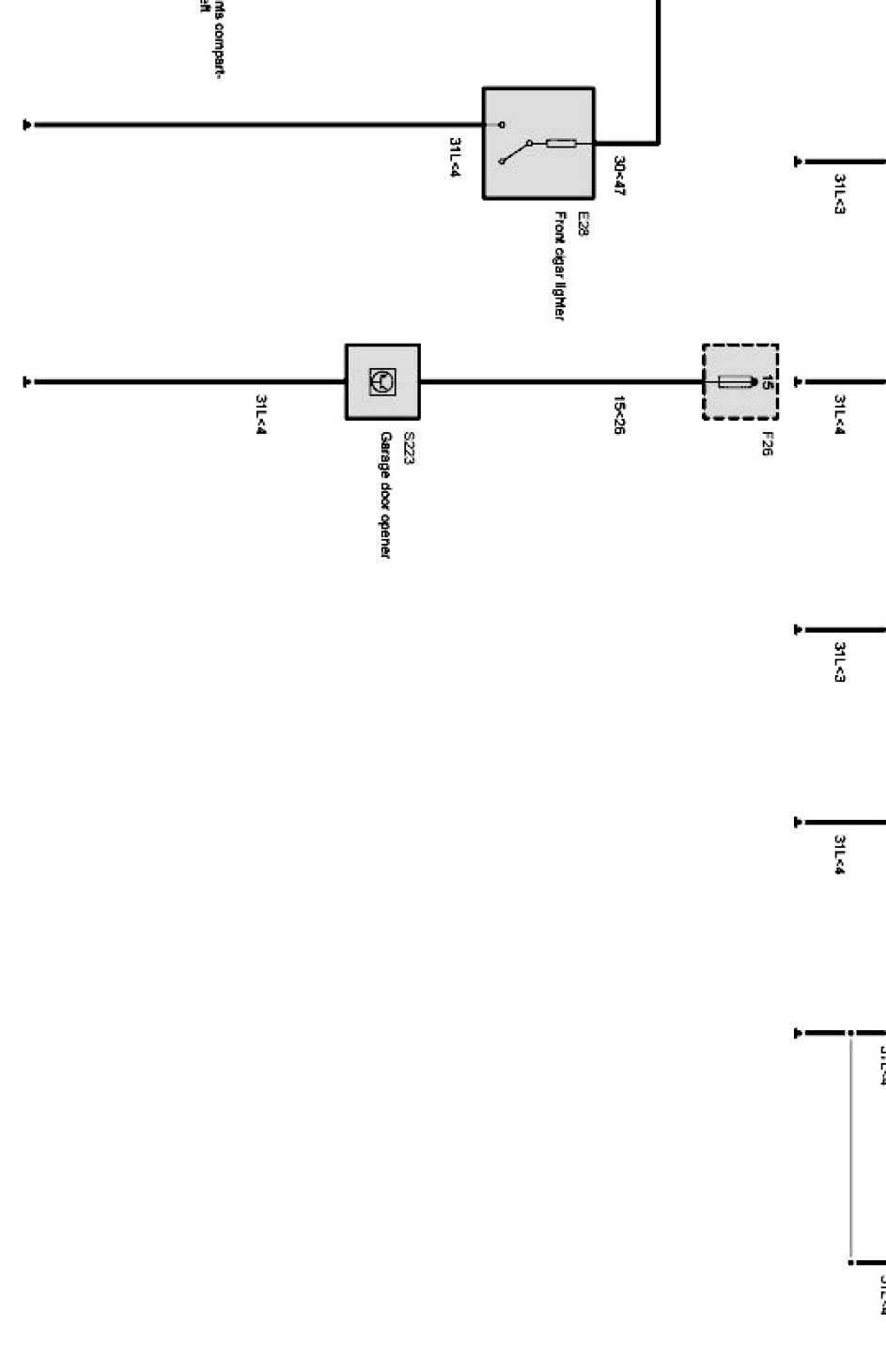

Interior lights/vehicle interior Part 2:

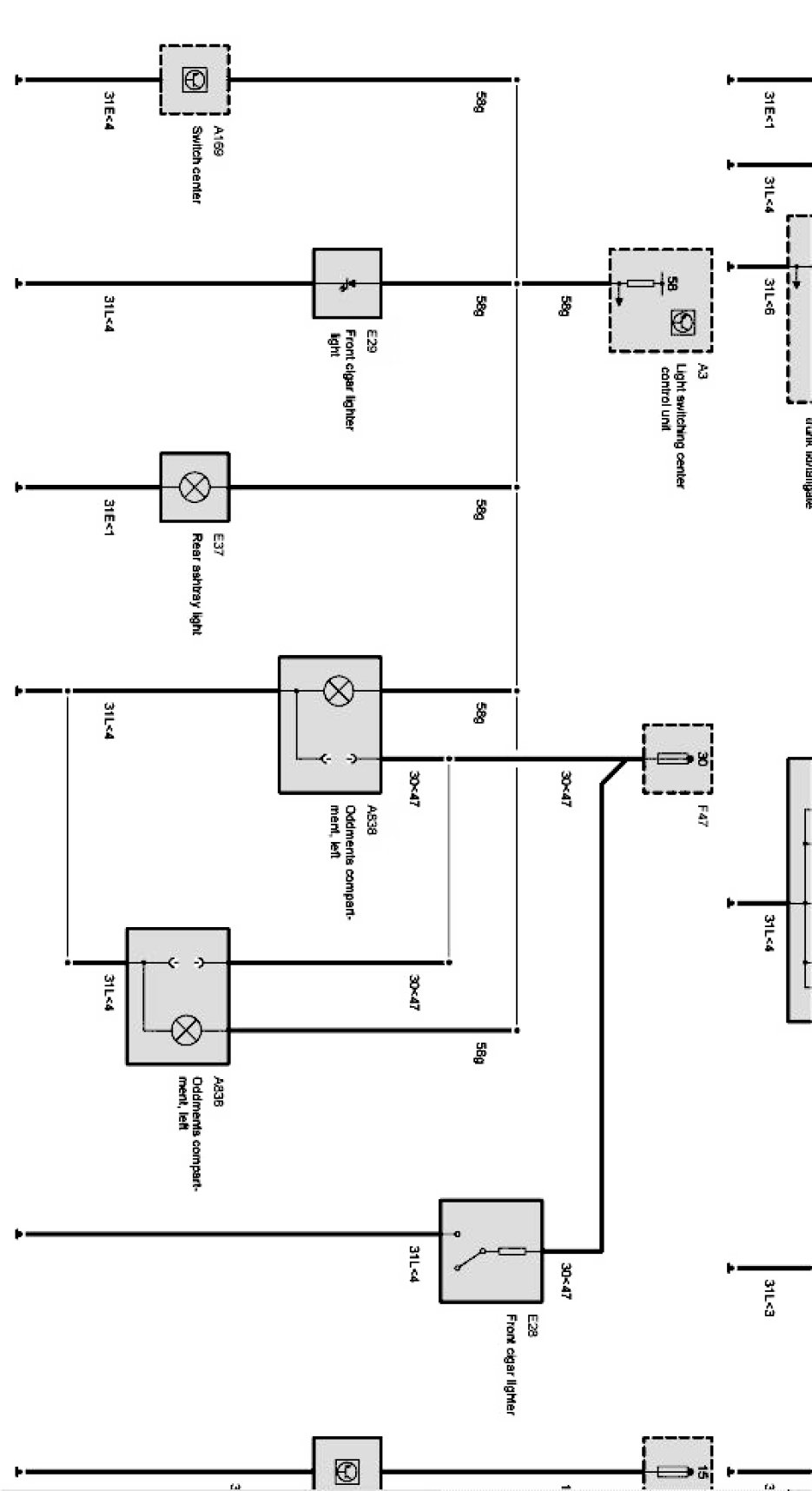

Interior lights/vehicle interior Part 3:

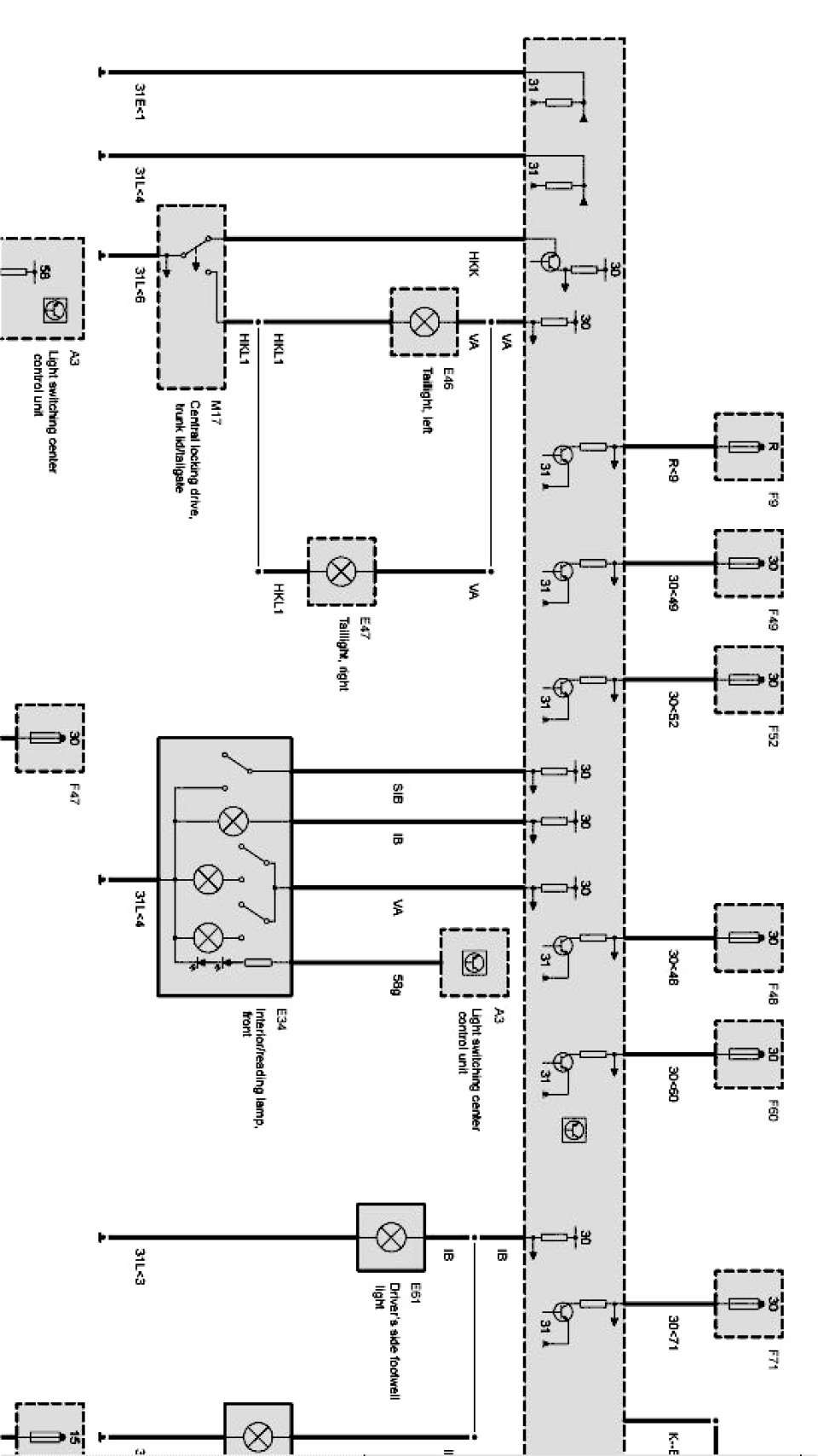

Interior lights/vehicle interior Part 4:
