Automatic Headlight Vertical Aim Control (Xenon Lights)

Automatic headlight vertical aim control Part 1:

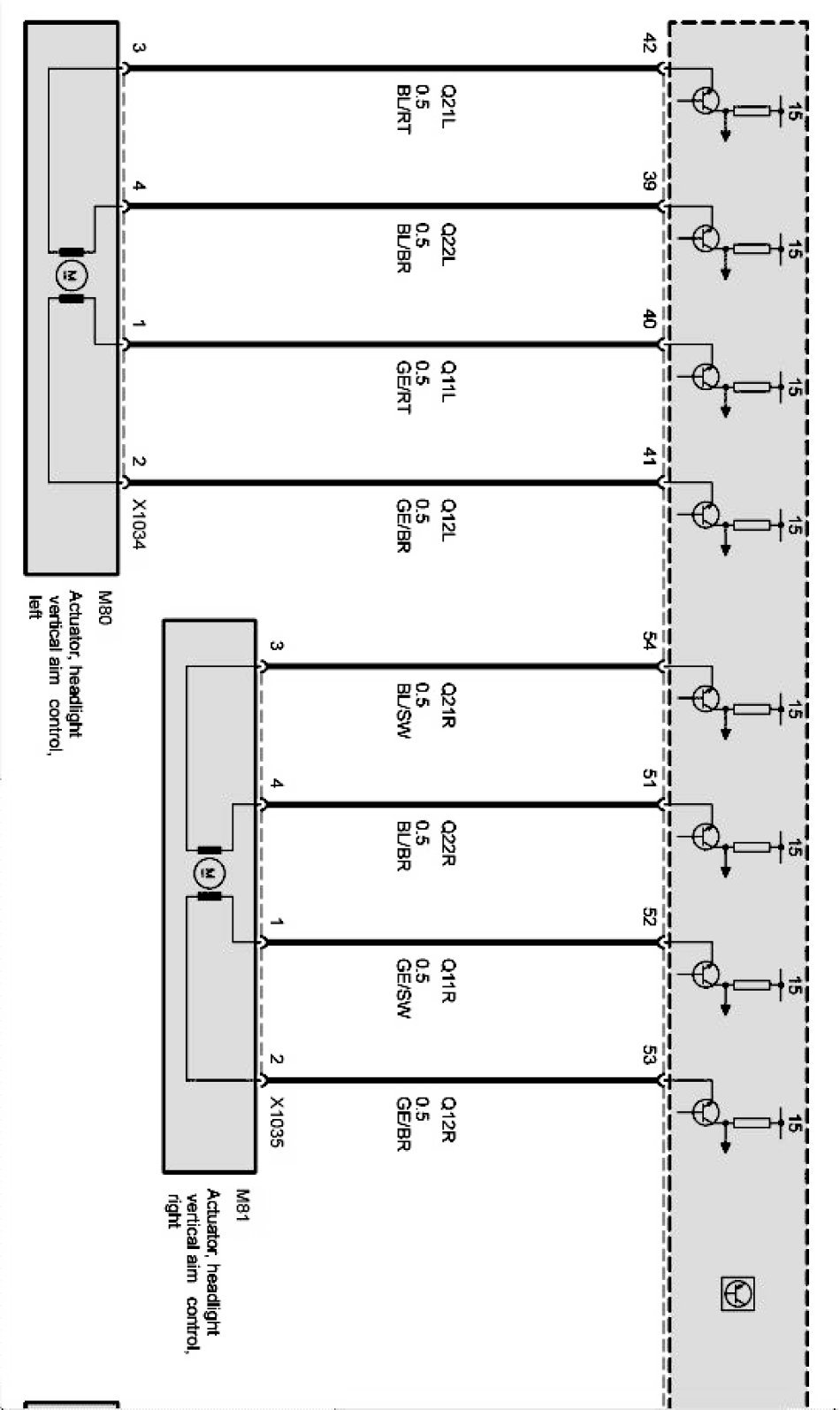

Automatic headlight vertical aim control Part 2:
