Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control) >> Temperature Control >> Solar Sensor ((As of 09/99 With IHKA Integrated Automatic Heating/A/C) or (IHKA Integrated Automatic Heating/A/C W/ Touring))

Solar Sensor ((As of 09/99 With IHKA Integrated Automatic Heating/A/C) or (IHKA Integrated Automatic Heating/A/C W/ Touring))

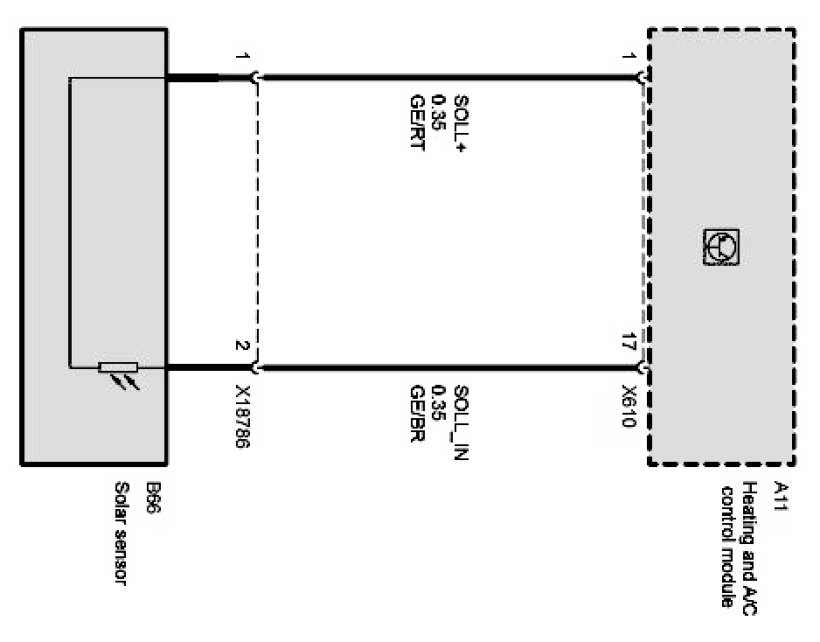

Solar sensor:
