Automatic Air Recirculation Sensor (IHKA Integrated Automatic Heating/A/C)

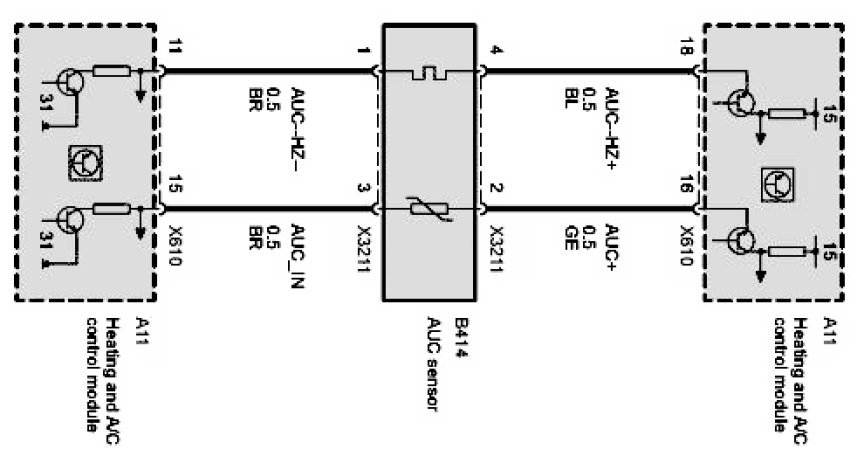

Automatic air recirculation sensor:
