Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Displays and Information >> Acoustic Warning >> Chime Module >> Chime Module (Without SMG Sequential M Transmission As of 09/01)

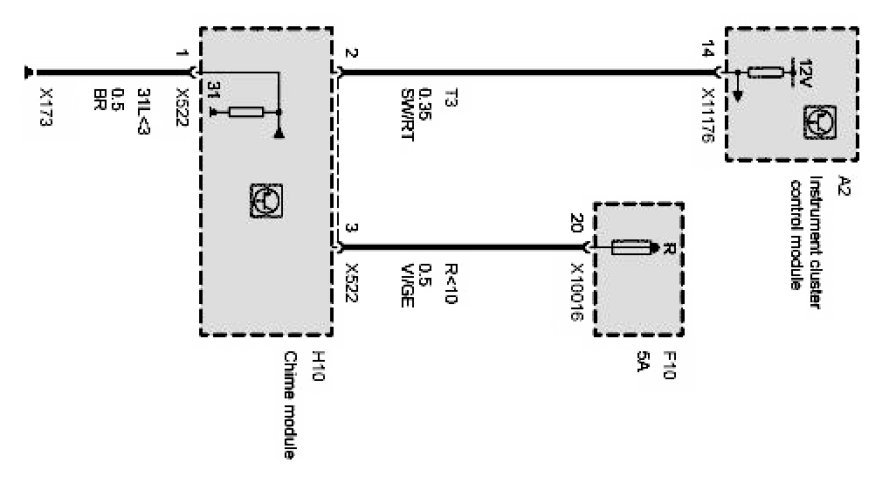

Chime Module (Without SMG Sequential M Transmission As of 09/01)

Gong:
