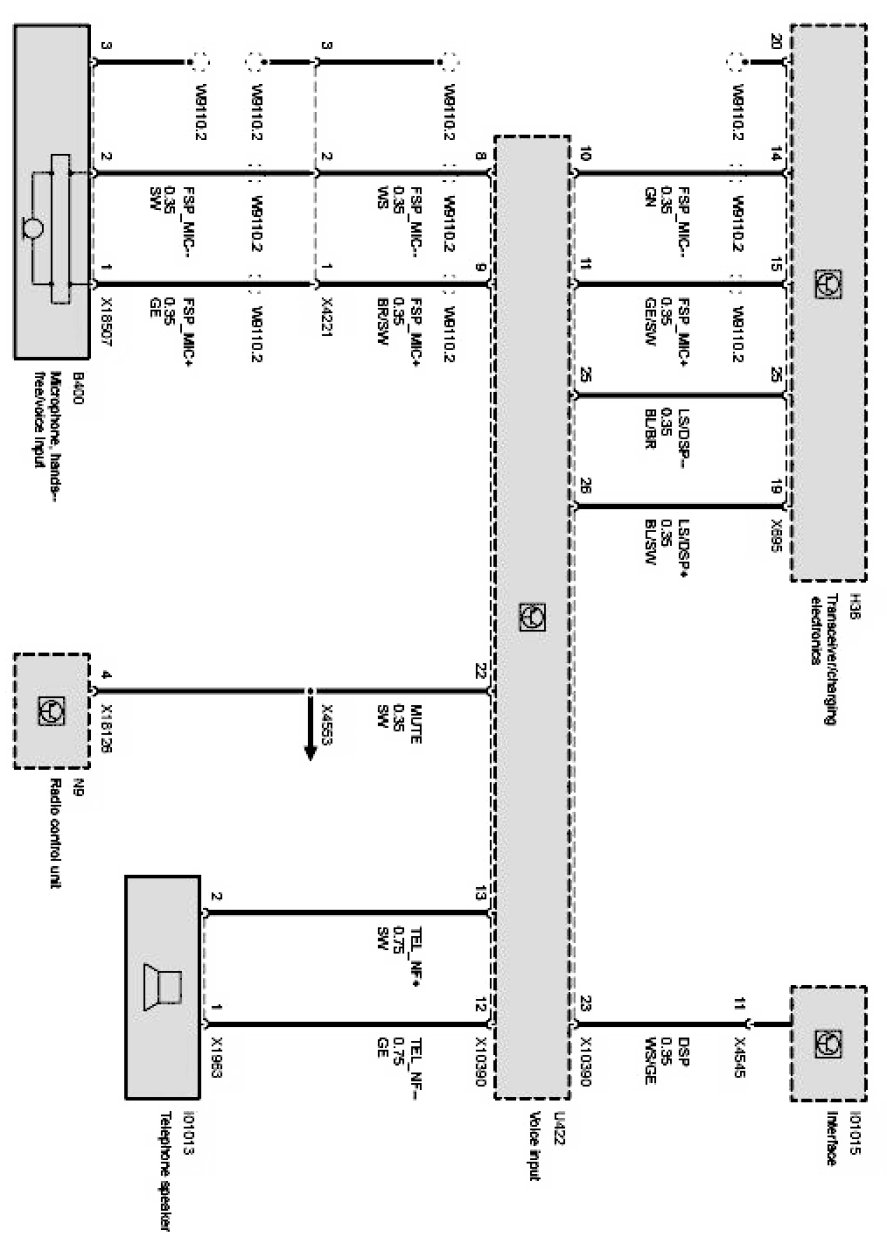

Voice Input System (Fixed Mounting, Motorola (Phase V+) With SES Language Input System)

Voice input system:
