Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Communication >> Voice Input (SES Language-Input System) >> Microphone >> Hands-Free Telephone (Fixed Mounting, Motorola (Phase V+) Without SES Language-Input System)

Hands-Free Telephone (Fixed Mounting, Motorola (Phase V+) Without SES Language-Input System)

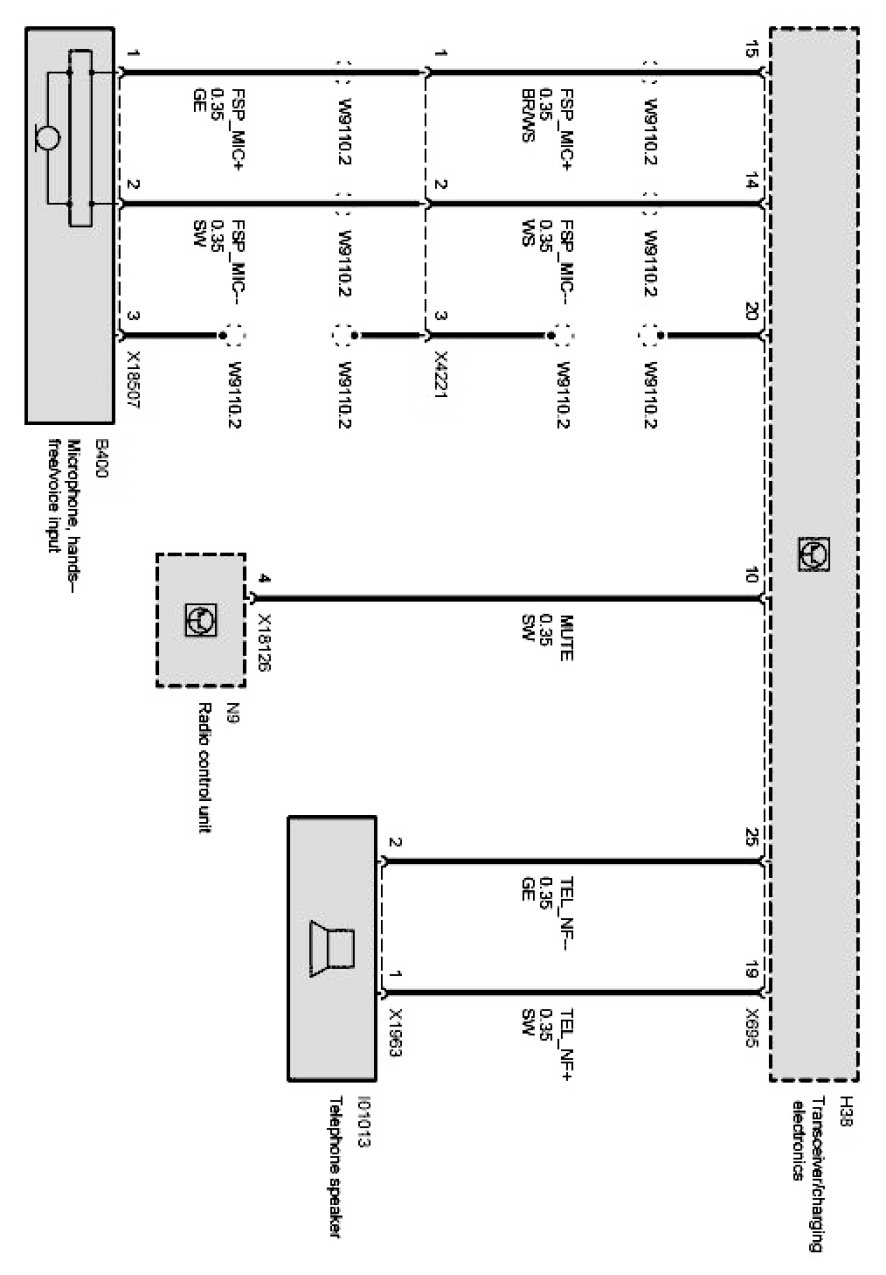

Hands-free telephone:
