Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Communication >> Telecommunication (TEL or BIT or TCU Telematic Control Unit or ULF Universal Charging and Hands-Free Facility) >> Telephone Provisions >> Interface, Telephone Provisions/Interface (As of 09/99)

Interface, Telephone Provisions/Interface (As of 09/99)

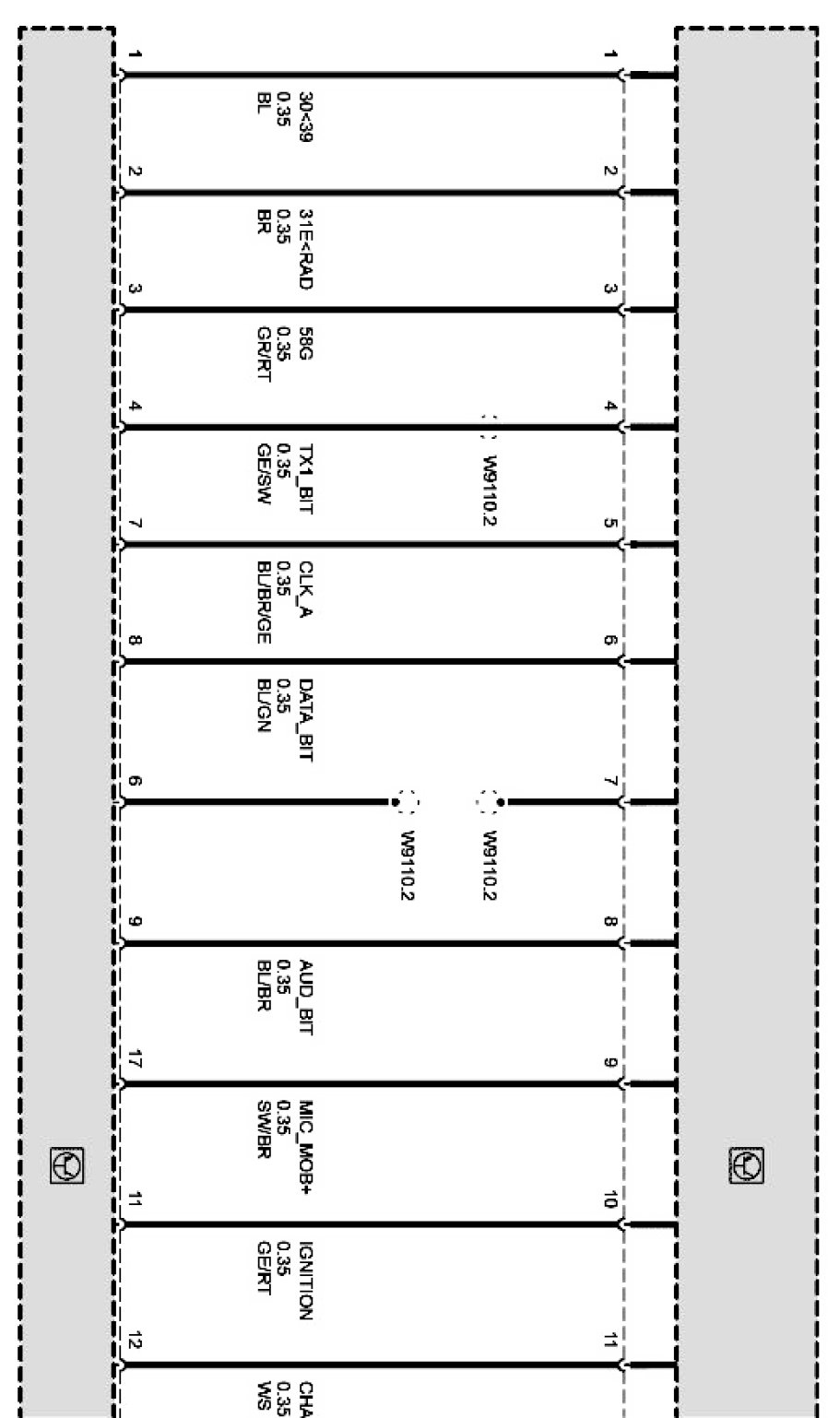

Interface, Telephone Provisions/interface Part 1:

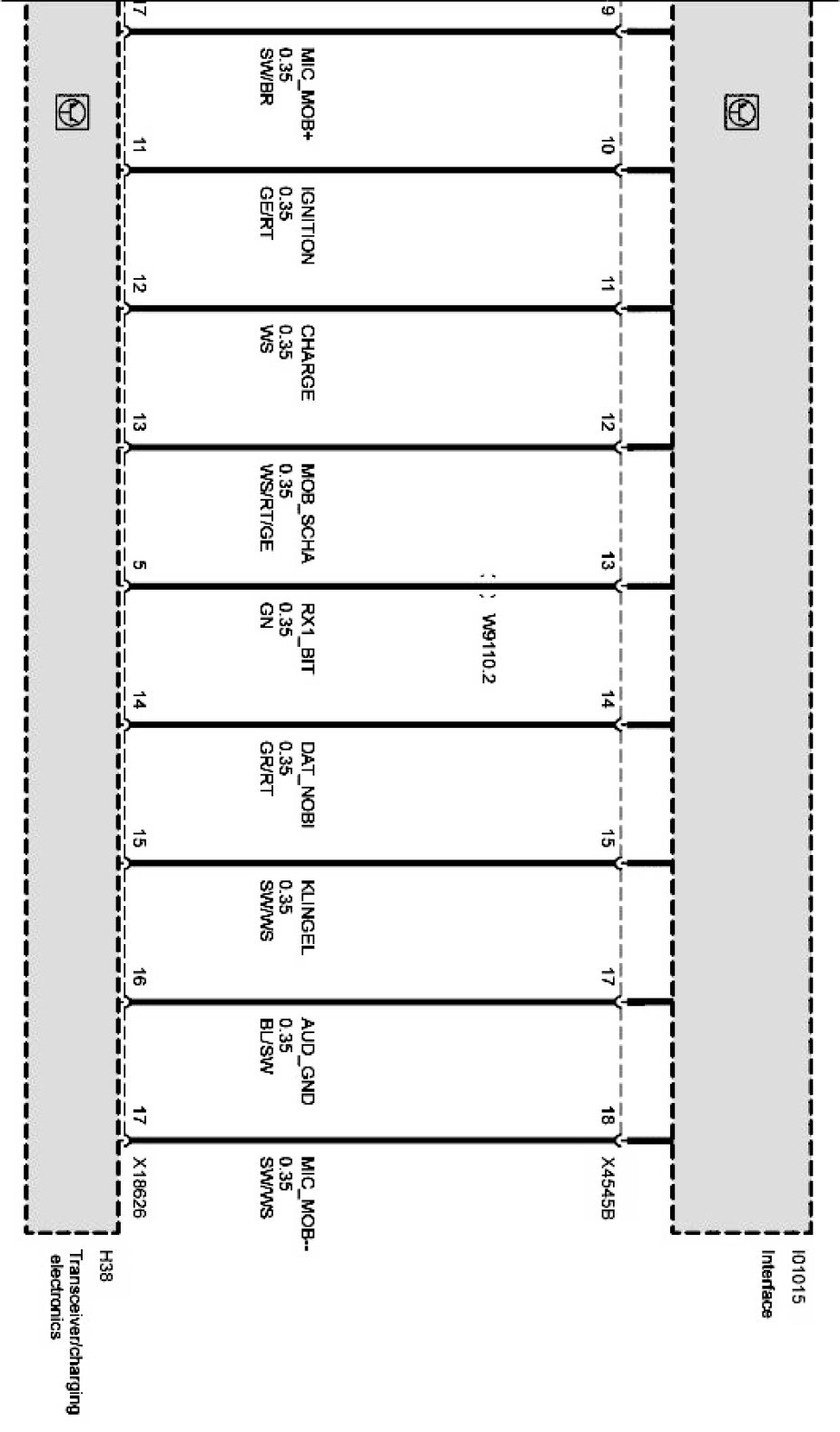

Interface, Telephone Provisions/interface Part 2:
