Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Communication >> Telecommunication (TEL or BIT or TCU Telematic Control Unit or ULF Universal Charging and Hands-Free Facility) >> Cellular Telephone (Cellular Phone, Nokia (3110))

Cellular Telephone (Cellular Phone, Nokia (3110))

Car telephone Part 1:



Car telephone Part 2:

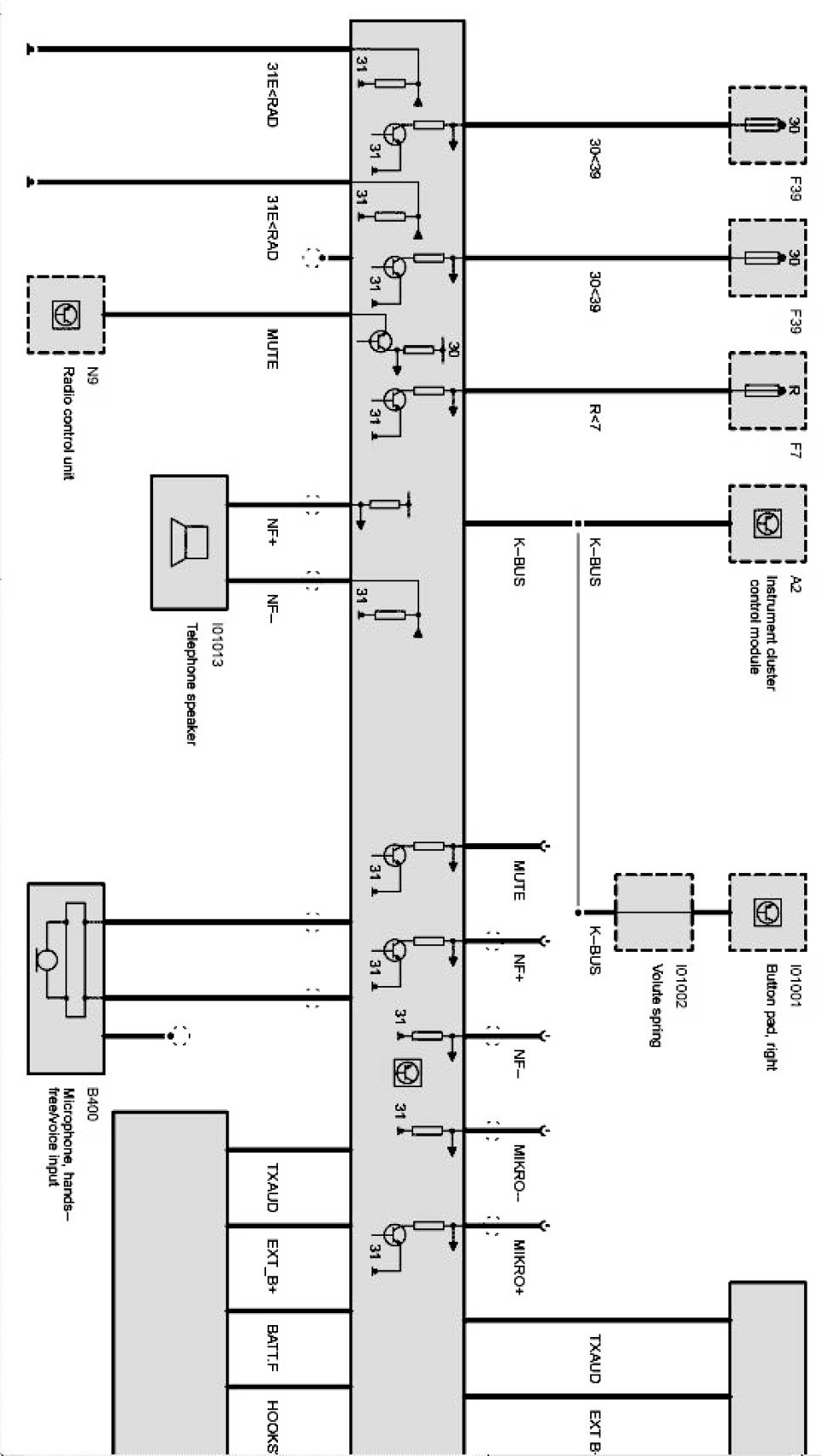

Car telephone Part 3:
