Connector, CAN-Bus (DME Motor Electronics MSS54 With DSC Dynamic Stability Control MK60)
Connector, CAN-Bus (DME Motor Electronics MSS54 With DSC Dynamic Stability Control MK60)

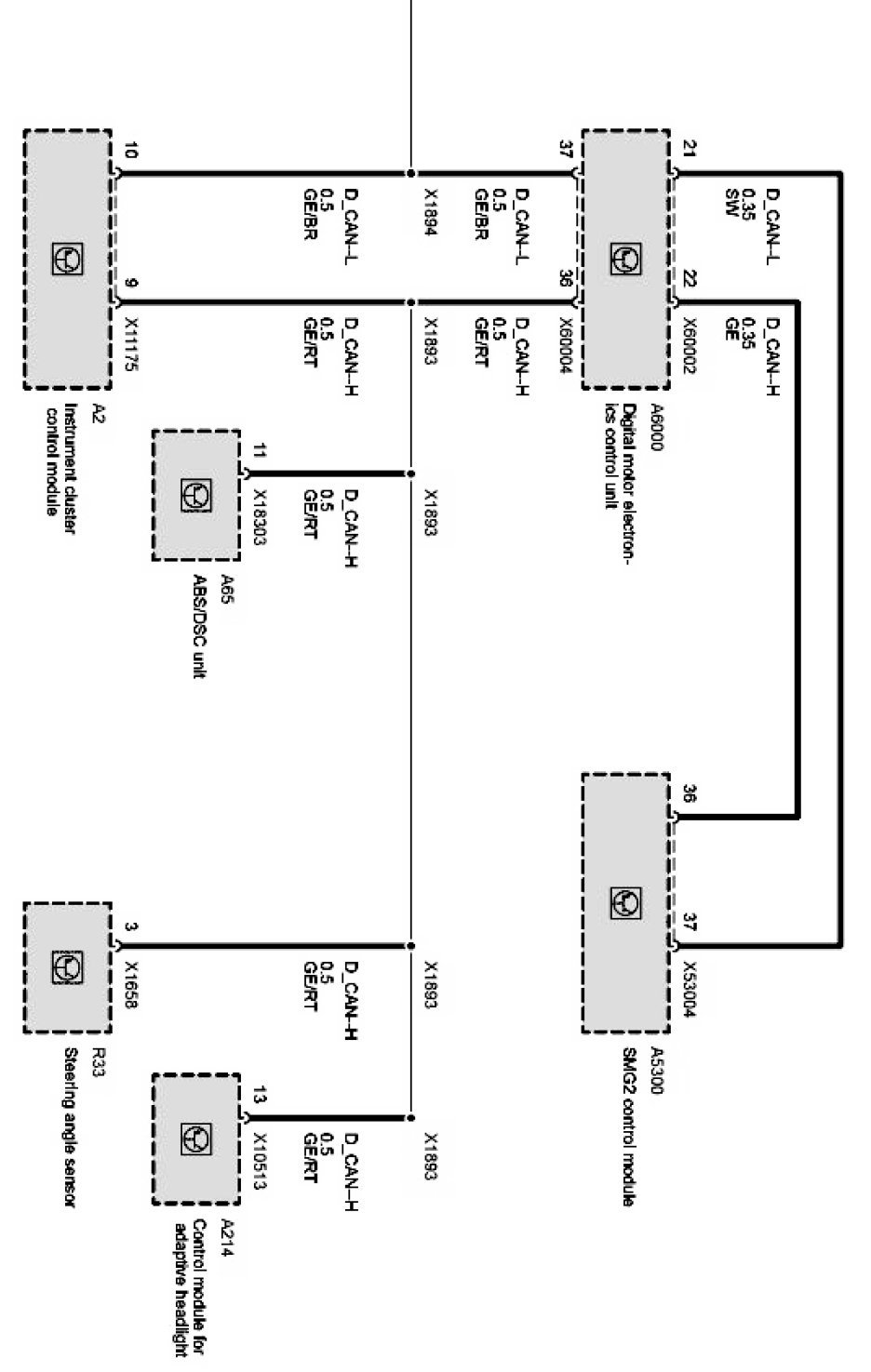

Connector, CAN Bus Part 1:

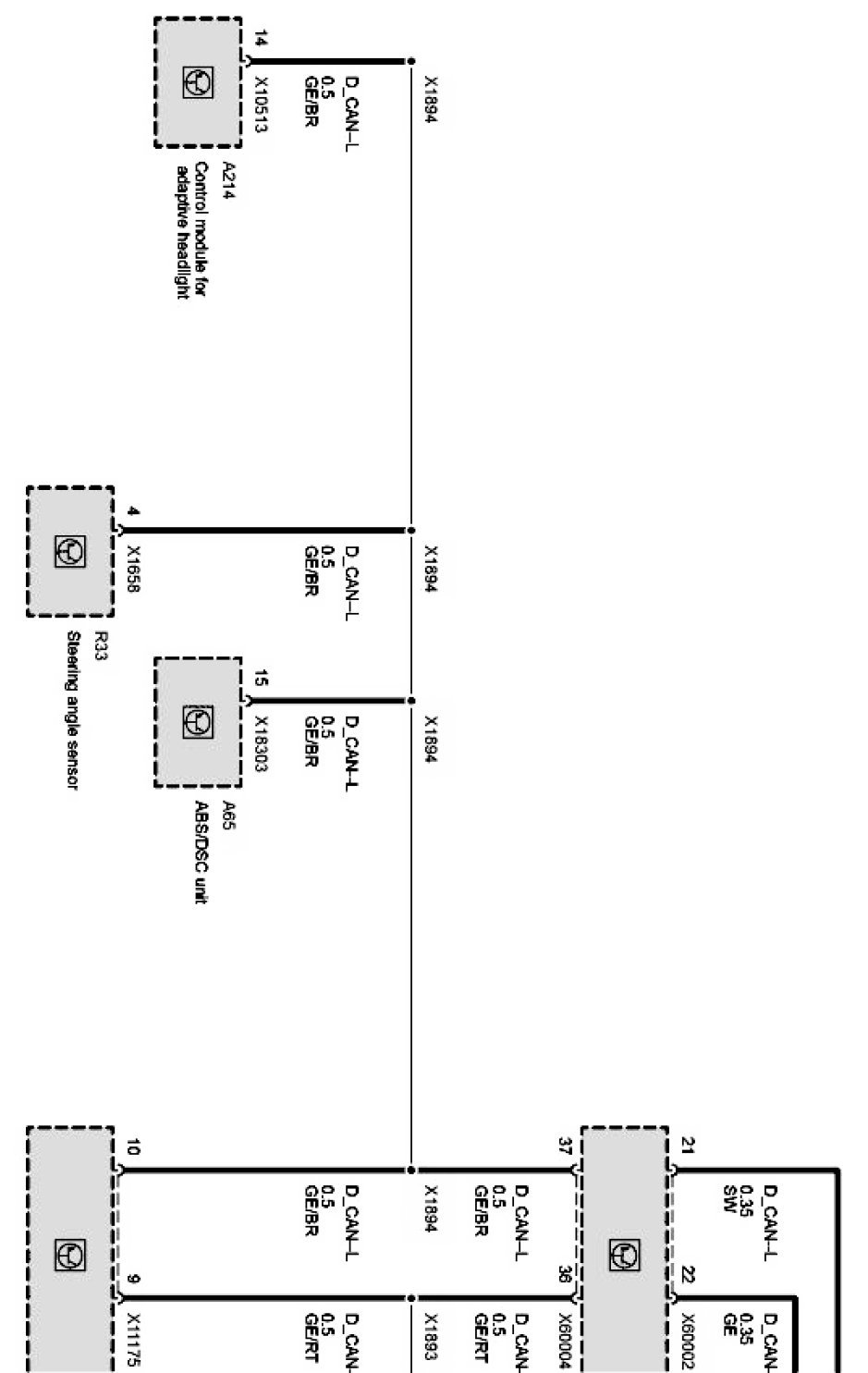

Connector, CAN Bus Part 2:
