Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> Top HiFi System (Top HiFi System (Harman&Kardon)) >> Subwoofer, Right (Saloon)

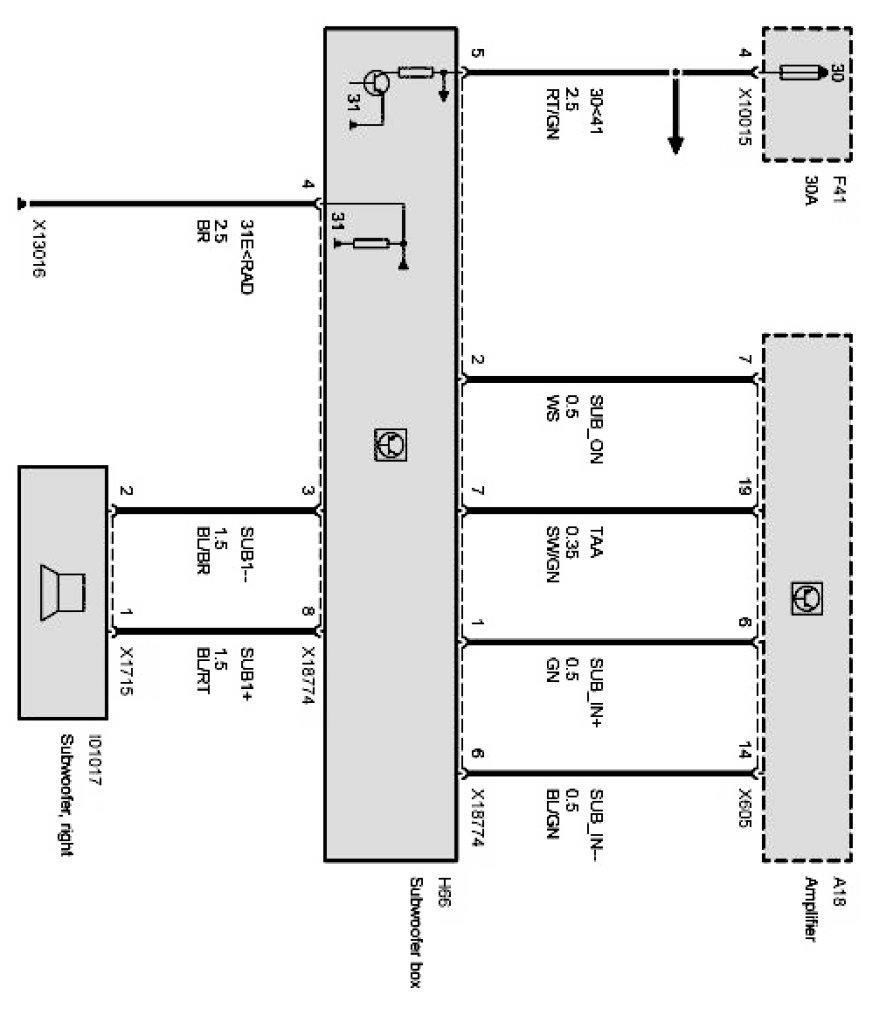

Subwoofer, Right (Saloon)

Subwoofer box:
