Front Speaker ((Coupe or Convertible) With BM on-Board Monitor As Of 09/01)

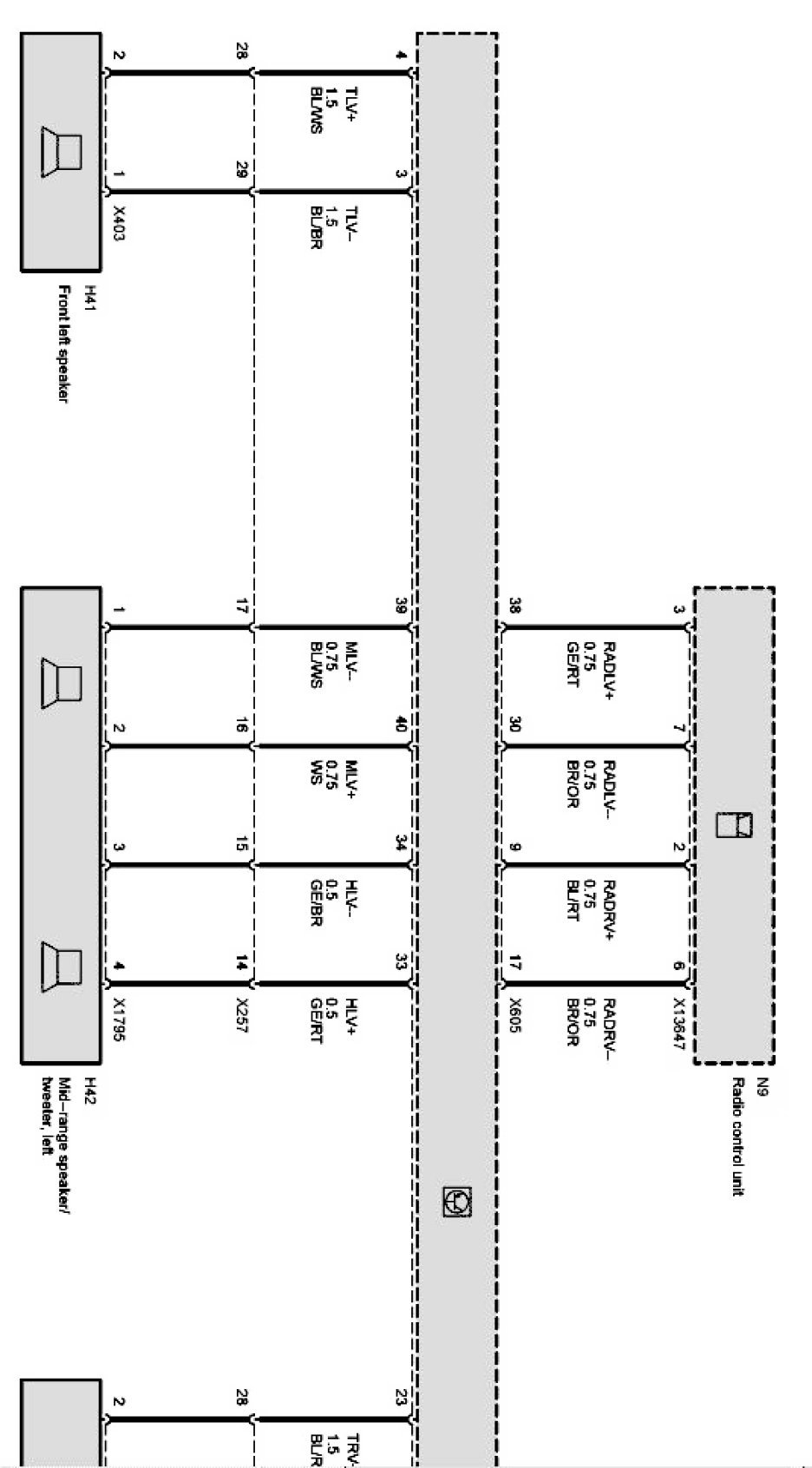

Front speakers Part 1:

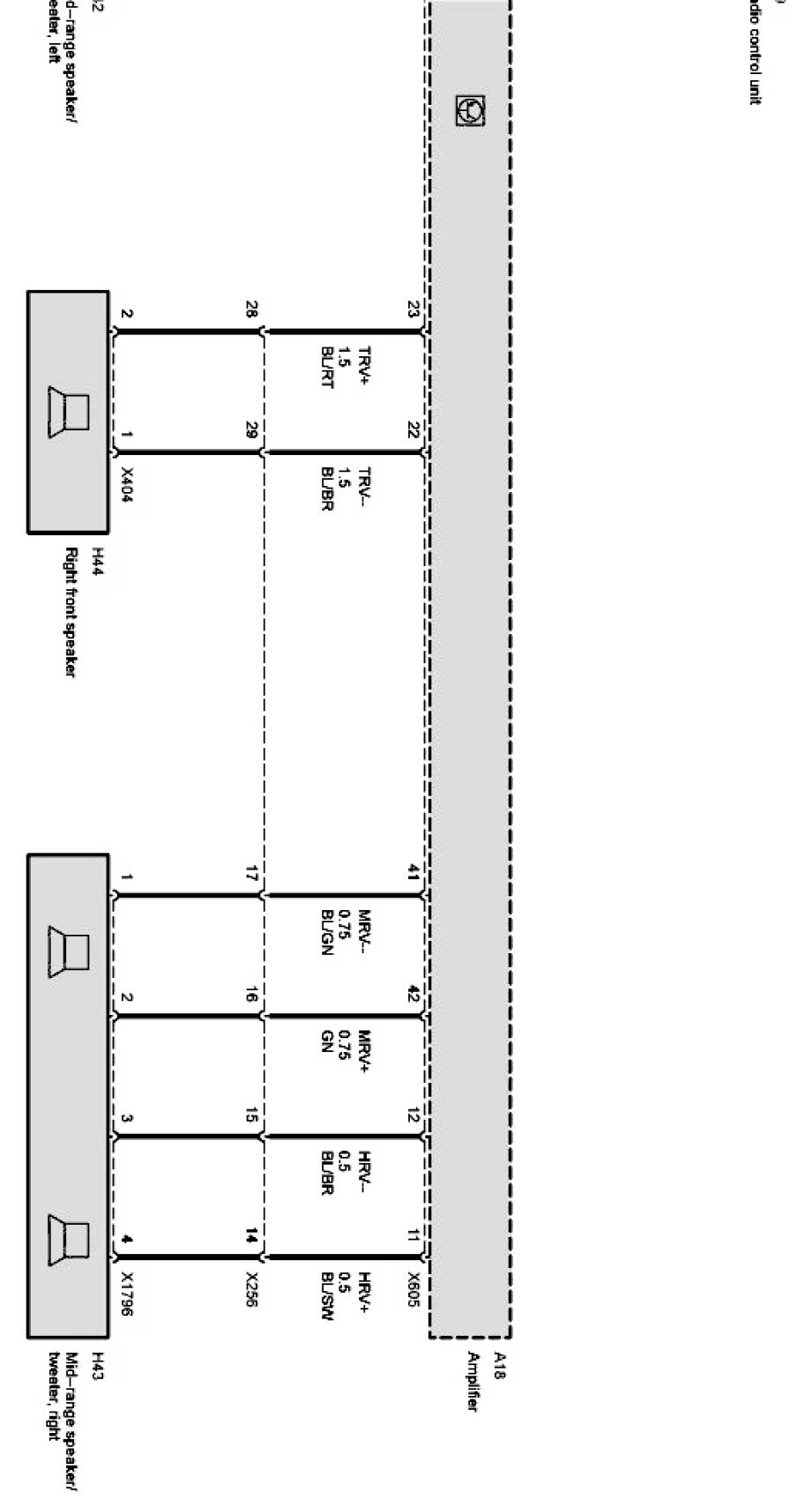

Front speakers Part 2:
