Radio (Convertible With Stereo System (6 Speakers) As of 03/01)
Radio (Convertible With Stereo System (6 Speakers) As of 03/01)

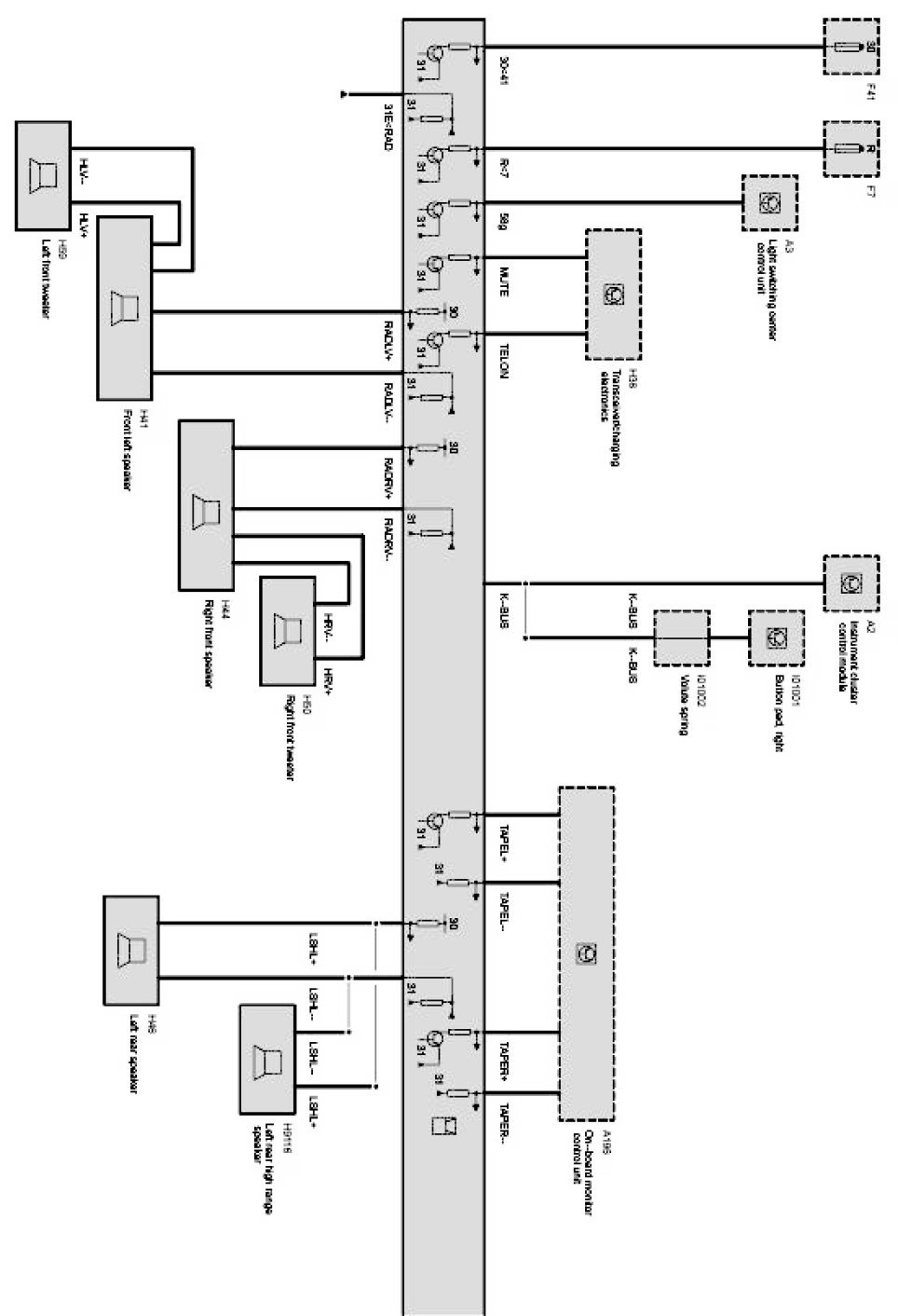

Radio Part 1:

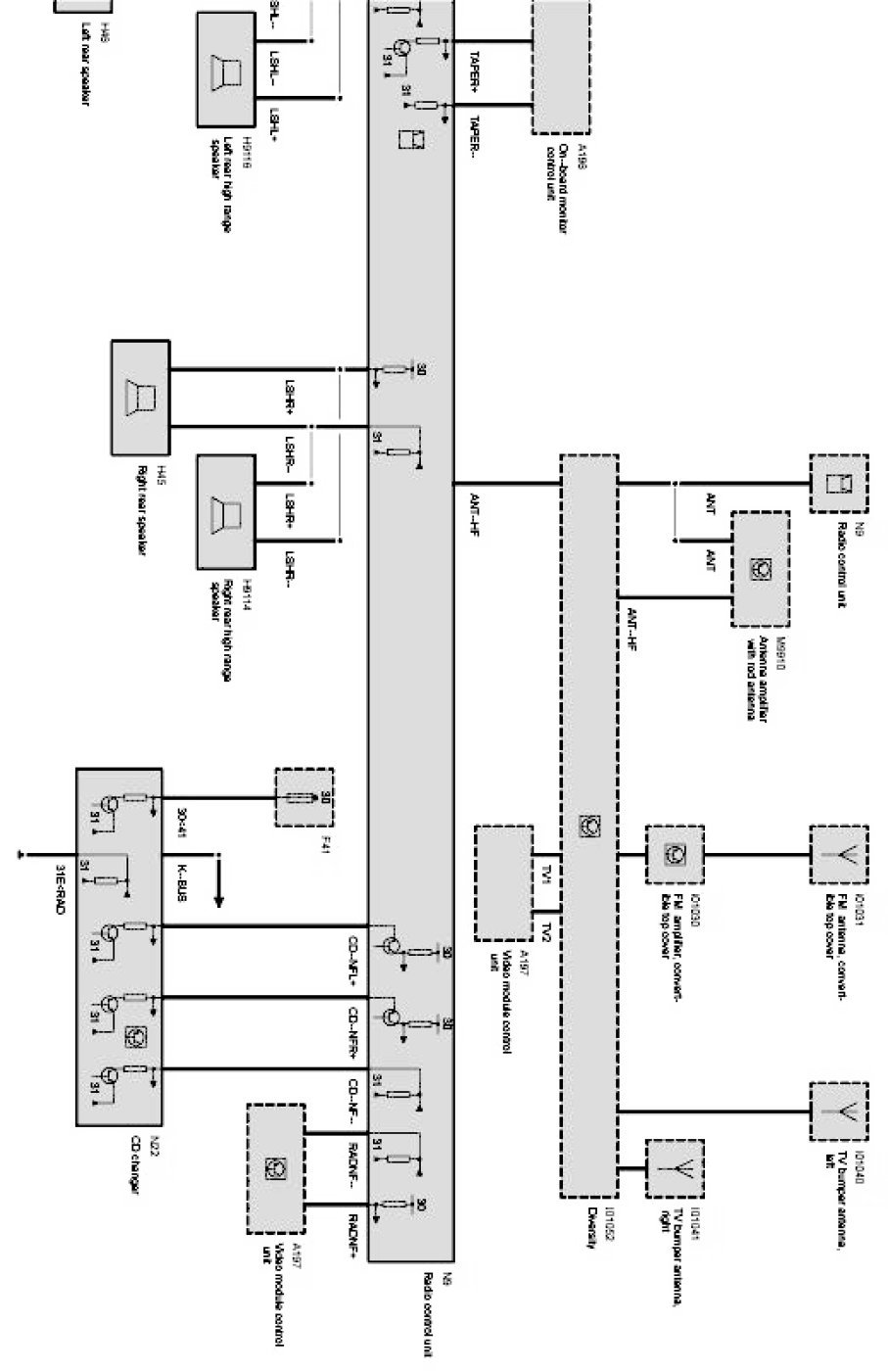

Radio Part 2:
