Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> Radio (Compact With Hifi System (10 Speakers) As of 03/01)

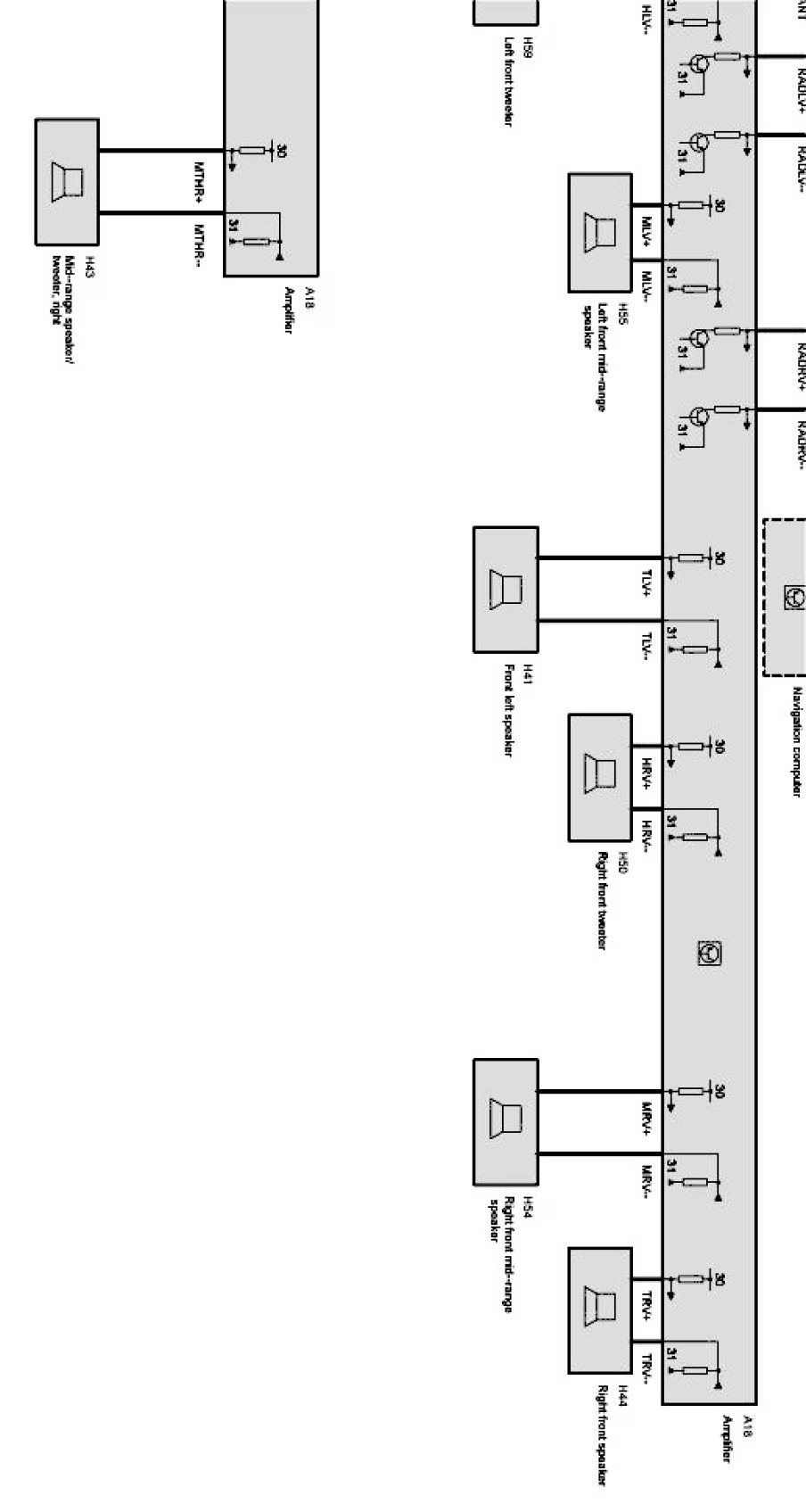

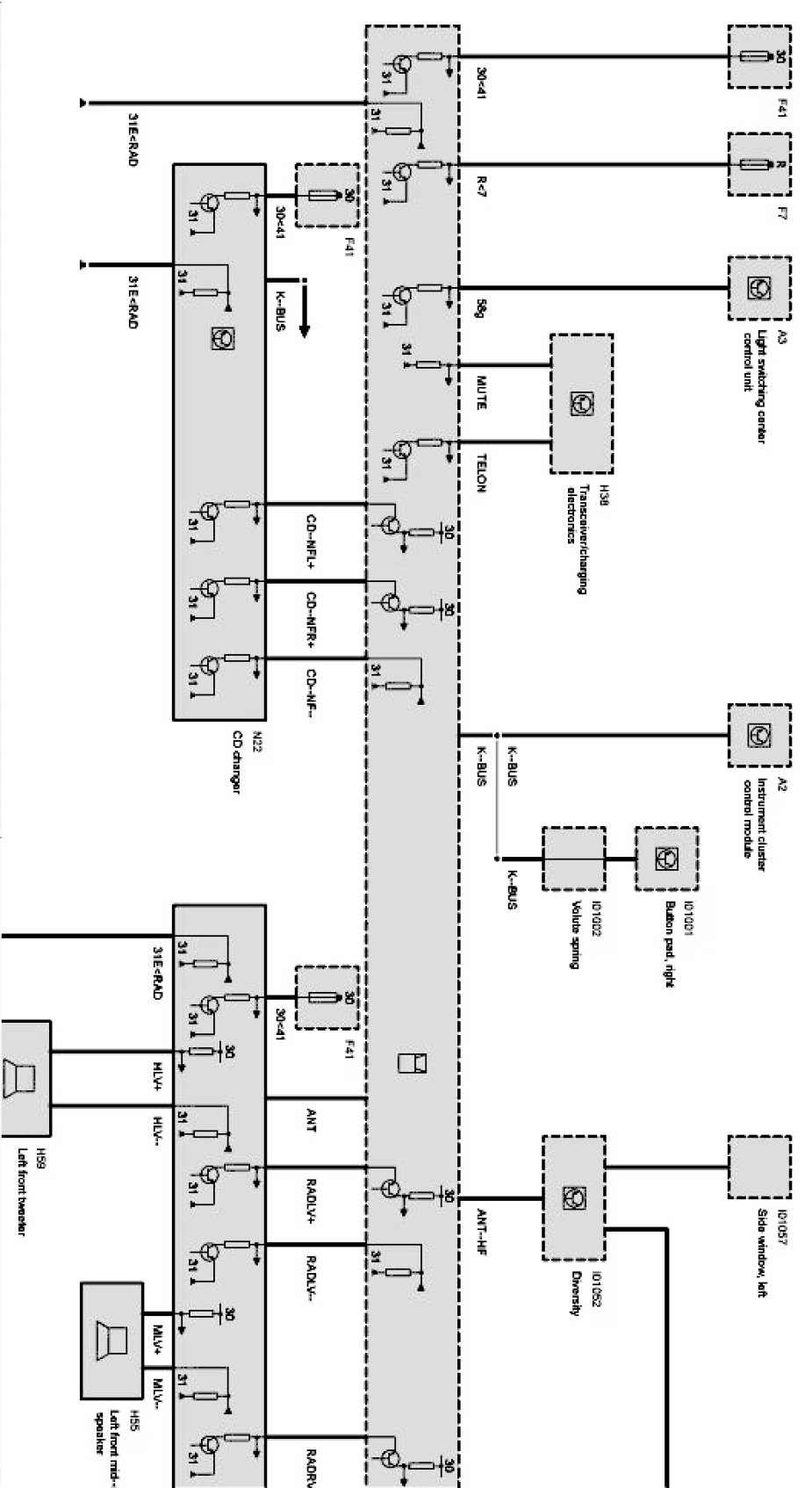

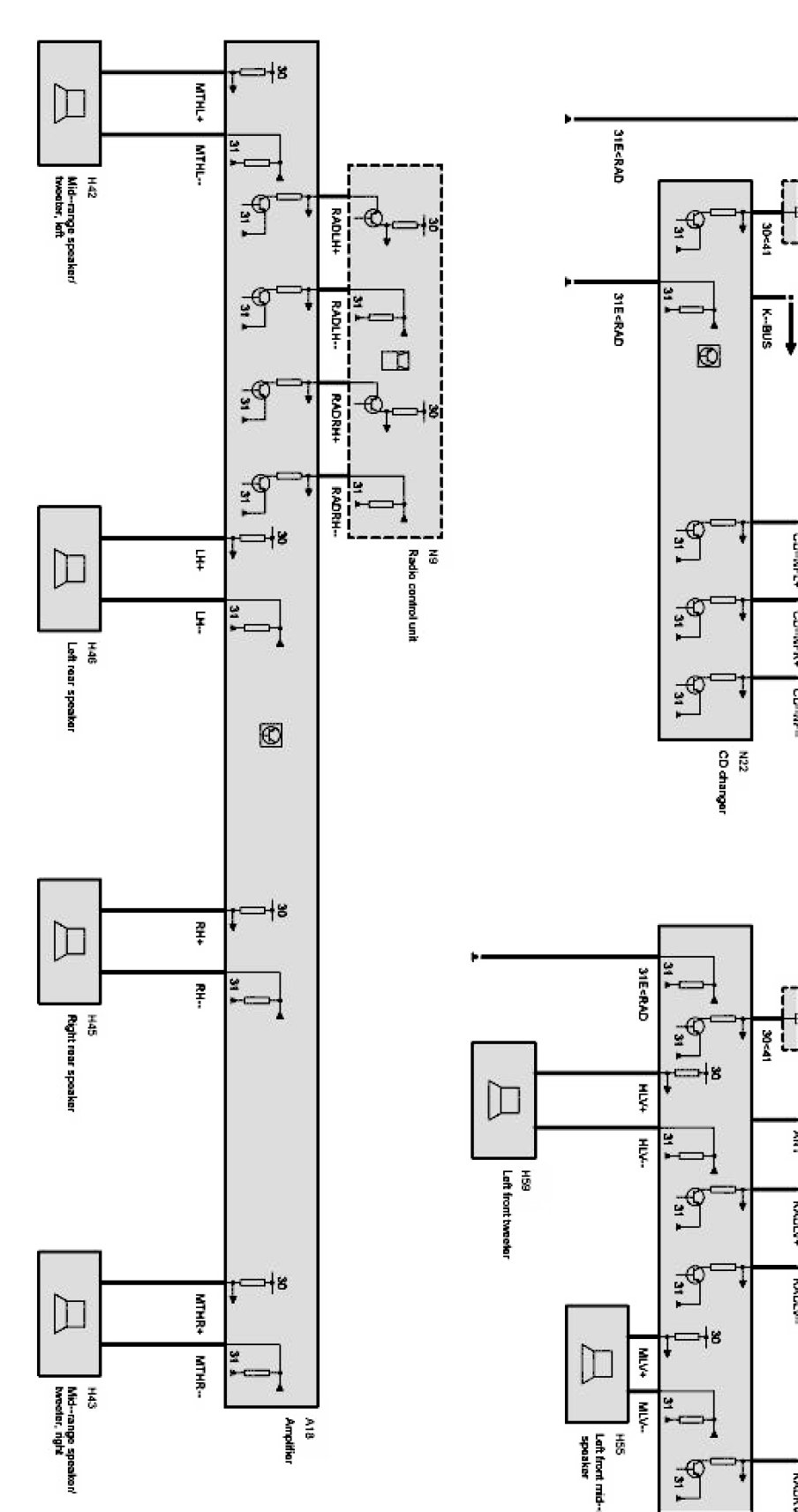

Radio (Compact With Hifi System (10 Speakers) As of 03/01)
