FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2005
>>
M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
Hifi System (Hifi System (10 Speakers))
>>
Speaker, Tweeter, Front Left
>>

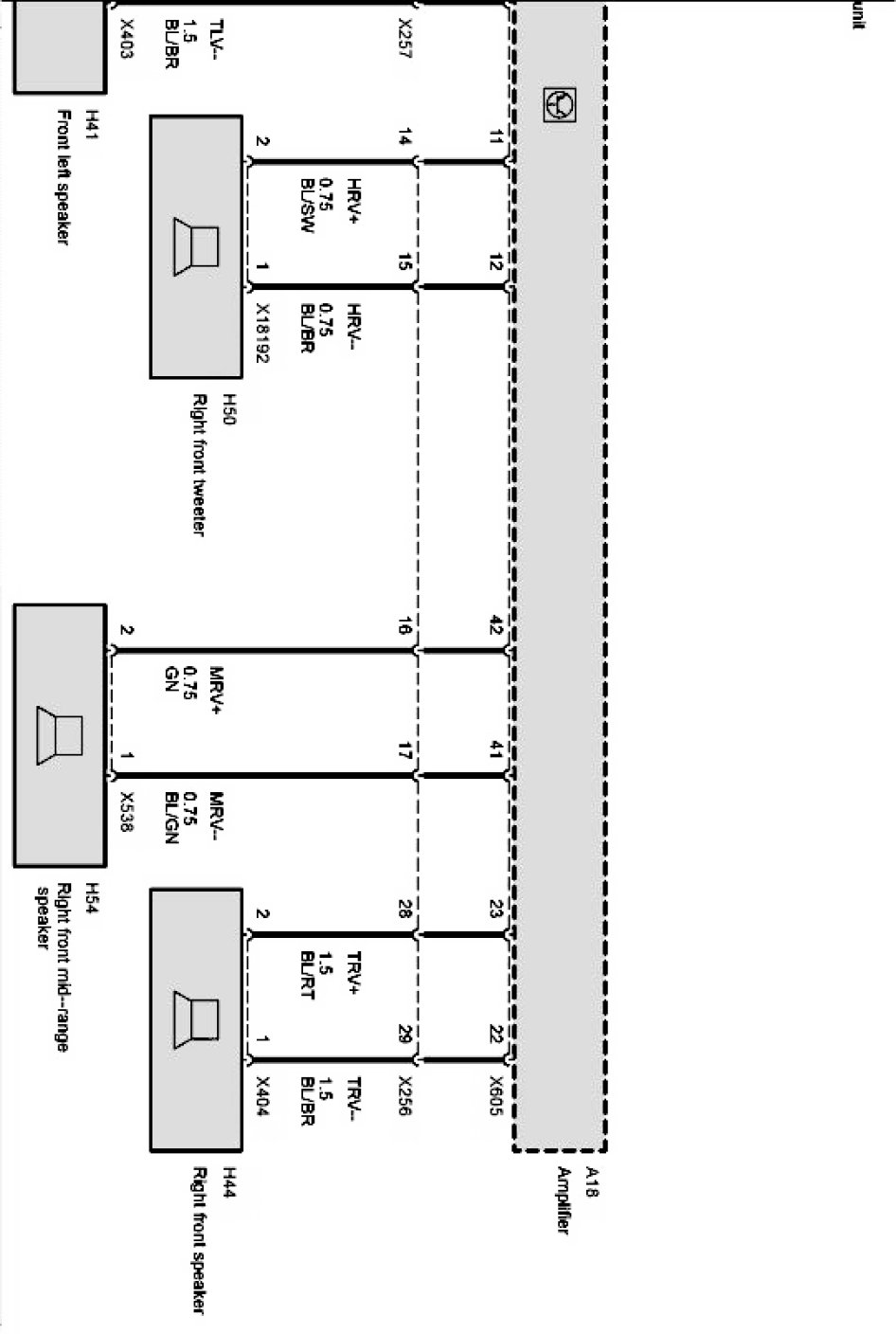

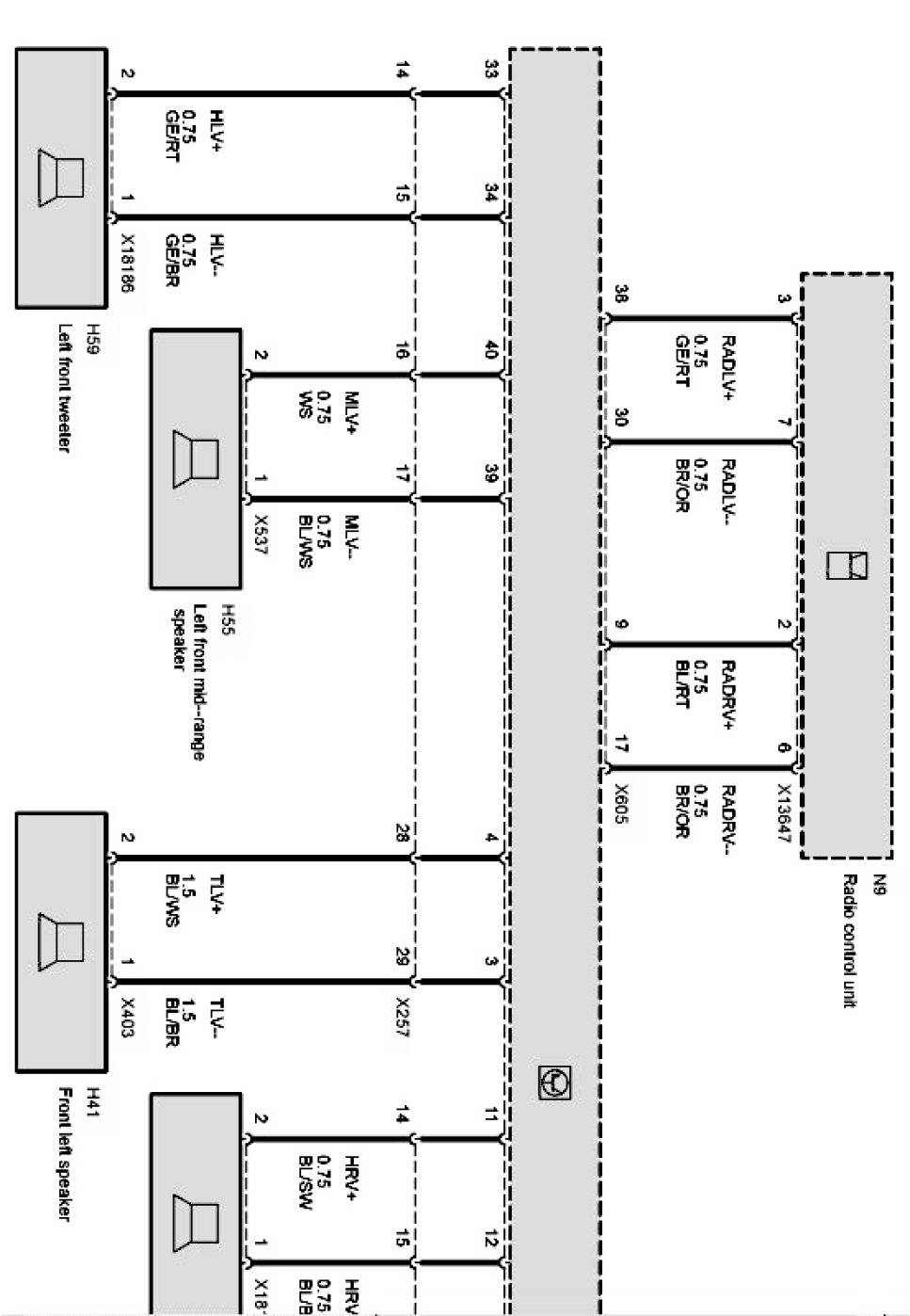

Front Speaker (Compact With BM on-Board Monitor As of 09/01)
Front Speaker (Compact With BM on-Board Monitor As of 09/01)
