Home
>>
BMW
>>
2005
>>
M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Navigation (NAV Navigation Computer MKII or NAV Navigation Computer)
>>
Location Display
>>

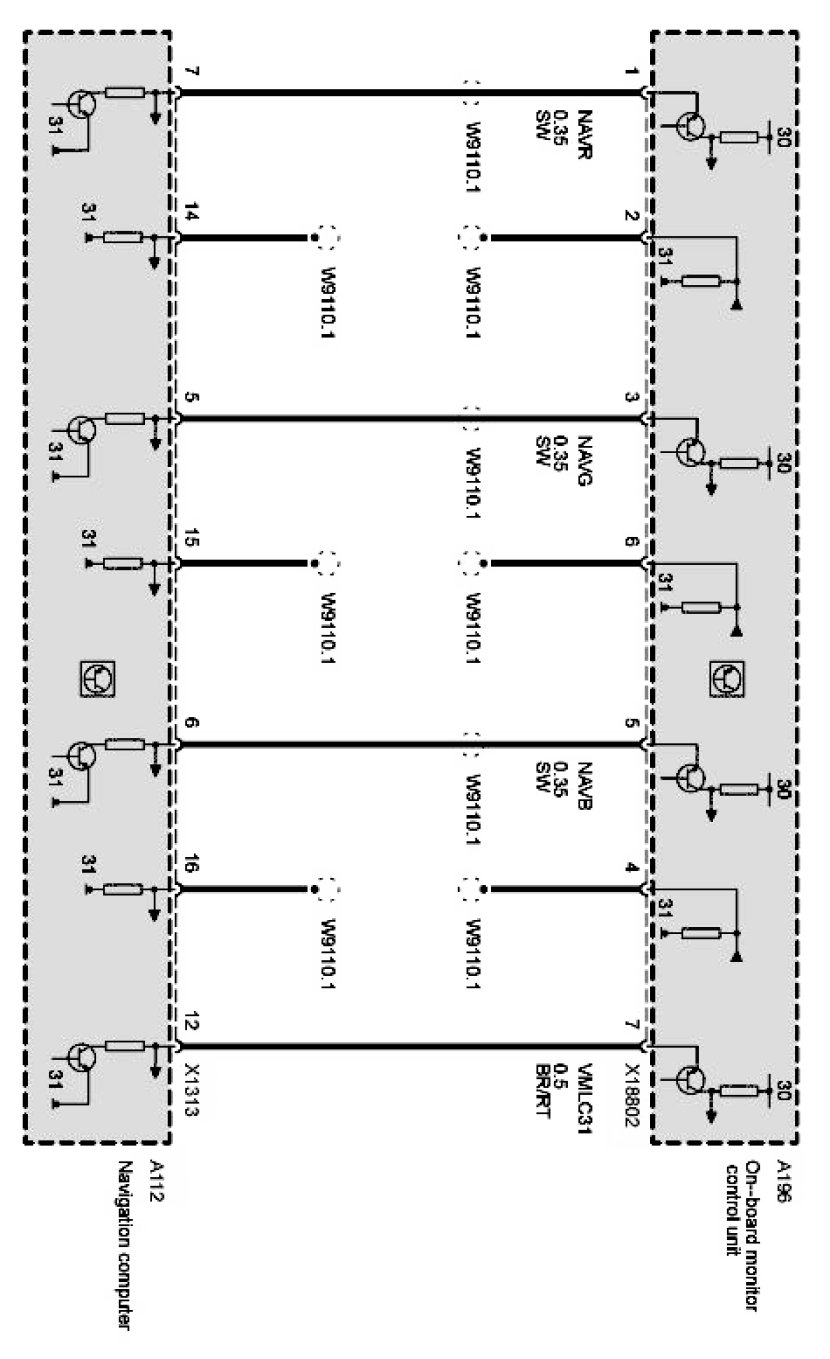

Navigation, Picture Signals (BM on-Board Monitor)
Navigation, Picture Signals (BM on-Board Monitor)
Interface, navigation/on-board monitor:
