Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X0 >> X01057 >> X01021, X01057 (Compact)

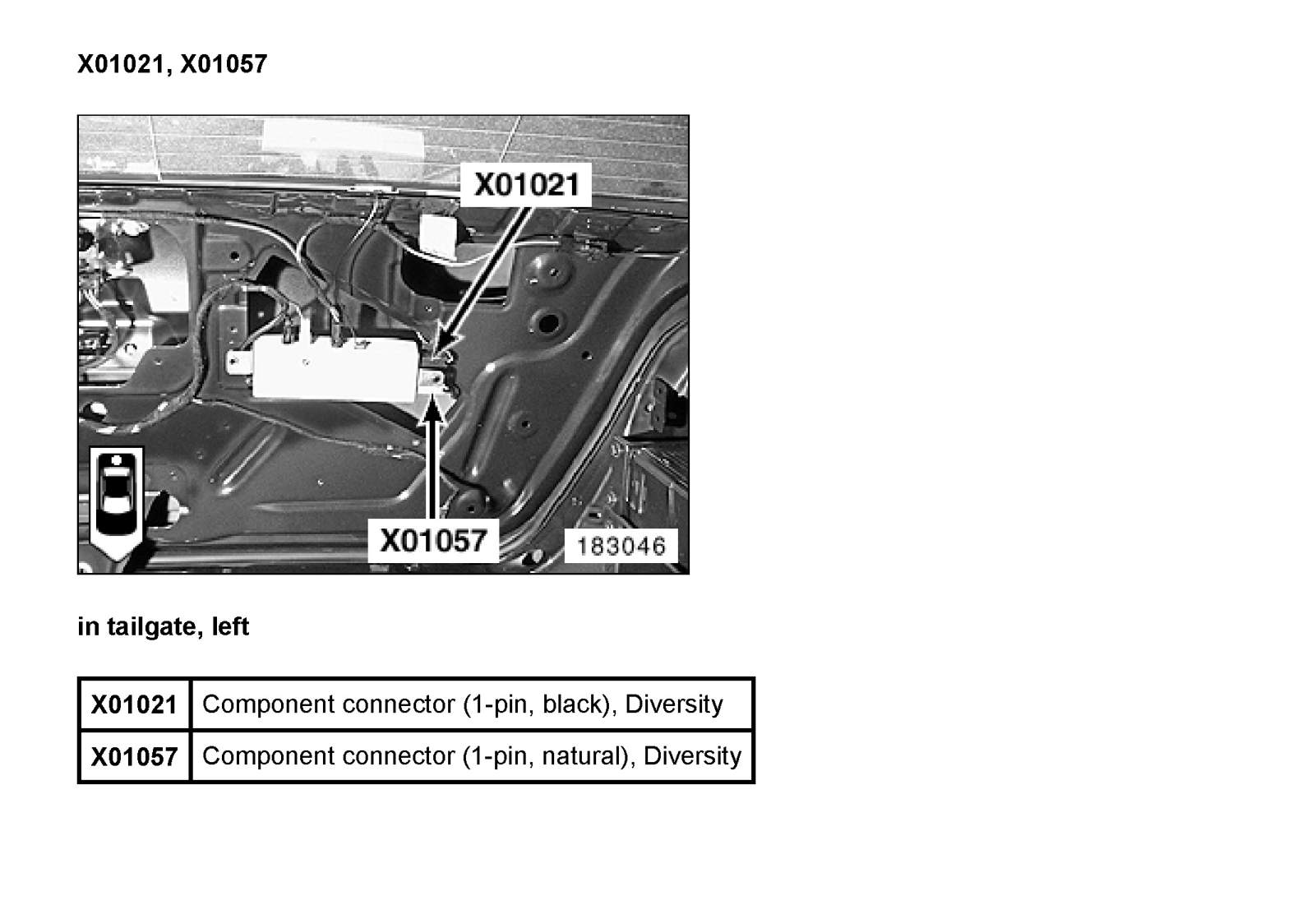

X01021, X01057 (Compact)
