Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X9 >> X905 (S75 Blower switch)

X905 (S75 Blower switch)

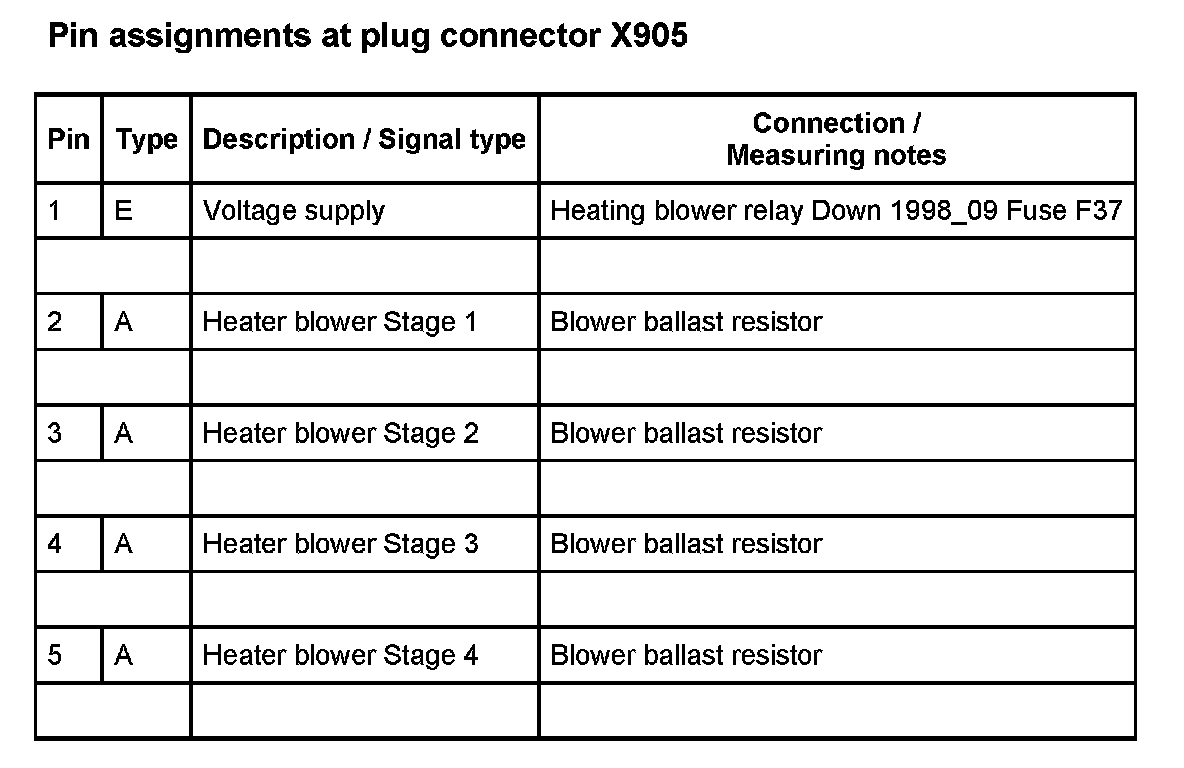

X905:
