Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X604 >> A20 Control Unit, Front Passenger Seat Memory (As of 03/00 With Convertible))

A20 Control Unit, Front Passenger Seat Memory (As of 03/00 With Convertible))

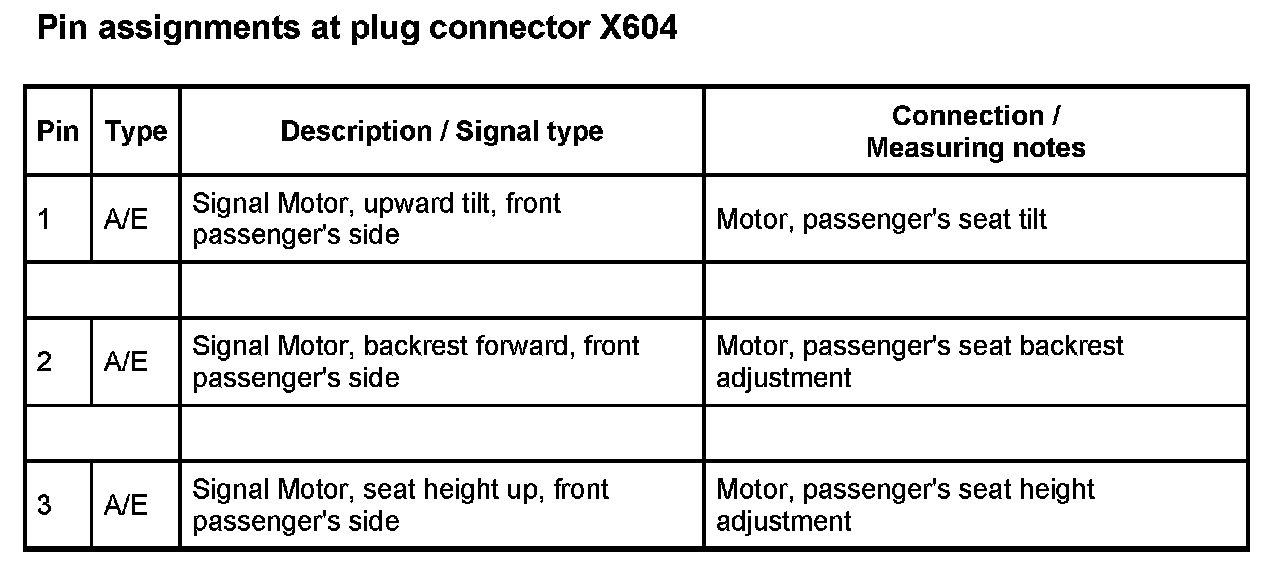

X604 - Part 1:

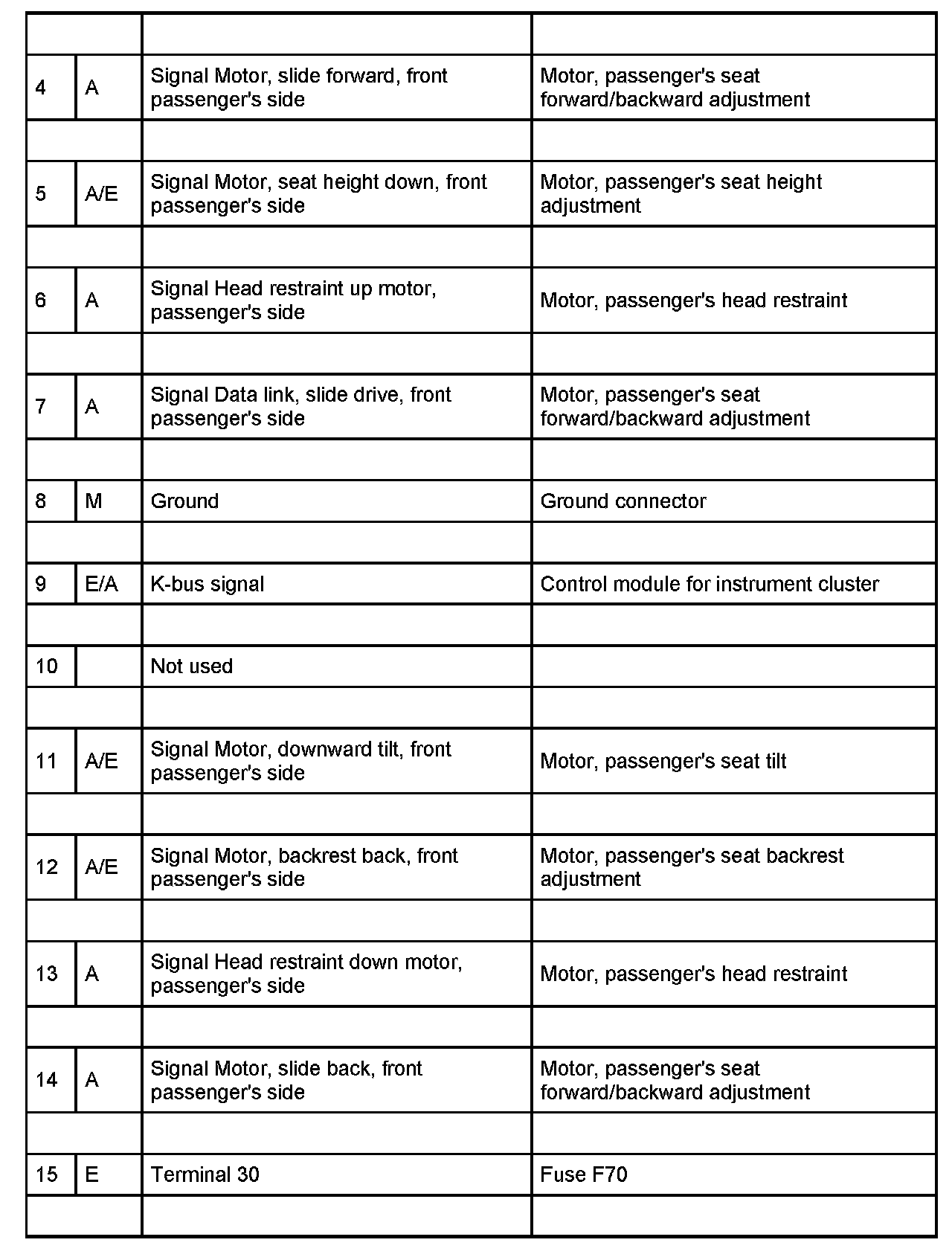

X604 - Part 2:
