X338 (E46 Tail light, left (Saloon as of 09/01))
X338 (E46 Tail light, left (Saloon as of 09/01))

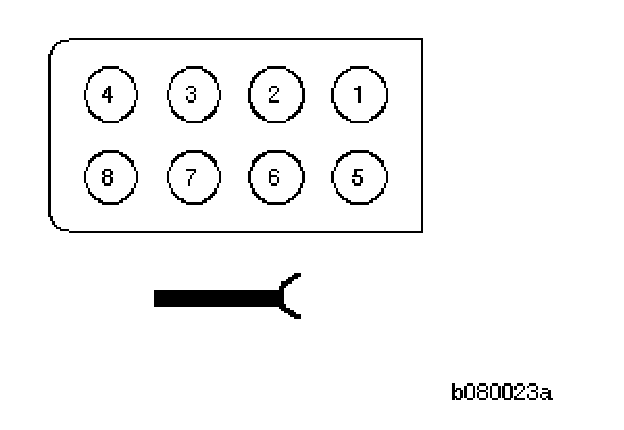

X338 Component Connector (8-Pin, Black):

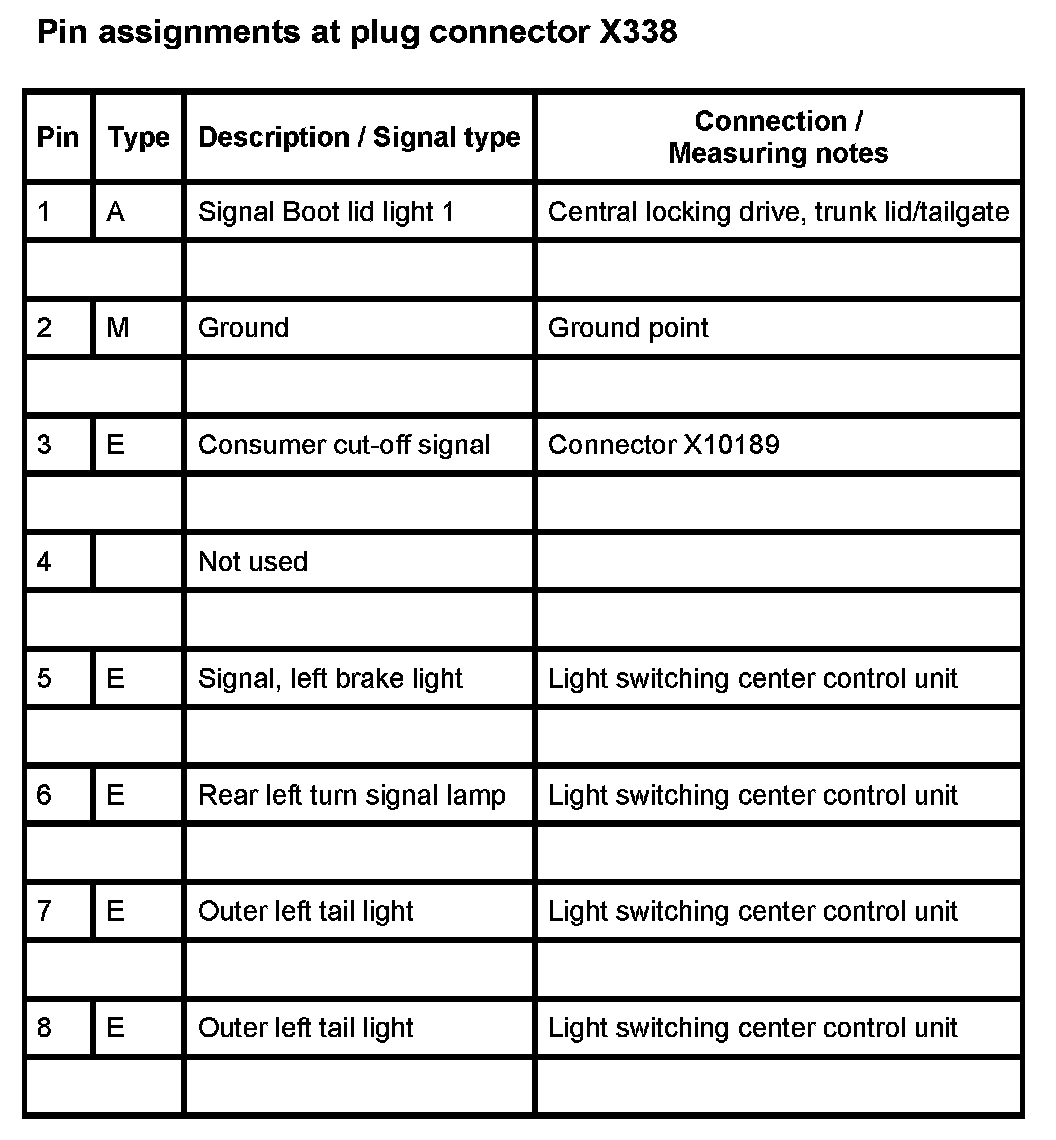

X338:
