A1 General Module Control Unit (Saloon As of 03/04)

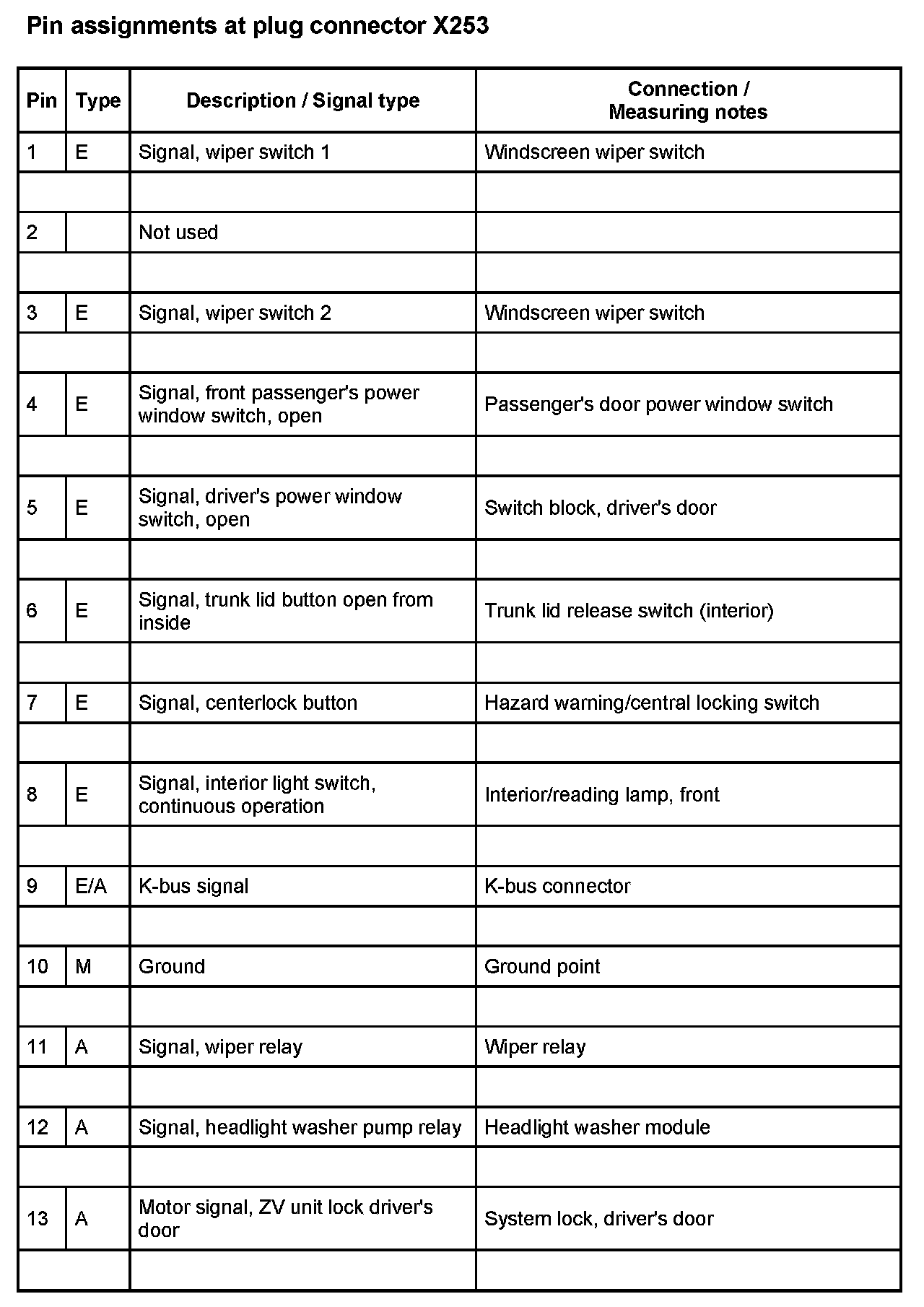

X253 - Part 1:

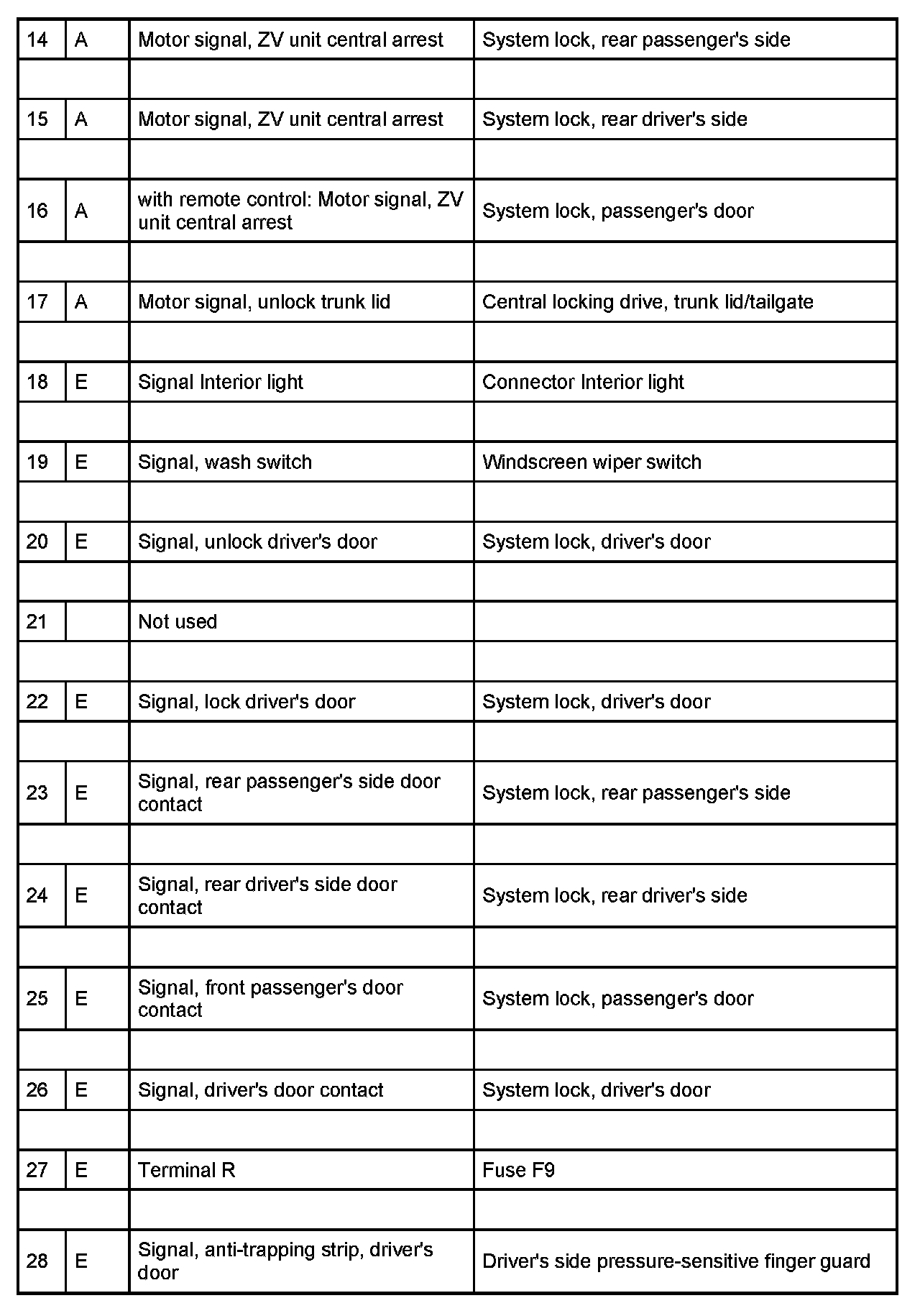

X253 - Part 2:

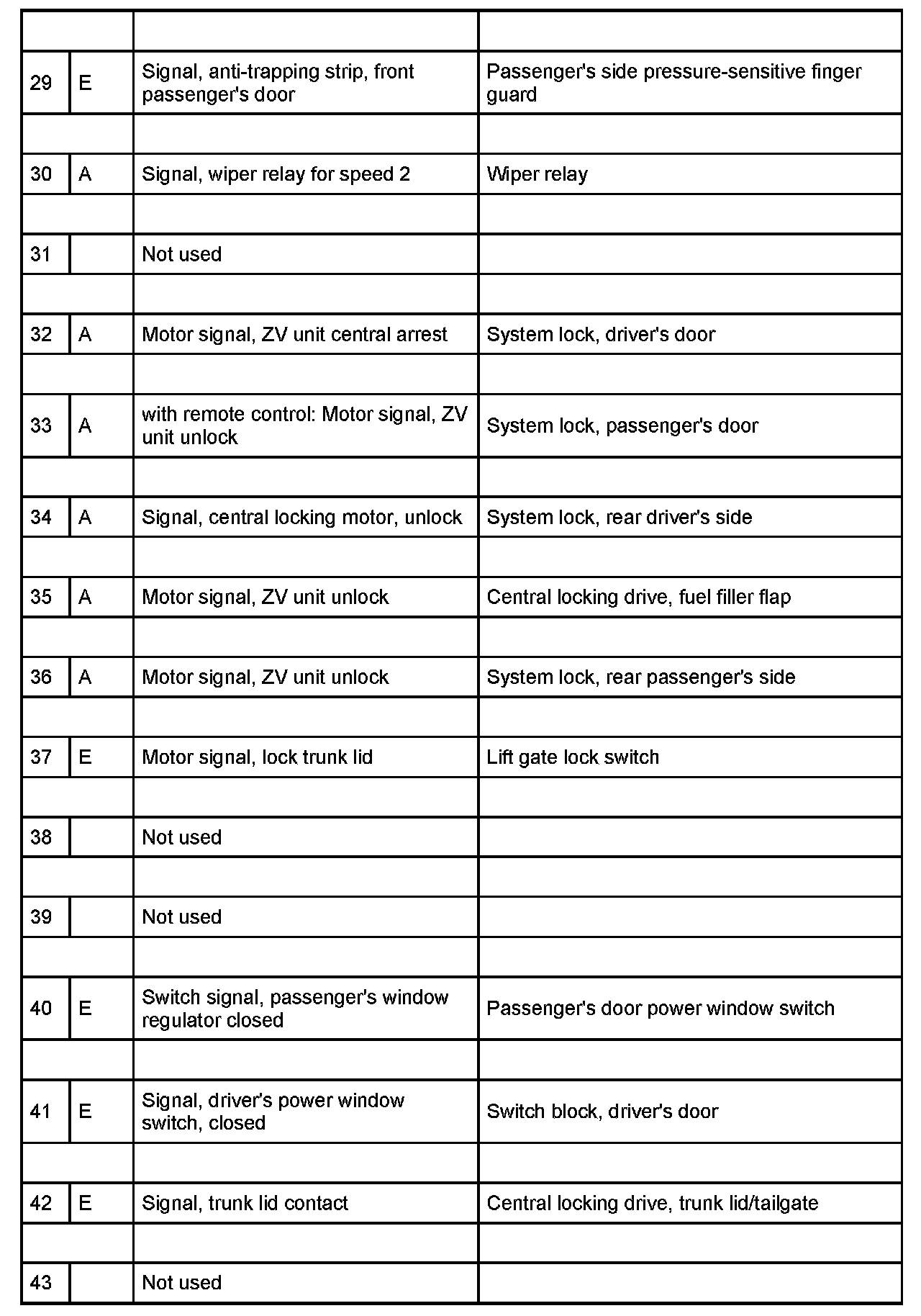

X253 - Part 3:

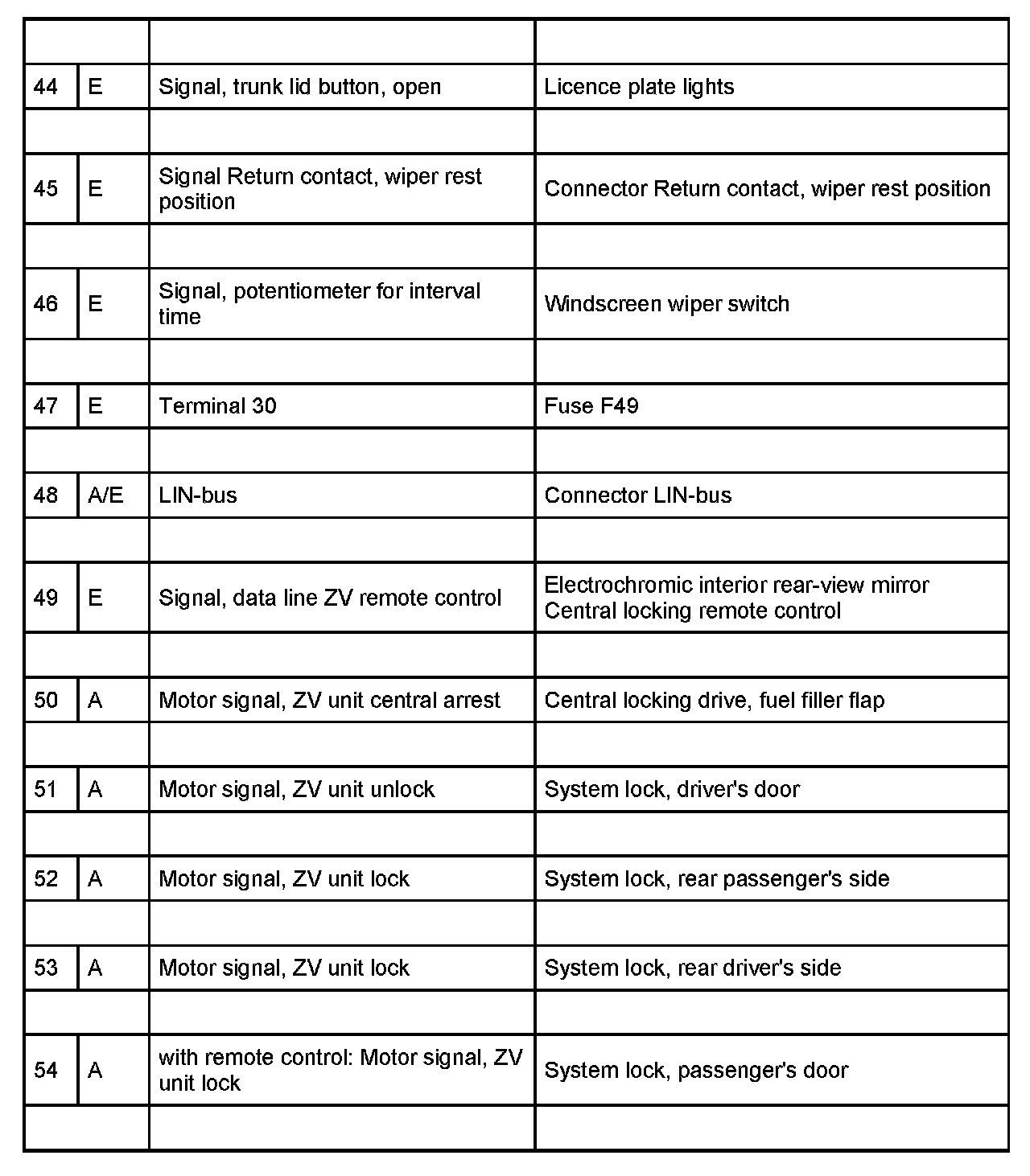

X253 - Part 4:
