Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X18804 (A197 Video module control unit)

X18804 (A197 Video module control unit)

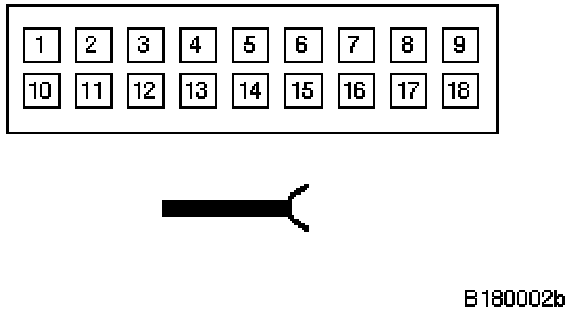

X18804 Component Connector (18-pin, Blue):

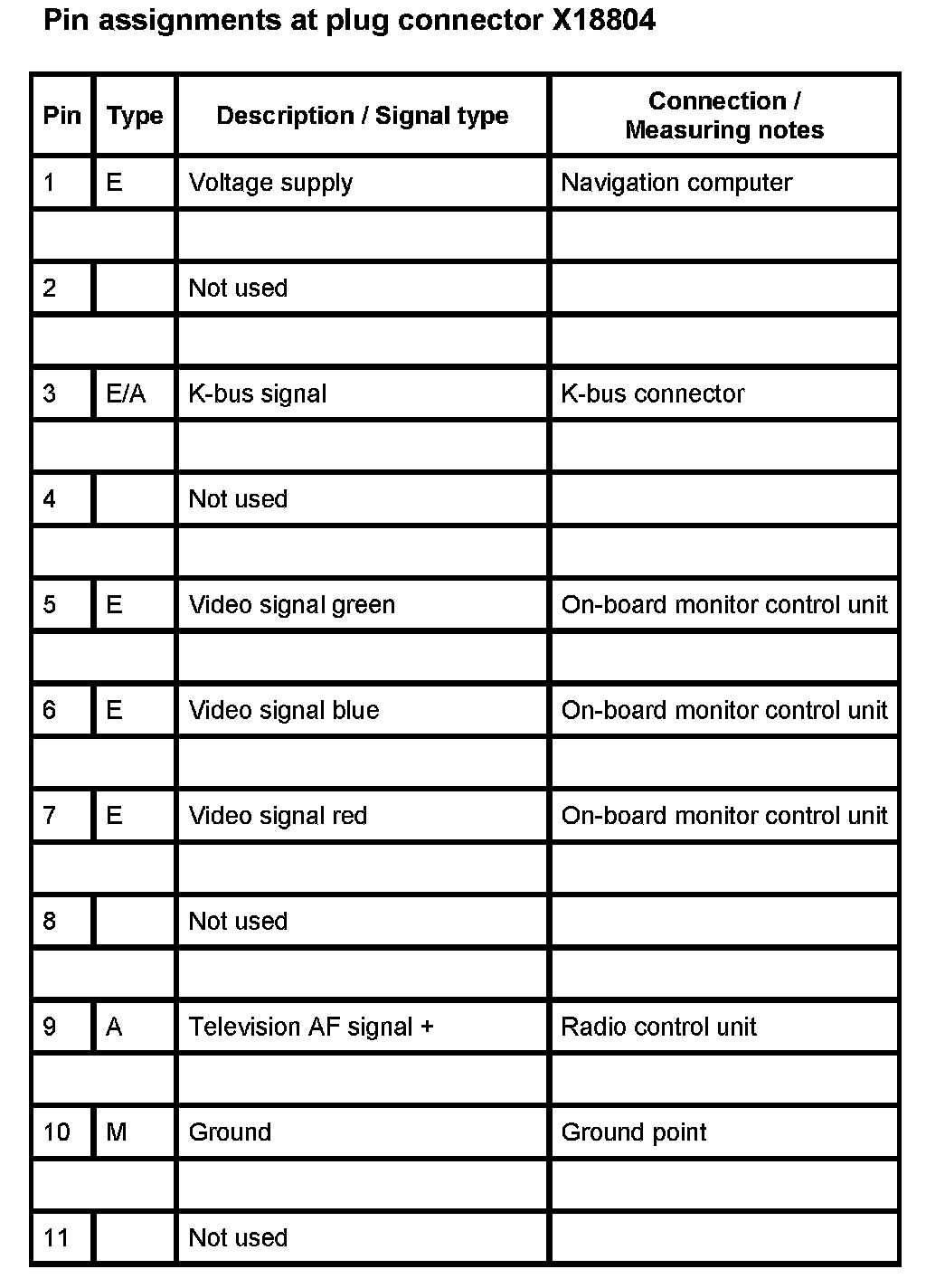

X18804 - Part 1:

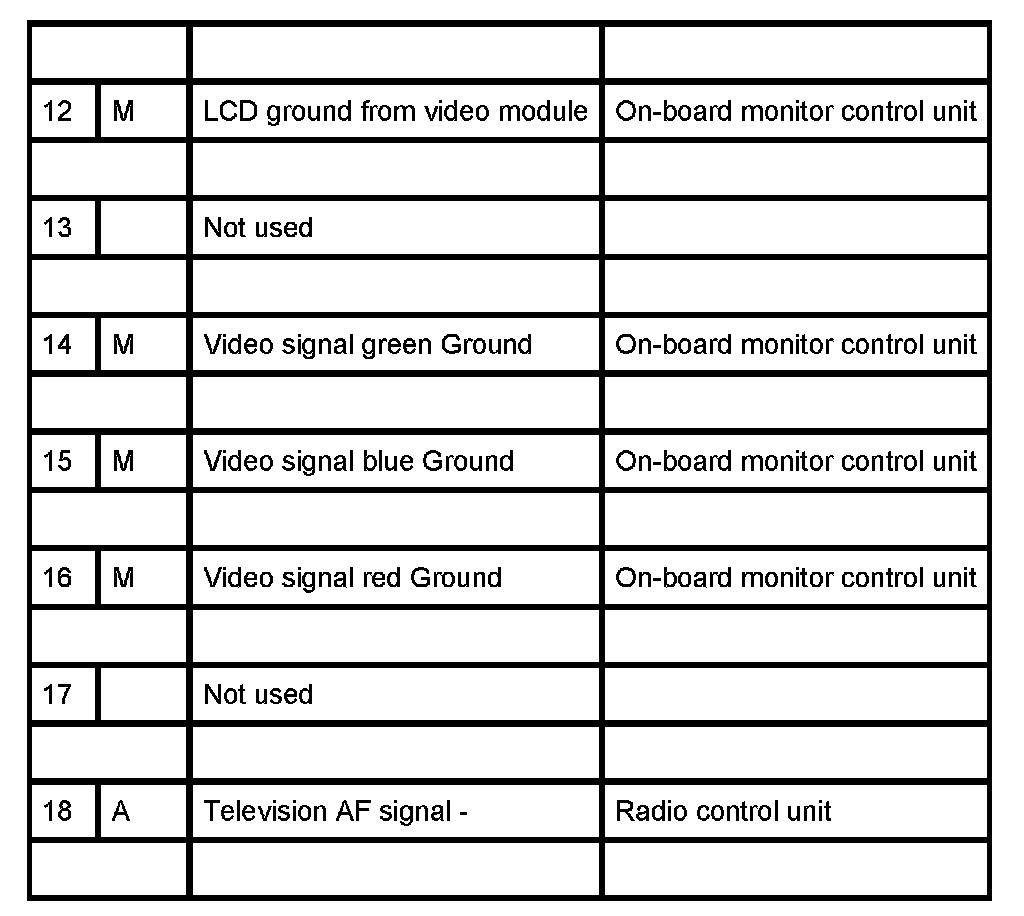

X18804 - Part 2:
