A169 Switching Center (AWD With DDS Deflation Detection System As of 09/01)
A169 Switching Center (AWD With DDS Deflation Detection System As of 09/01)

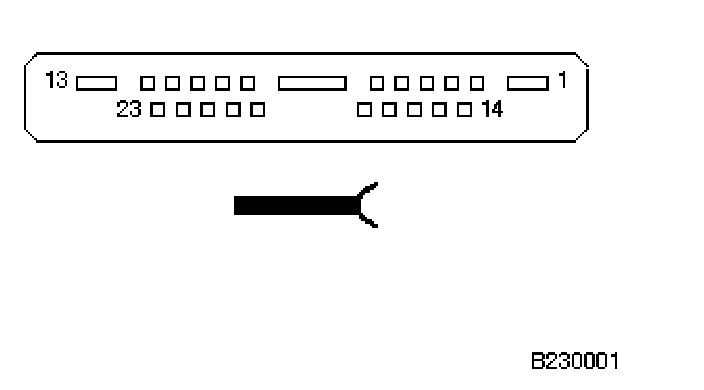

X1869 Component Connector (23-Pin, Black):

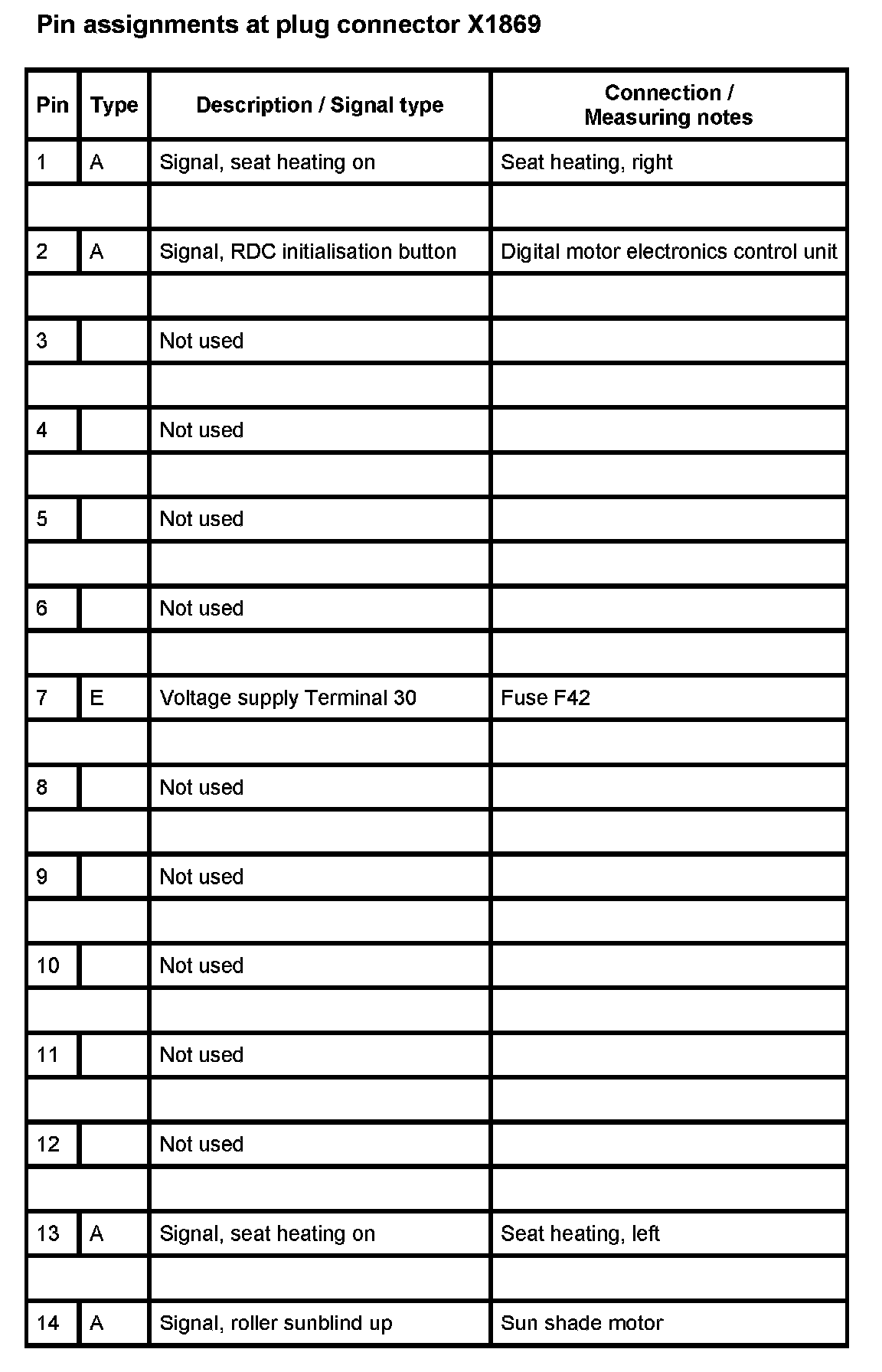

X1869 - Part 1:

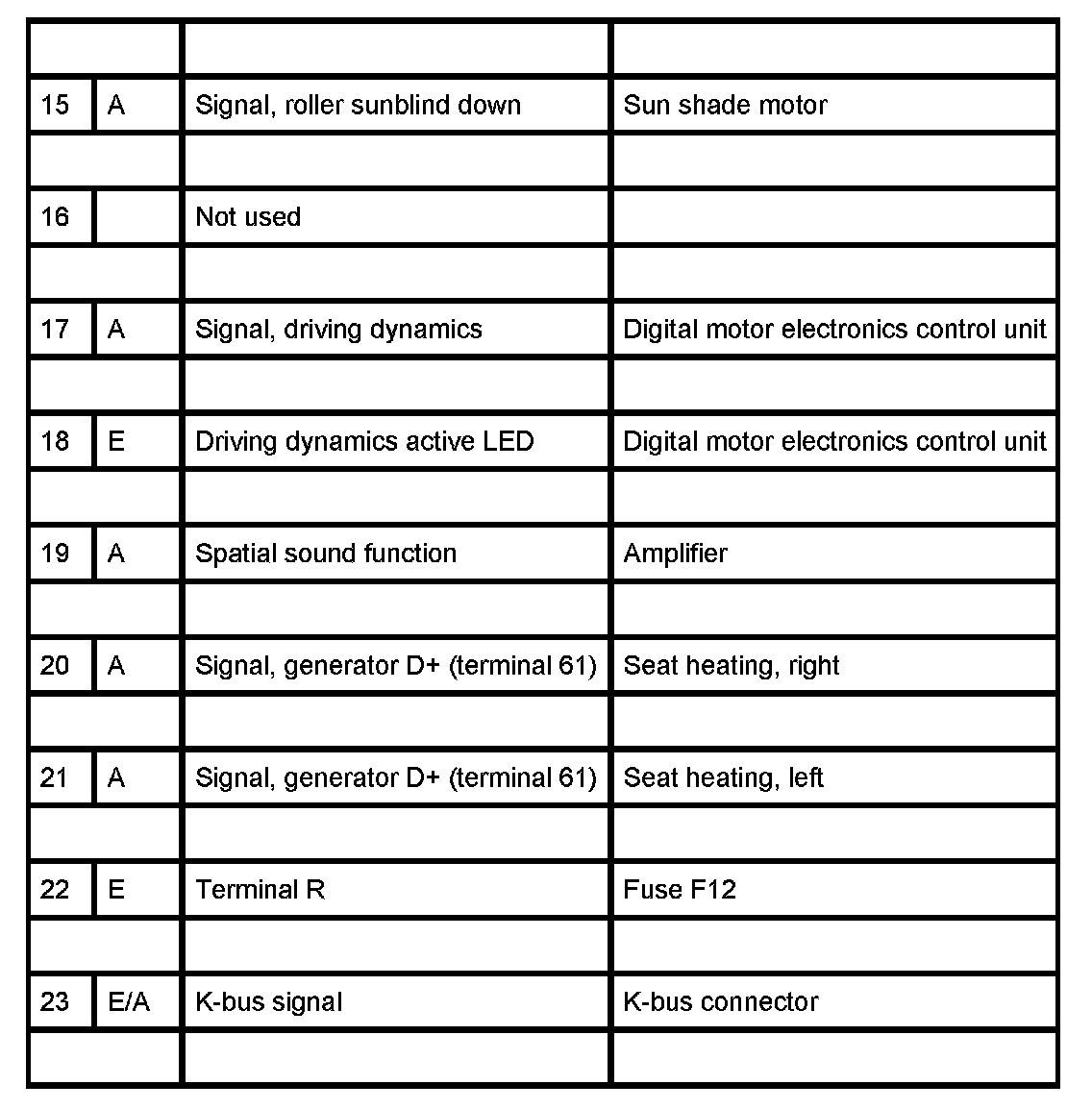

X1869 - Part 2:
