Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13648 >> X13648N9 Radio Control Unit((Hifi System (10 Speakers) or Top Hi-FI System (Harman & Kardon)) With BM on-Board Monitor From 09/

X13648N9 Radio Control Unit((Hifi System (10 Speakers) or Top Hi-FI System (Harman & Kardon)) With BM on-Board Monitor From 09/

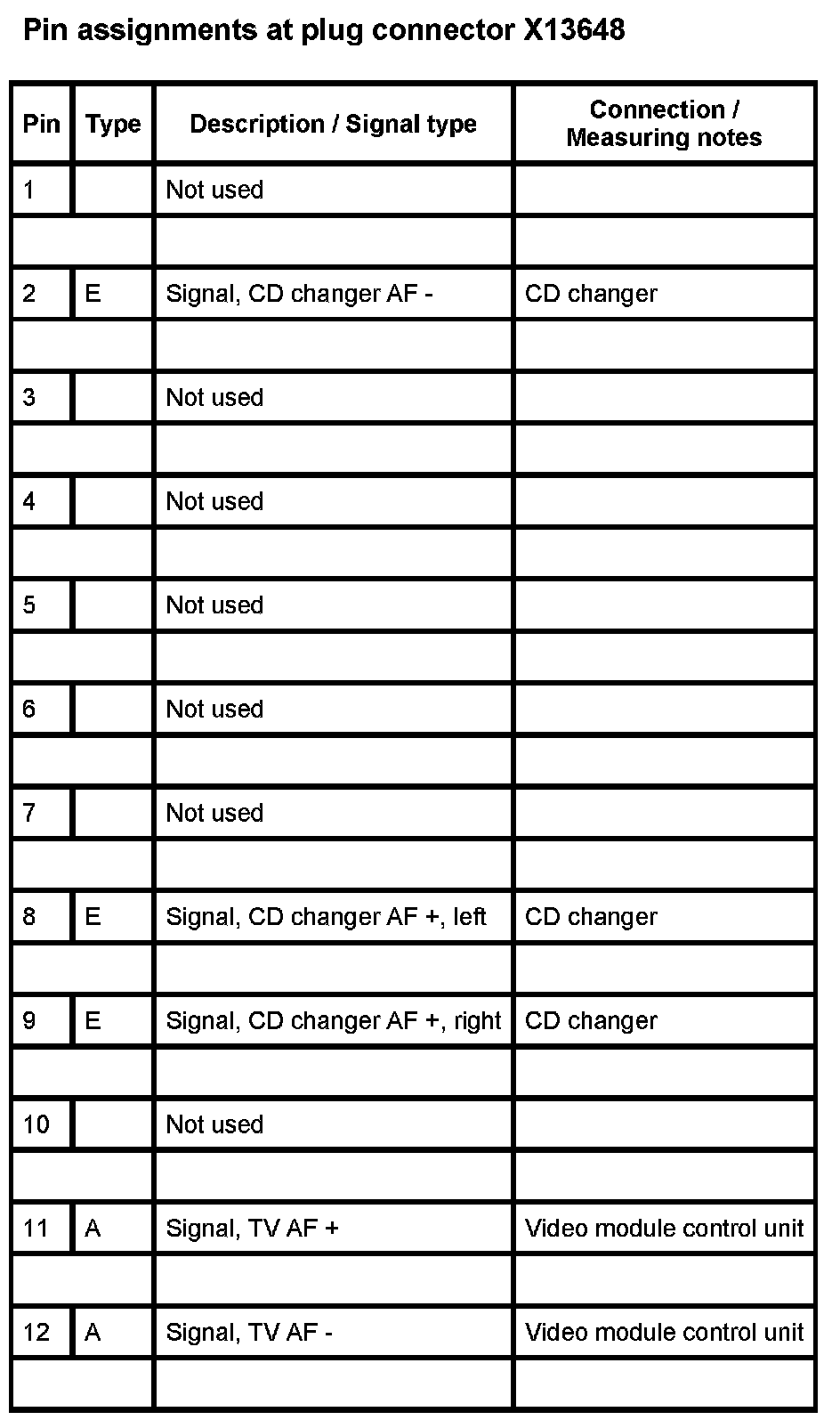

X13648:
