Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13321 >> N9 Radio Control Unit (Stereo System (6 Speakers) From 03/01 Without BM on-Board Monitor

N9 Radio Control Unit (Stereo System (6 Speakers) From 03/01 Without BM on-Board Monitor

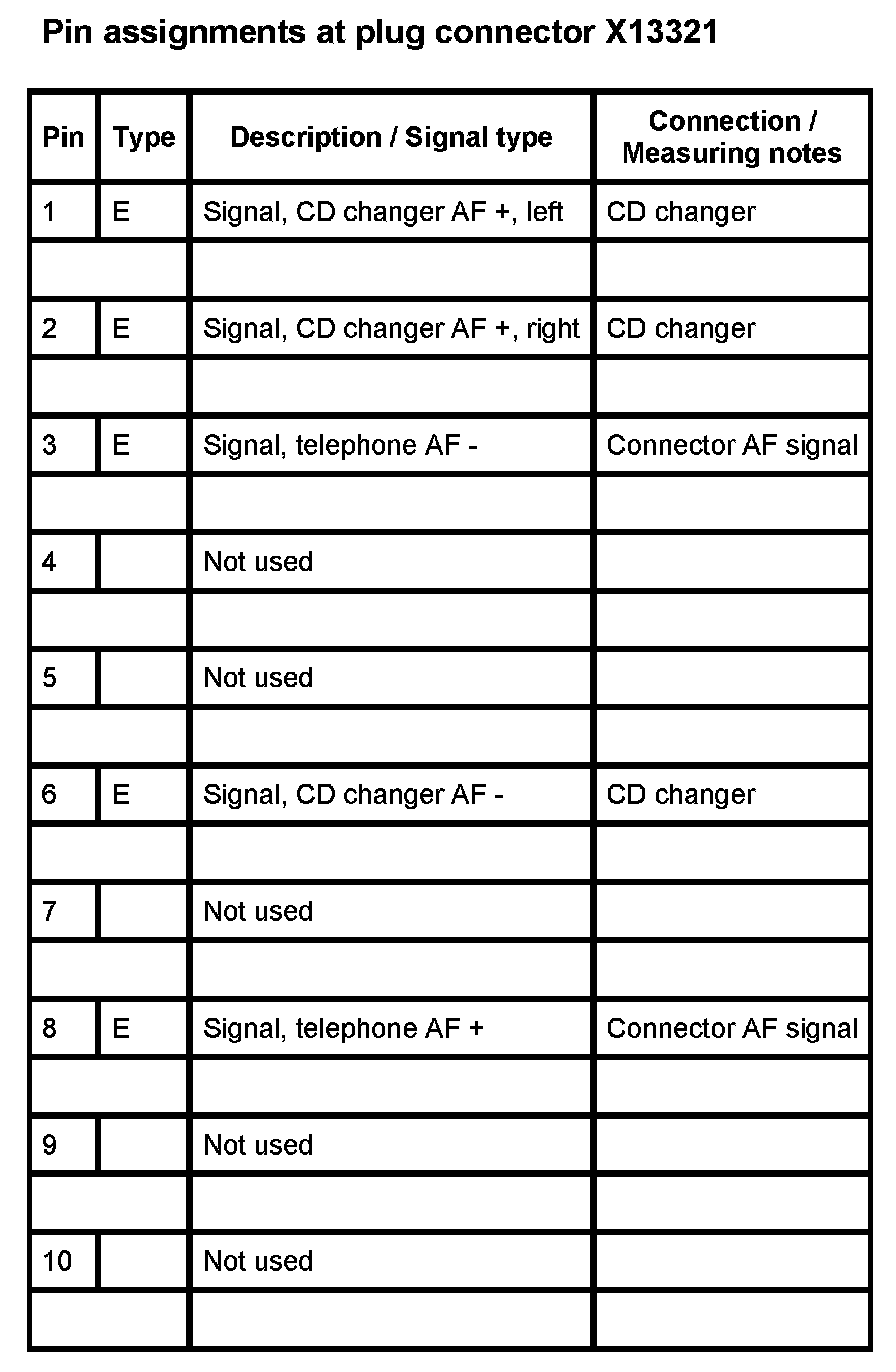

X13321:
