X11176 Adapter 614470, Storage Location C110
>>
A2 Control Module For Instrument Cluster (DME Motor Electronics MSS54 As of 03/04)
A2 Control Module For Instrument Cluster (DME Motor Electronics MSS54 As of 03/04)

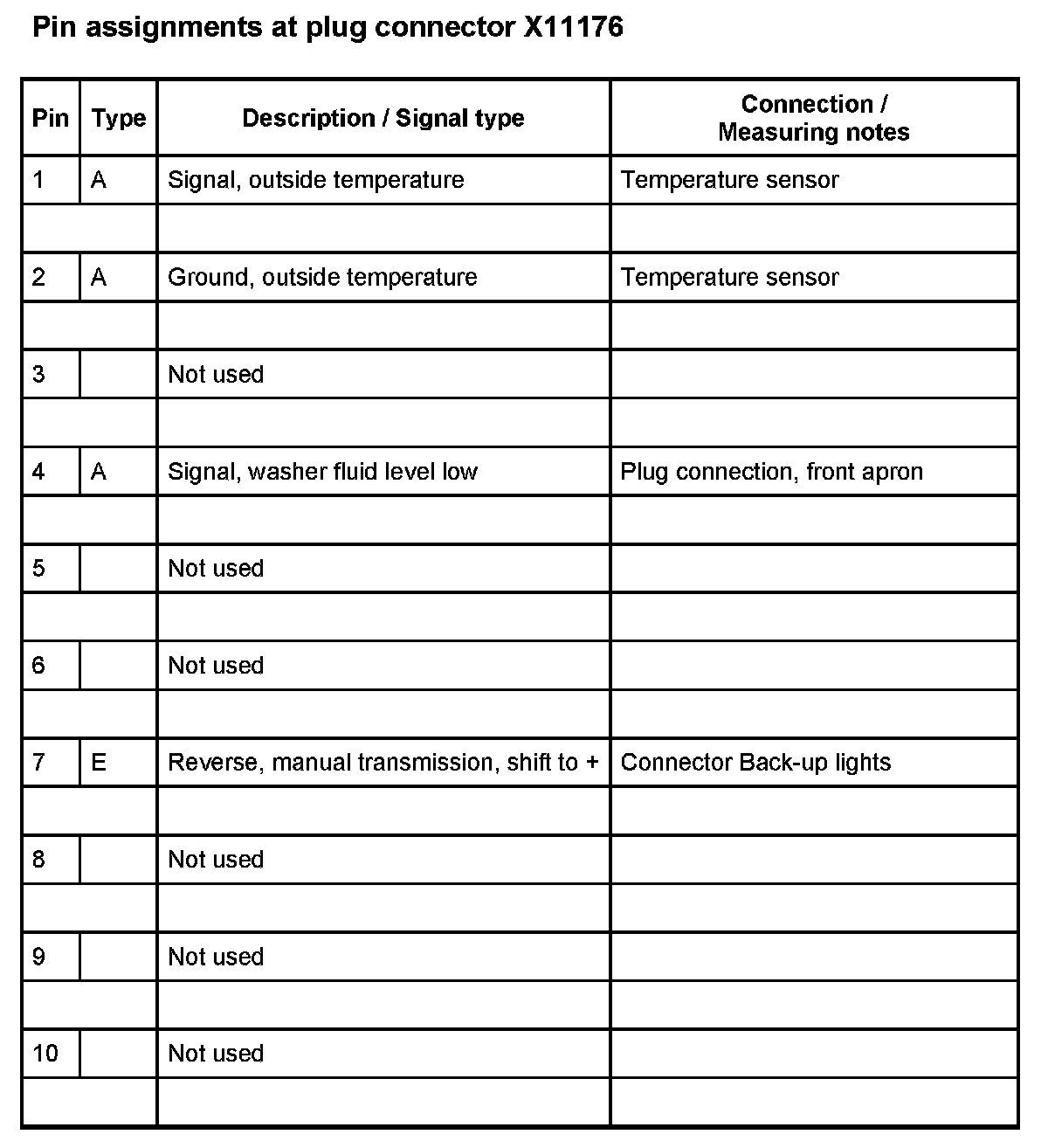

X11176 - Part 1:

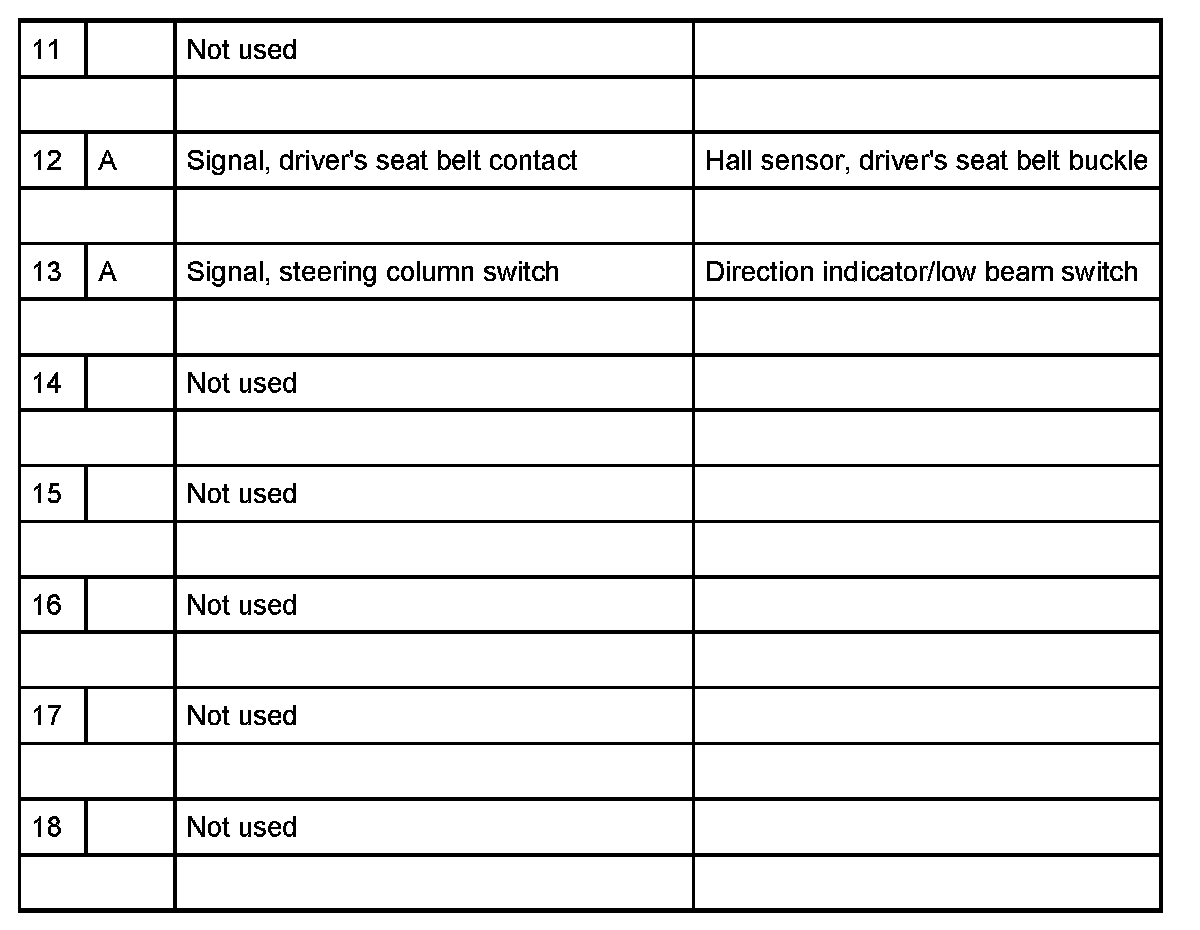

X11176 - Part 2:
