Information

The following procedures apply only to cracks found at or around the left rear mounting point for the rear axle carrier.

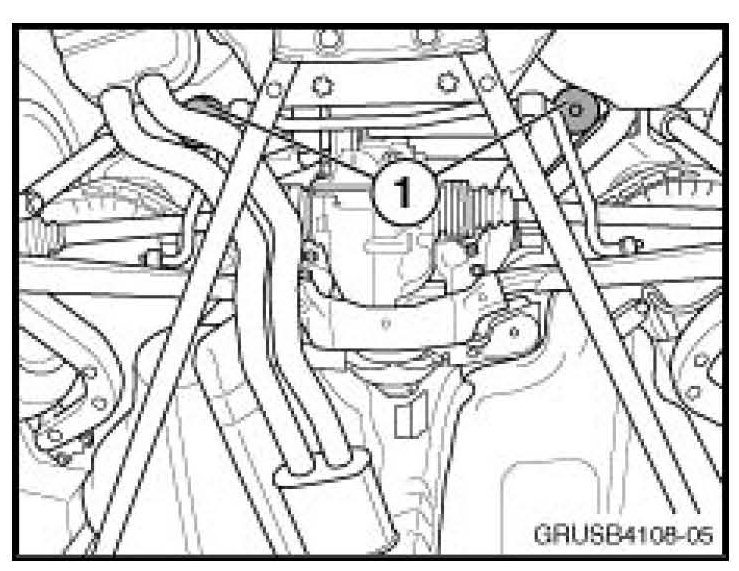

Visually inspect the left rear mounting point for the rear axle carrier (left leader for #1 illustrated). If a fracture in the sheet metal is present, the length of the crack must be measured. If multiple cracks are present, measure the longest one.

The damage identified must be documented with a clear digital photo, printed out, and included in the vehicle's file.

^ If the length is 20mm or less and the vehicle was produced prior to 10/2004, proceed to Procedure A.

^ If the length is 20mm or less and the vehicle was produced from 10/2004, proceed to Procedure B.

^ If the length is greater than 20mm, proceed to Procedure B. For technical assistance with either of the following repairs, please contact your Regional Technical Engineer.
