Body/Drivetrain - Rear Axle Support Repair Procedures: Overview
SI B41 04 08Body
October 2009
Technical Service
This Service Information bulletin supersedes SI B41 04 08 dated August 2009.
[NEW]designates changes to this revision
SUBJECT
Rear Axle Support Repair Procedure
MODEL
E46 (3 Series)
SITUATION
Under certain circumstances, a fracture in the steel body structure could form in the area around one of the rear axle carrier mounting points. As a result, a distinct clicking noise can be heard from the area of the rear axle carrier during certain driving conditions. Specifically, the noise may be heard during load reversals on the rear axle, such as when starting from a stop, engaging forward or reverse gears, or when rapidly changing gears.
A repair procedure has been developed to repair damage to the rear axle support where the rear axle carrier is secured to it. This repair procedure is not included in the repair manual in the Technical Information System (TIS).
If damage is found in the area of the left rear of the rear axle support, the procedure shown in this bulletin should be used to determine the appropriate repair procedure.
CAUSE
Details surrounding these repair procedures are not included in TIS.

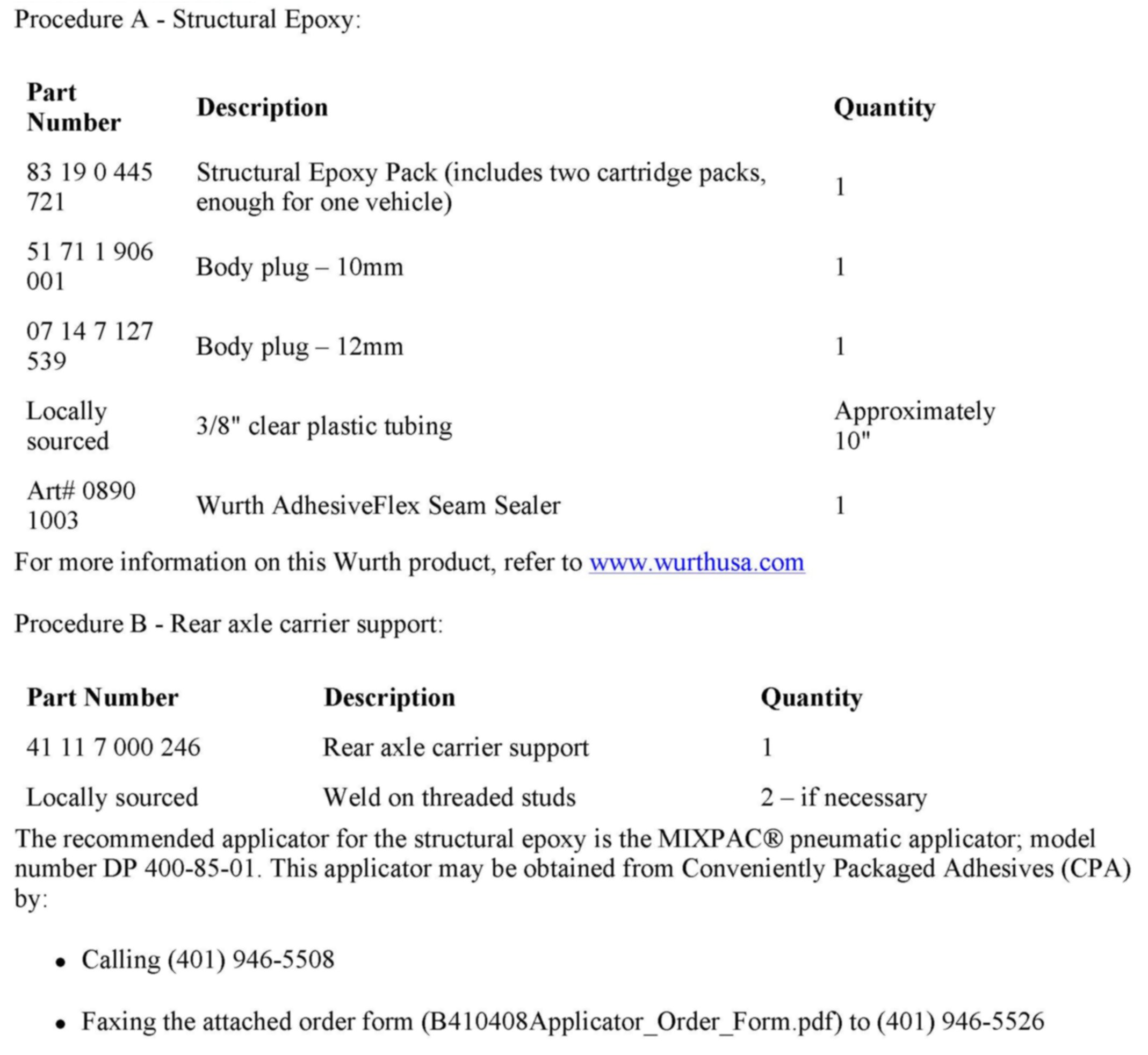

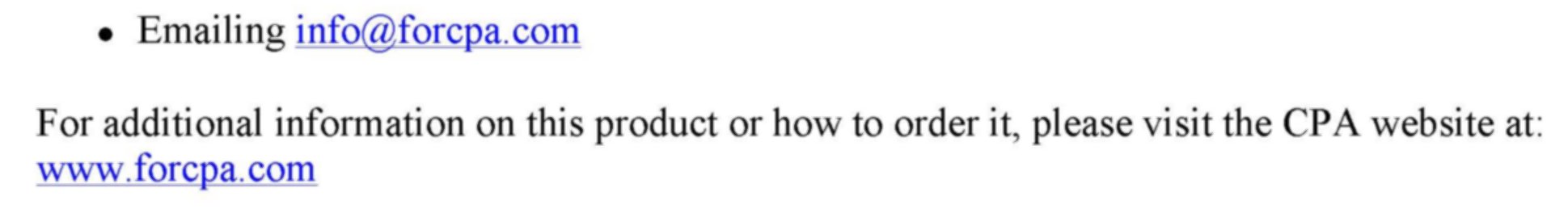

PARTS INFORMATION

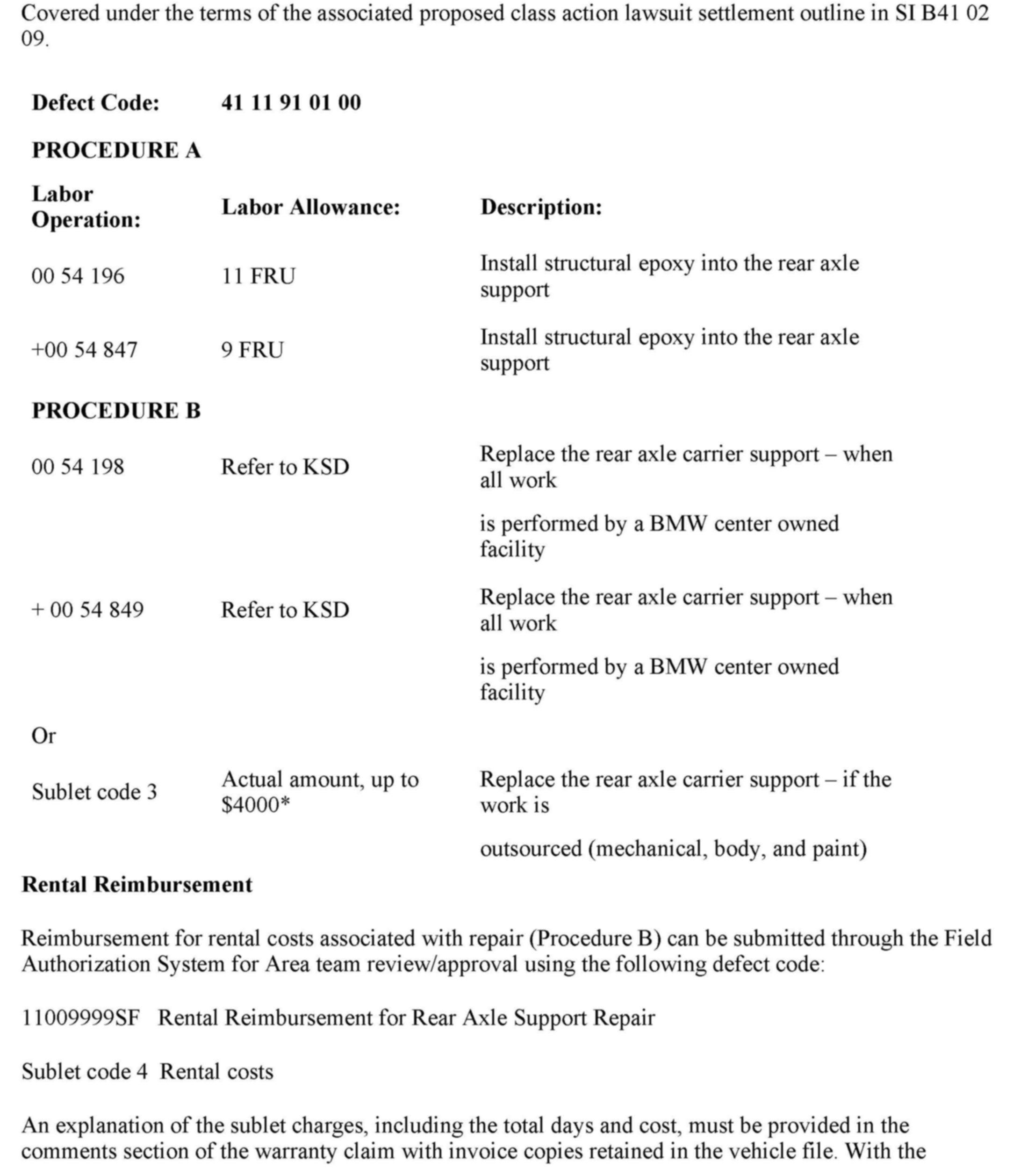

WARRANTY INFORMATION

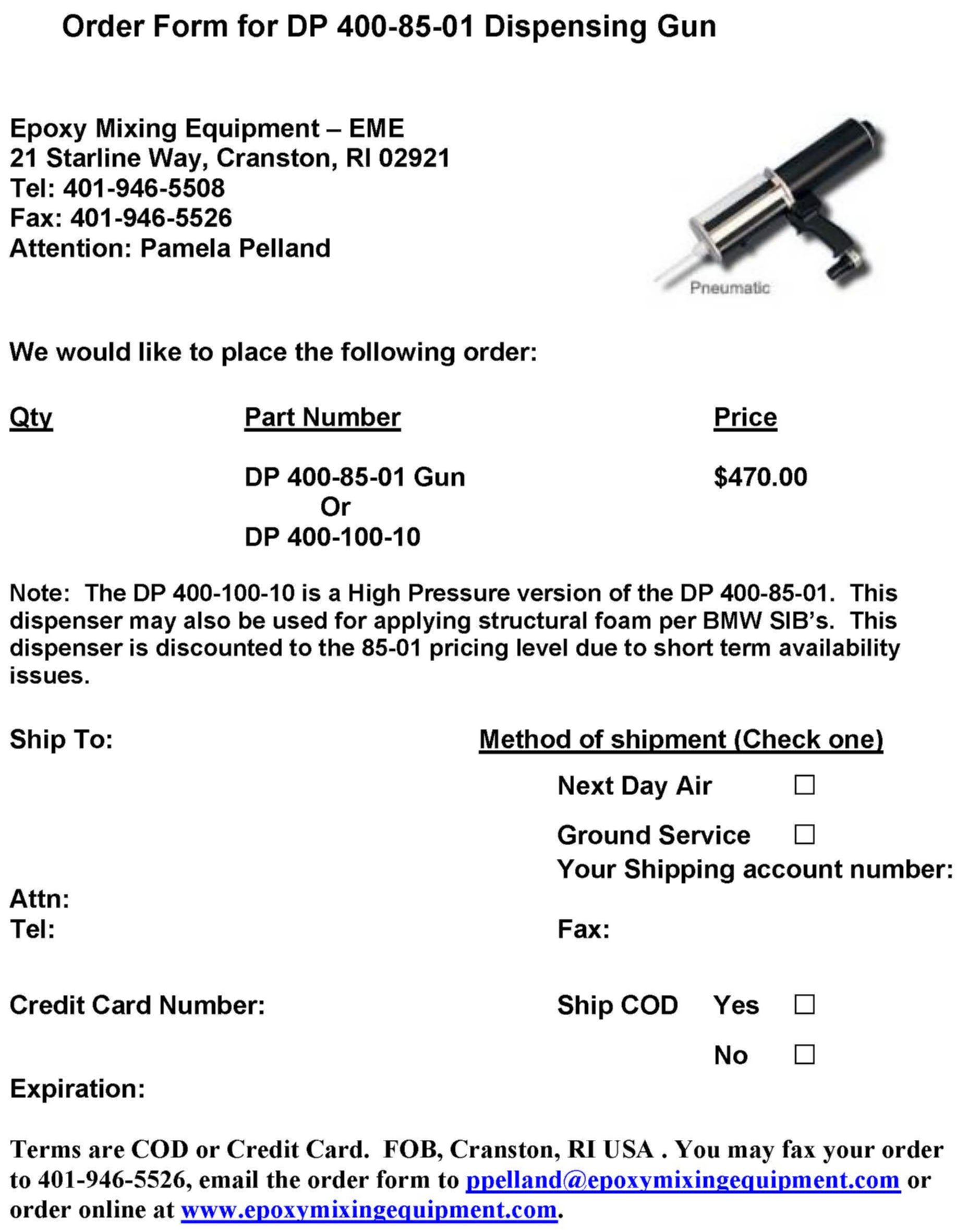

Attachment - B410408A Applicator Order Form

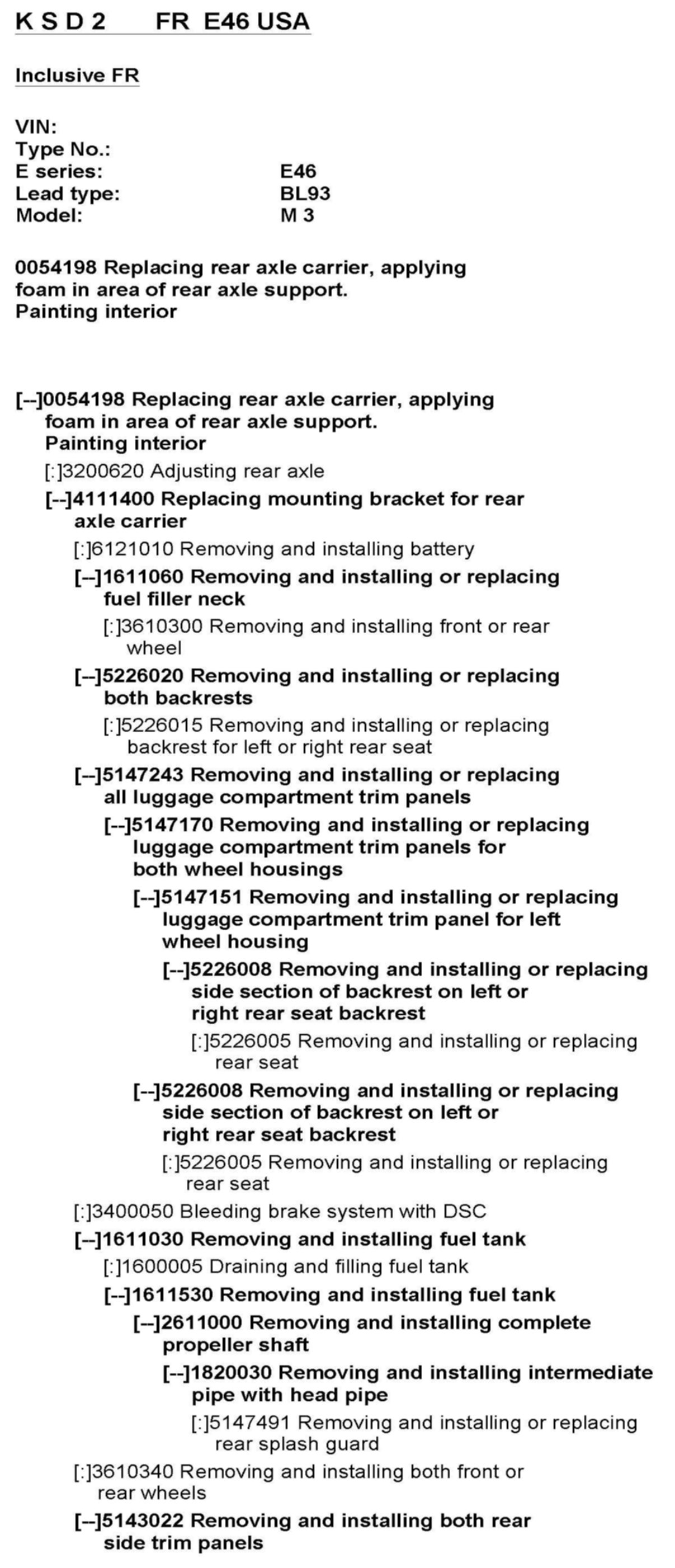

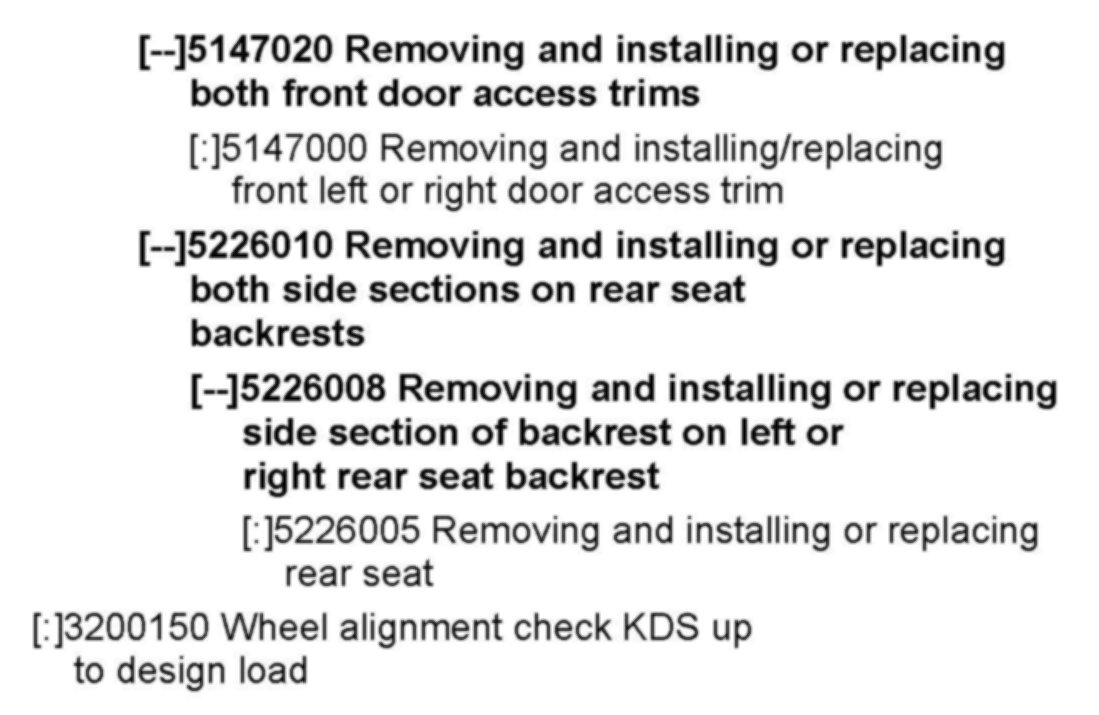

Attachment - B410408RA4111400_05-09

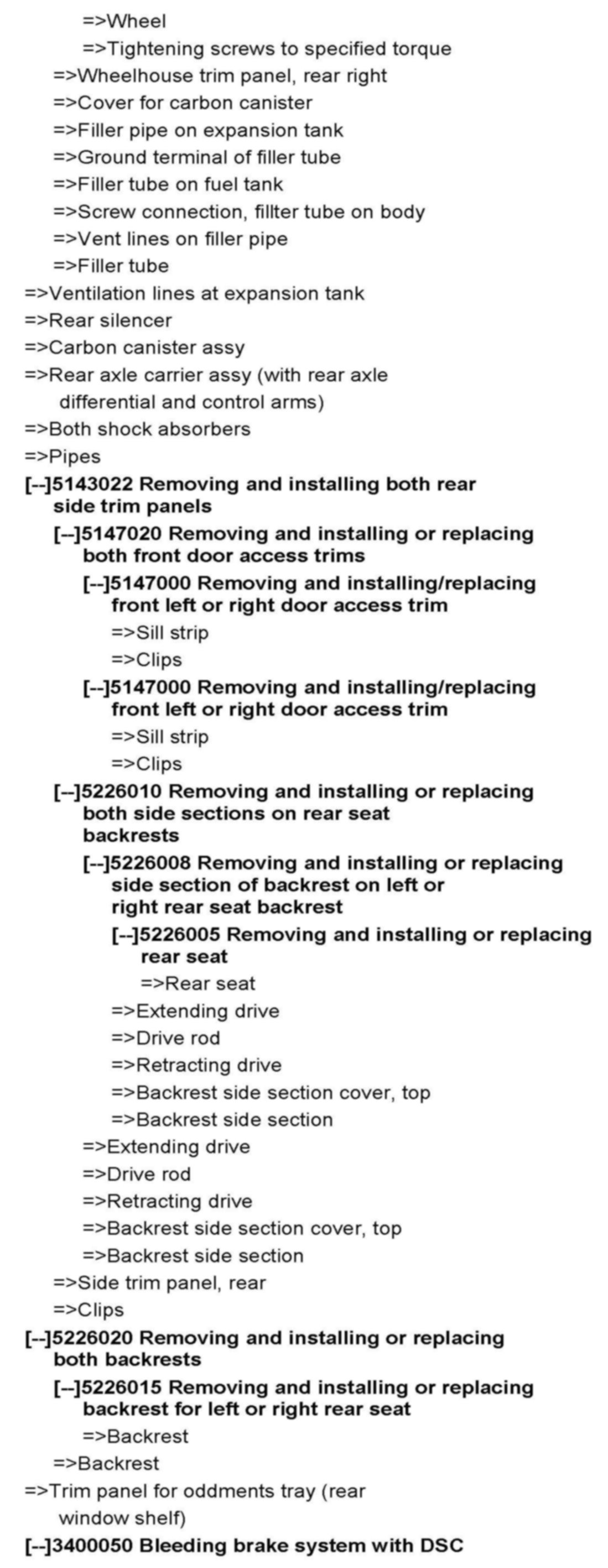

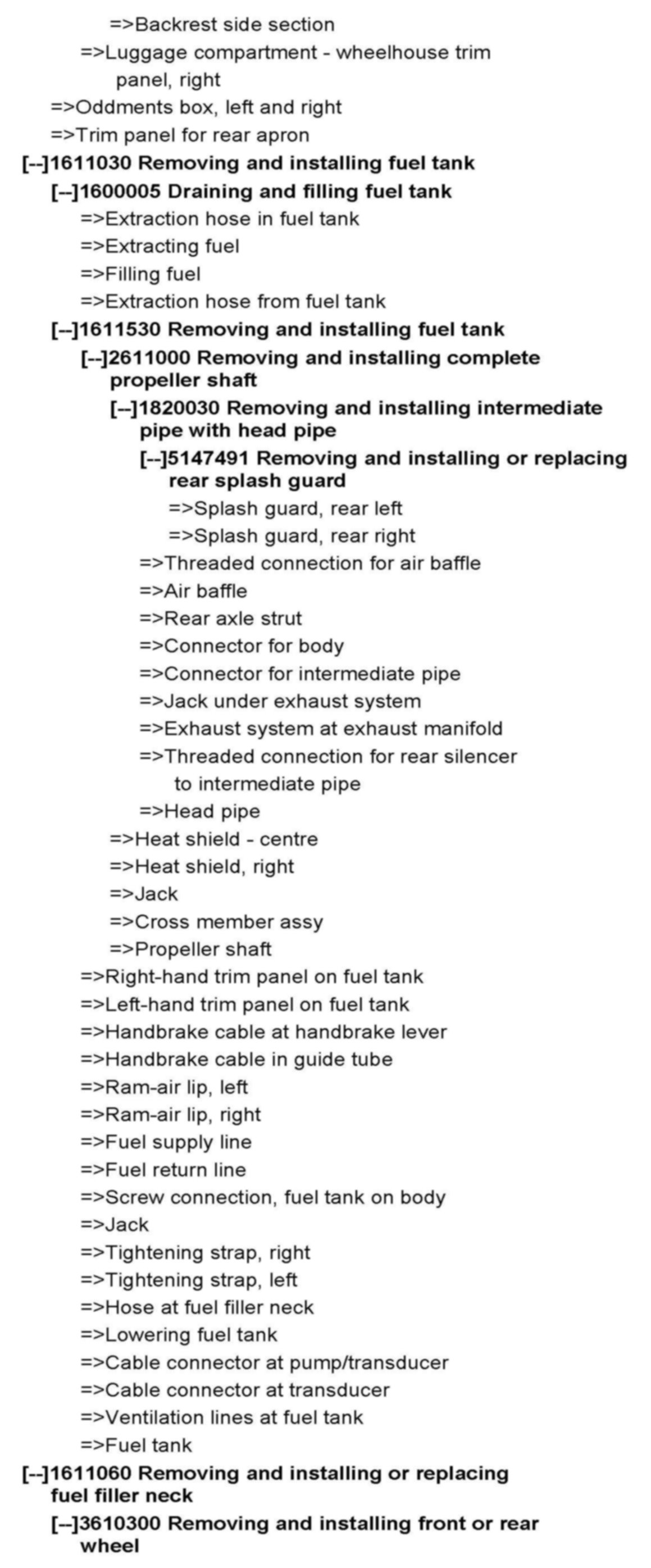

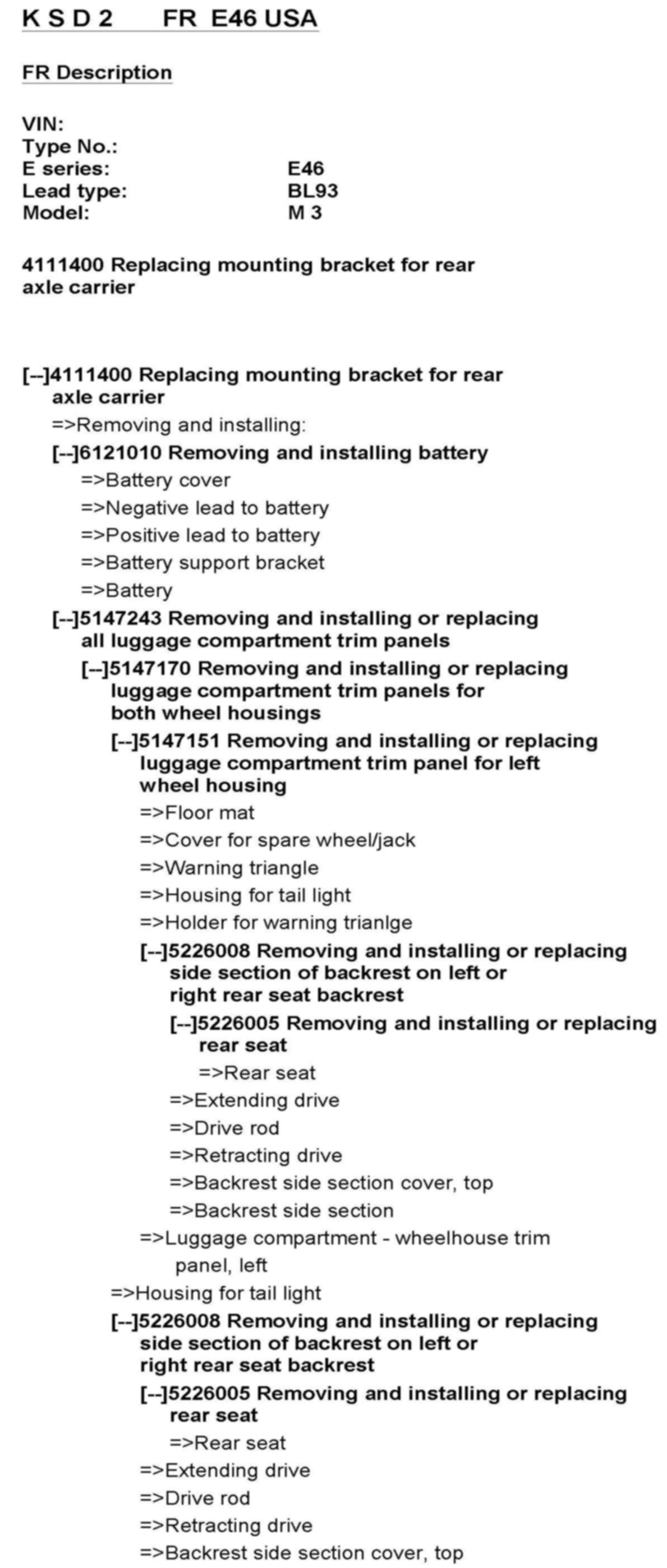

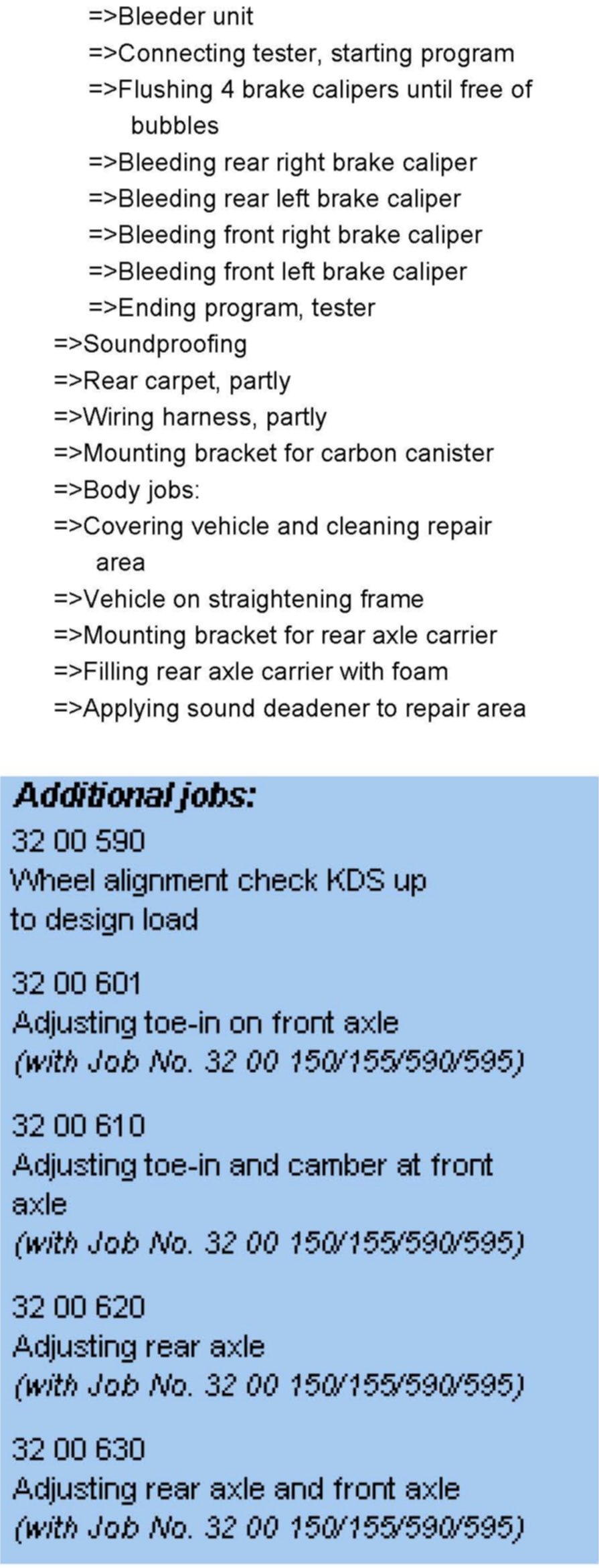

Attachment - B410408FR Description
Attachment - B410408 Labor Operations
