Sedan

41 00 Arranging Shaped Parts For Cavity Bulkhead

To reduce interior noise, certain areas of the body can have the cavities sealed. To do this, shaped parts are inserted in the cavities. The shaped parts expand to fit the contact faces perfectly by heating the body to approx. 180 °C and holding the temperature for approx. 20 minutes.

Since it is not possible during body repairs to heat the body up and maintain it at temperature for long enough, the following procedure has been defined for this eventuality.

This procedure is described in
Installation of shaped parts for cavity bulkheads, except for side member cover
Installing cavity bulkhead cover for side member
Installation of a cavity bulkhead with cavity foam

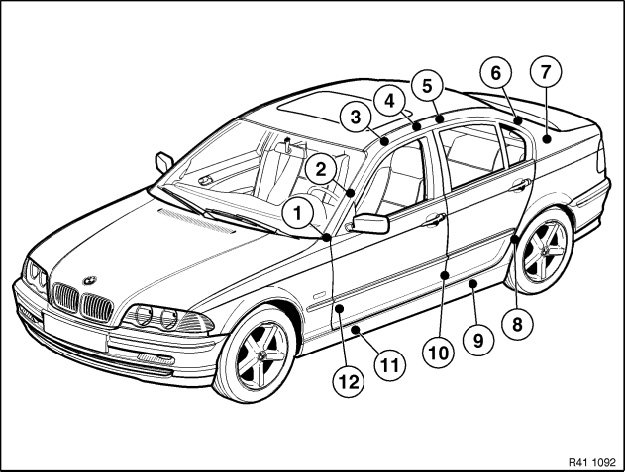

Location of shaped parts for cavity bulkhead in E46 Saloon/Sedan







Location of shaped parts is marked by points.
- (1) A-pillar, refer to Installation of a cavity bulkhead with cavity foam, Installing shaped parts for cavity bulkheads, except for cover for side member
- (2) Cowl panel, side refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (3) Roof frame, inner front and rear, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (4) Roof frame, center front, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (5) Roof frame, center rear, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (6) C-pillar, inner, refer to Installing shaped parts for cavity bulkheads, except for cover for side member

Location of shaped parts for cavity bulkhead in E46 Saloon/Sedan







Location of shaped parts is marked by points.
- (7) C-pillar, outer, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (8) Entrance, rear, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (9) Entrance, center outer,
Spare part already in expanded form Entrance, center inner, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (10) B-pillar, outer,
Spare part already in expanded form
B-pillar, inner, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (11) Entrance, front, refer to Installing shaped parts for cavity bulkheads, except for cover for side member
- (12) Reinforcement, engine support, rear, refer to Installation of a cavity bulkhead with cavity foam
