Removing and Installing/Replacing Backrest

52 24 010 Removing And Installing/Replacing Backrest

Remove rear seat.







Pull out seat belts and secure behind head restraints and to side of backrest.

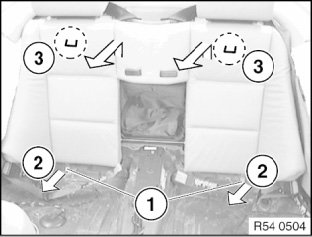

Release screws (1).
Detach tab washers (2) towards from from threaded pin and remove backrest towards top.

Installation:
Make sure backrest lugs (3) on left and right are firmly seated in partition wall.
