Removing and Installing/Replacing Release Handle on Left or Right Front Seat (Normal/Electric)



52 14 033 Removing And Installing/Replacing Release Handle On Left Or Right Front Seat (Normal/Electric)

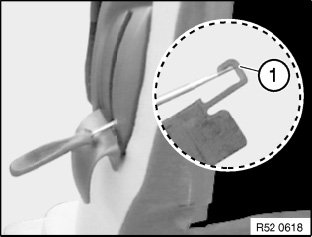

Unlock catch (1) of release lever with screwdriver and detach towards outside.

Installation:
Catches of release unit must not be damaged.
