Removing and Installing Left or Right Front Seat (Normal / Electric)

52 14 000 Removing And Installing Left Or Right Front Seat (Normal/ Electric)

NOTE: Removal with faulty gear for longitudinal seat adjustment.

WARNING:
- Observe safety regulations for handling airbag modules and pyrotechnical seatbelt tensioners.
- Incorrect or improper handling may trigger the pyrotechnical belt tensioner or side airbag and thereby cause injury.







If necessary, open convertible top.
Move front seat forwards/upwards as far as possible.
Switch off ignition!

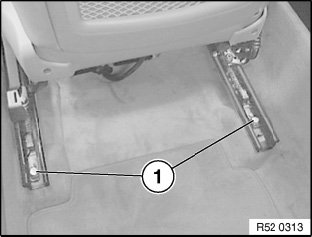

Release screws (1).
1AZ Seat to floor plate
M10 45 Nm
Note: Torque angle
90°

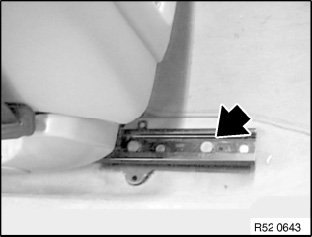

Release additional screw on left.
1AZ Seat to floor plate
M10 45 Nm
Note: Torque angle
90°

Move front seat backwards/downwards as far as possible.







If necessary, unclip protective caps upwards.

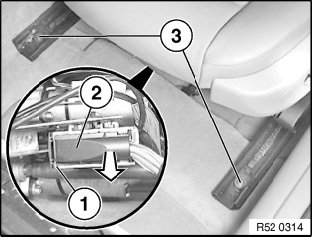

Unfasten screws (3).
Move seat runners forward so that they are flush.
Unlock lock (1) and disconnect plug connection (2).

CAUTION: Cover door sill with protective covers (risk of damage).

Lift out front seat.

Installation:
Floor carpet must not enter area between seat rails and floor panel beside screw points (grating noises).
1AZ Seat to floor plate
M10 45 Nm
Note: Torque angle
90°
