Replacing Seal For Glass Sliding/Tilting Sunroof Lid

54 12 117 Replacing Seal For Glass Sliding/Tilting Sunroof Lid

Remove glass slide/tilt sunroof lid.

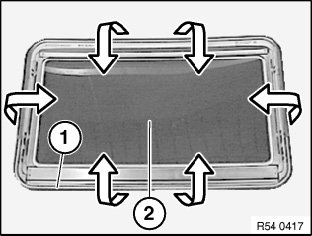

Remove seal (1) from glass slide/tilt sunroof lid (2).







Installation:

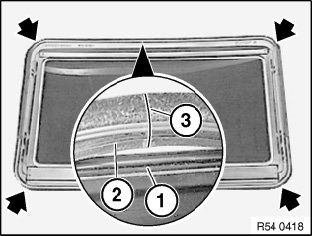

Coat guide channel (1) and seal (2) with soapy water.
Begin installation at rear center, with seal (3).
Do not pull seal too tightly in radii (leakage).
