Convertible Top Hydraulic Fluid: Service and Repair

54 34 ... Topping Up/extracting Fluid, Checking Fluid Level

Necessary preliminary tasks:
- Follow instructions for repairing hydraulic system.

Check fluid level.
Stow convertible top, close convertible top compartment lid.
Remove hydraulic unit without detaching lines.
If necessary, detach soundproofing.







Fluid level must be within marking when unit is stationary.
1. Maximum
2. Minimum

Top up fluid.
Stow convertible top, close convertible top compartment lid.
Remove hydraulic unit without detaching lines.
If necessary, detach soundproofing.

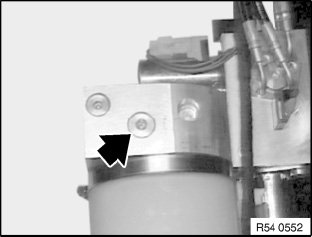

Open fluid filler plug.
Lay hydraulic unit horizontally and pour in required amount of fluid from fluid bottle.
Check fluid level in the meantime.

Installation:
5AZ Oil filler plug to hydraulic unit 11 Nm

Extract fluid:
Stow convertible top, close convertible top compartment lid.
Remove hydraulic unit.







Open fluid filler plug.
Lay hydraulic unit horizontally and allow fluid to flow out.

Installation:
5AZ Oil filler plug to hydraulic unit 11 Nm
