Convertible Top Frame: Service and Repair



54 31 ... Removing And Installing/Replacing Convertible Top Mounting Bracket

Necessary preliminary tasks:
- If necessary, remove convertible top
- Remove convertible top compartment lid lock

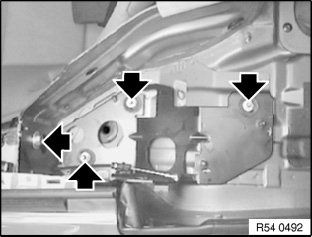

Release nuts and remove mounting bracket towards top.
