Replacing Convertible Top Compartment Lid

51 17 061 Replacing Convertible Top Compartment Lid

Remove antenna amplifier from convertible top compartment lid.
Remove convertible top compartment lid.
Remove trim from convertible top compartment lid.







NOTE:

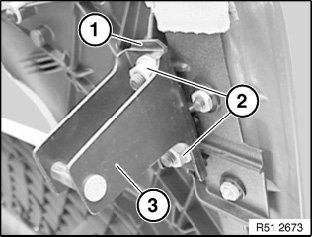

Make a note of number of adjustment shims (1).
Release nuts (2) on left/right and remove striker (3).

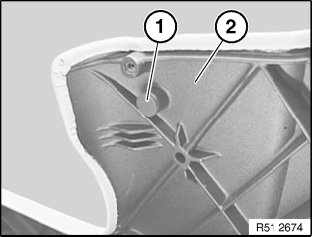

Remove rubber stop (1) on left/right from compartment lid (2).

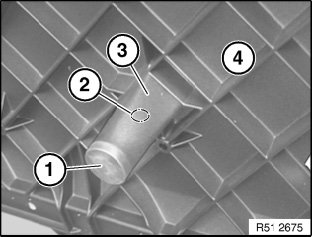

Remove rubber stop (1) on left/right from compartment lid (4).
Release screw (2) on left/right and remove buffer stop (3) from compartment lid (4).
