Removing and Installing/Replacing Left or Right Convertible Top Compartment Lid Lock

51 25 032 Removing And Installing/replacing Left Or Right Convertible Top Compartment Lid Lock

Remove upper section of side trim panel at rear.







Unfasten screws.

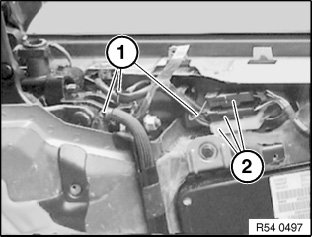

Release corresponding cable tie (1) and disconnect plug connection (2).

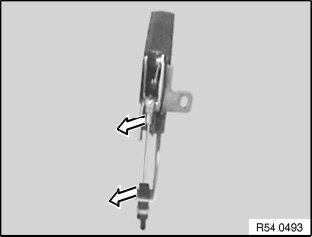

Take out convertible top compartment lid lock as far as possible.







Unclip cable.

Installation:
Adjust convertible top compartment lid lock.
