Handle

Removing and installing or replacing handle for convertible top cover lock






Removing handle:
- Open door windows slightly.
- Unlock convertible top and raise slightly (if necessary over dead center).

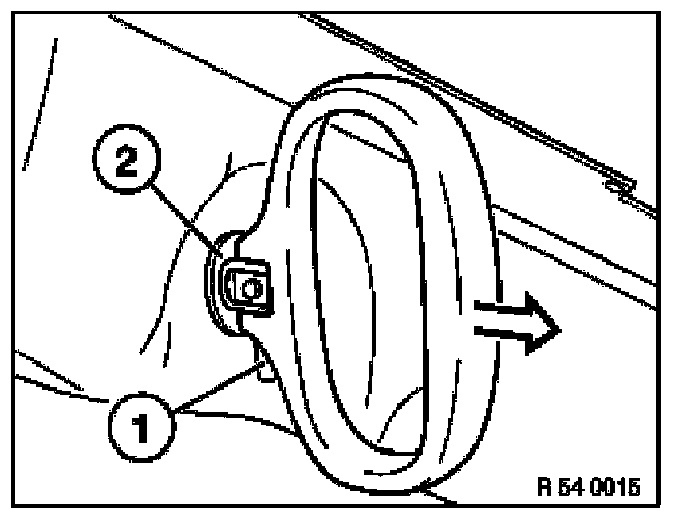

- Release screw (1).
- Remove handle.
- Detach or unclip rosette (2).

Installation:
- Make sure handle is in correct folding position (towards rear).
- To feed in screw, forcefully press handle upwards.
