Removing and Installing/Replacing Rear-View Mirror on Left or Right Front Door

51 16 000 Removing And Installing/Replacing Rear-view Mirror On Left Or Right Front Door

Partly remove cover (anti-trapping protection) at front from inside of door window frame.







Version with loudspeaker:
Unfasten plug connection (1).
Release screws (2) and remove speaker
(3).
Release screws (2) and (4).

Installation:
1AZ Mirror to front door 6 Nm

Check function.

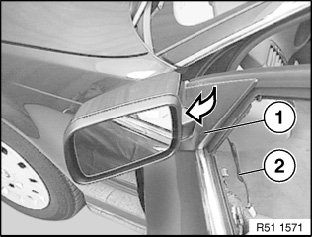

Remove rearview mirror (1) and feed out cable (2).
