Removing and Installing/Replacing Retaining Ring on Left or Right Door Mirror



51 16 045 Removing And Installing/Replacing Retaining Ring On Left Or Right Door Mirror

Necessary preliminary tasks:
- Remove housing (cover) on door mirror.

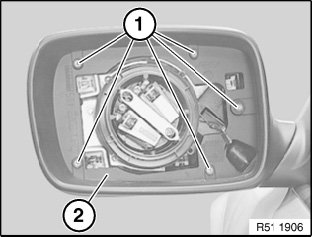

Release screws (1).
Remove retaining ring (2).







Installation:

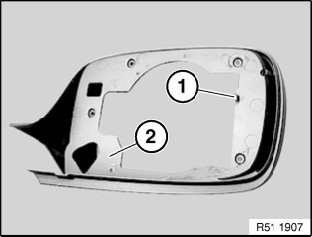

Guide (1) on retaining ring (2) must not be damaged.
