Removing and Installing/Replacing Housing (Cover) on Left or Right Door Mirror

51 16 040 Removing And Installing/Replacing Housing (Cover) On Left Or Right Door Mirror

Necessary preliminary tasks:
- Remove mirror glass







NOTE:

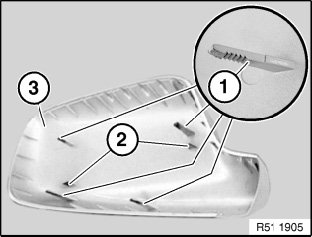

- The housing is secured without play by the four multitooth catches (2) in the clips (3).
- Unlock catches (1 and 2) with a screwdriver.

Pull on housing and unlock all four clips (3) in succession.

Installation:
Replace all clips (3).







Installation:
Catches (1) and guides (2) on housing (3) must not be damaged.
