51 21 146 Replacing Locks For Simultaneous Closing With EWS Control Module

51 21 146 Replacing Locks For Simultaneous Closing With EWS Control Module

Replace locks for simultaneous closing. Service and Repair

Remove panel for pedals.

- Disconnect battery negative lead
- Disconnect plug connection on control module for electronic immobilizer and remove control module
- Install new control module
- Connect battery negative lead

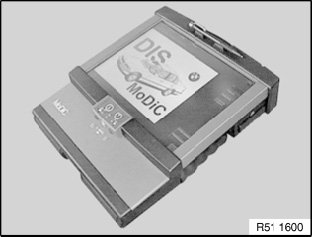

- Connect DIS Tester or MoDiC III
- Select model
- Select coding program
- Read out data
- Code EWS control module
- Terminate coding program
- Carry out function check
