Replacing Rear Left or Right Side Trim Panel (Coupe)

51 43 005 Replacing Rear Left Or Right Side Trim Panel (Coupe)

Remove armrest on rear side trim panel.







If necessary, release locking washers (1) and remove insulating mat (2).

Version with HiFi system:
The new side trim panel is provided with a marking for the speaker.
Create opening for HiFi speaker.







Installation:

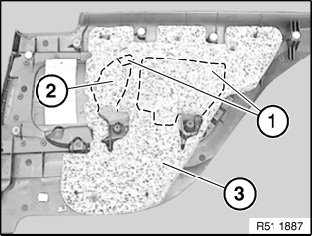

If necessary, cut out perforated areas (1) or (2) of insulating mat (3).
1. Version with side airbag
2. Version with speaker
