Replacing Upper Section of Side Trim Panel At Rear (Convertible) Left or Right

51 43 013 Replacing Upper Section Of Side Trim Panel At Rear (Convertible) Left Or Right

Necessary preliminary tasks:
- Remove side trim upper section at rear

NOTE: Cover for frame aperture: treat guide with protecting spray.

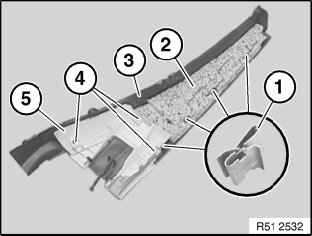

Release screws (4) and remove cover (5) for frame aperture.

Installation:
If necessary, replace faulty clips (1) on upper section of side trim panel (3).
Acoustic insulation (2) must not be damaged.

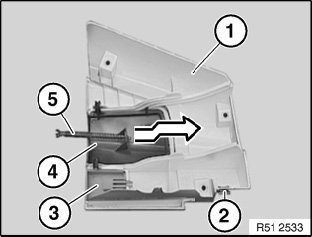

Replacing cover (1) for frame aperture:
- Push out frame outlet flap (4), pressing guide apart somewhat in so doing.
- Disconnect spring (5).
- Pull off cover (3) for hardtop frame completely to rear.
- Replace clip (2).

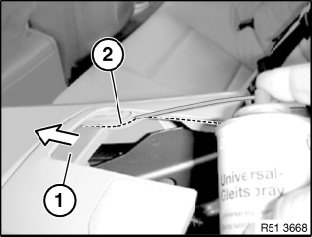

Treating guide (2) of cover for frame aperture with protecting spray:
- Press frame outlet flap (1) towards rear.
- Clean contact surfaces (2) to remove all traces of dirt.
- Treat contact surfaces (2) (left/right) with BMW Universal protecting spray.
- Move frame outlet flap (1) several times (carry out function check).
- If necessary, clean trim panel parts to remove all traces of spray dust.
