Replacing Insert on Side Trim Panel (Convertible), Rear Left or Right

51 43 115 Replacing Insert On Side Trim Panel (Convertible), Rear Left Or Right

Remove insert on side trim panel at rear.

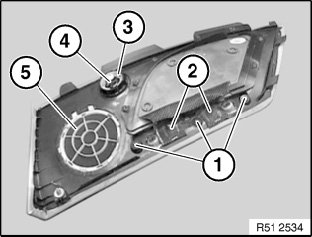

Release screws (1) and (2) and remove armrest.
Release screw ring (3) and remove tweeter (4).
Lift out speaker frame (5).
Replace clip.
Version with hi-fi speaker:
If necessary, make opening for hi-fi speaker.
