Removing and Installing/Replacing Upper Section of Armrest, Rear Left or Right (Convertible)

51 43 063 Removing And Installing/replacing Upper Section Of Armrest, Rear Left Or Right (convertible)







NOTE: The upper section shown in the illustration is only for viewing purposes and is not identical to the actual upper section in the vehicle.

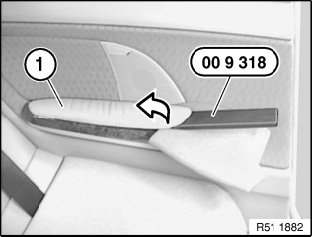

Place a clean cleaning cloth between special tool 00 9 318 and armrest (risk of damage).
Lever out upper section (1) at front with special tool 00 9 318 (universal wedge) towards top.
Unclip rest of upper section (1) towards top.







Installation:
Plastic pins (1) of upper section (2) must not be damaged.







Installation:

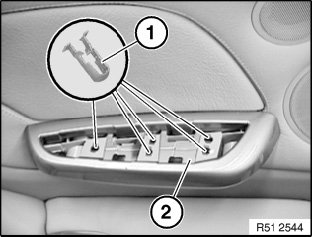

During removal, clips (1) can be pulled out with the upper section.
If necessary, replace faulty clips (1) on armrest (2).
All clips (1) must be located in fixtures of armrest (2).
