Removing and Installing/Replacing Lower Section of Side Trim Panel At Rear Left or Right (Convertible)

51 43 015 Removing And Installing/replacing Lower Section Of Side Trim Panel At Rear Left Or Right (convertible)

Remove upper section of side trim panel at rear.
Remove rear seat backrest.







Open front door.
Unclip clips (1).
Feed lower section of side trim panel (2) out of entrance strip (3).







Installation:

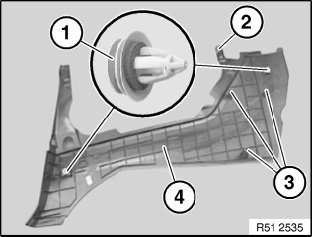

If necessary, replace faulty clips (1) without seal.
Guide (2) and spacer (3) of side trim panel (4) must not be damaged.
