Removing and Installing Insert In Side Trim Panel (Convertible), Rear Left or Right

51 43 114 Removing And Installing Insert In Side Trim Panel (Convertible), Rear Left Or Right

WARNING:
- Version with side airbag:
- Follow safety instructions for working on cars with airbag systems.

CAUTION: Do not use any sharp-edged tools to remove the panel - risk of damage to airbag.

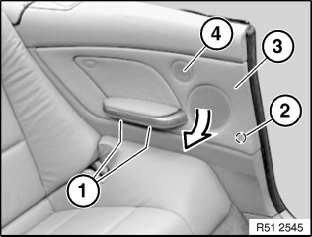

Release screws (1).
Unclip clip (2) and lift out side trim panel (3) towards front/bottom.
If necessary, disconnect plug connection for tweeter (4) and remove side trim panel (3).

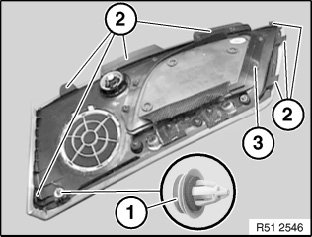

Installation:
If necessary, replace faulty clip (1) without sealing washer.
Guides (2) on insert (3) must not be damaged.
